ADDRESS ■Introduction
► Description:
LHS0217PT Hydroseeder with Honda gasoline engine has an engine design of a 23 H. P. BRIGGS STRATTON gasoline engine made in the USA that is directly coupled to a 3″ X 1.5″ high volume, high pressure centrifugal pump and oil gear pump that drives an aggressive mixing paddle. The platform and tower gun are standard equipment. Standard equipment includes 60m of DN32 hose with free flow couplings mounted on hose holders on the side of the tank. It also includes three nozzles ( 1 wide hydro seeding nozzle, 1 straight distance nozzle, and 1 trim nozzle). The spray distance of the tower gun is approximately 28m.
► Application:
► Features:
5. Hose Discharge: The discharge hose is lightweight and easy to handle. Jets feature quick couplers for hassle-free servicing if problems arise. A quick disconnect mechanism for the discharge hose and a bale tray for easy loading are also included.
LHS0217PT Hydroseeder with Honda gasoline engine is an ideal machine for those who need to spray difficult materials and heavy slurries. It is a unit that combines the best features of both jet and mechanical hydroseeders. The aggressive paddle agitation allows you to load full bales without the need to break them up and allows quick mixing of thick slurries of hydro seeding material.
LHS0217PT Hydroseeder with Honda gasoline engine has an engine design of a 23 H. P. BRIGGS STRATTON gasoline engine made in the USA that is directly coupled to a 3″ X 1.5″ high volume, high pressure centrifugal pump and oil gear pump that drives an aggressive mixing paddle. The platform and tower gun are standard equipment. Standard equipment includes 60m of DN32 hose with free flow couplings mounted on hose holders on the side of the tank. It also includes three nozzles ( 1 wide hydro seeding nozzle, 1 straight distance nozzle, and 1 trim nozzle). The spray distance of the tower gun is approximately 28m.
The high pressure centrifugal pump is capable of operating the unit independently as an agitator(self-circulation) and machine. A gear pump relies on the hydraulic system to drive the paddles to rotate. This drive is very simple and reliable and easy to service if there ever is a problem.
The polyethylene used in the tank ensures that hydroseeder does not rust. LHS0217PT Hydroseeder with Honda gasoline engine is designed so that the rugged poly tank serves only as a carrier for the slurry. Besides, the bearings and agitator shaft are supported completely by heavy structural steel supports. There is no stress whatsoever on the tank and the entire mixing system would run without the tank even being present. This mixing system is made to last and to have the lowest maintenance requirements of any unit on the market.
LHS0217PT Hydroseeder with a Honda gasoline engine is a versatile and reliable piece of equipment suitable for a variety of hydroseeding application projects, making it a valuable asset for landscaping, erosion control, and reclamation projects.
► Features:
1. Polyethylene Tank: The tank, constructed from polyethylene, serves solely as a carrier for fluids. It offers the advantage of quick and easy cleanup and is completely resistant to rust.

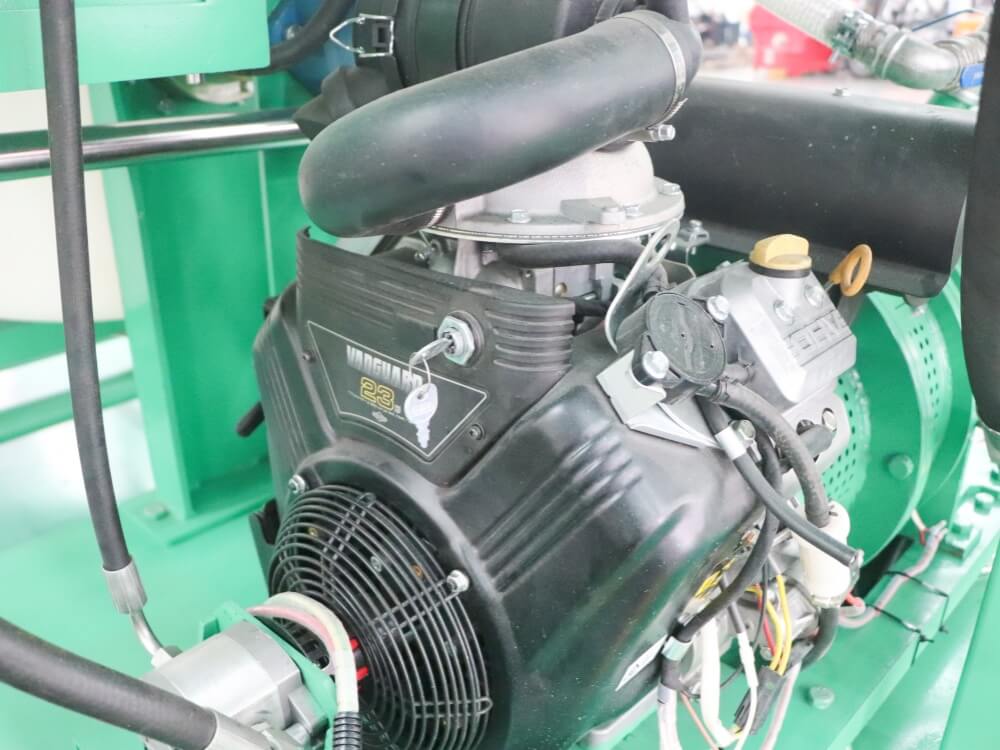

2. Powerful Engine: The power unit is equipped with a BRIGGS STRATTON 23 hp engine, proudly made in the USA, and features an electric start for convenience. An electromagnetic clutch controls the centrifugal pump's operation, providing power to the hydraulic system.
3. Efficient Paddles: The hydraulic motor drives the paddles, enabling positive and negative mixing, resulting in more uniform material blending and elimination. The paddles are well-supported by a robust steel frame, minimizing stress on the tank. This agitation system quickly and thoroughly mixes various materials without the need to break them up. Jets are equipped with quick couplers for easy servicing in case of issues.
4. High-Performance Centrifugal Pump: The 3" X 1.5" centrifugal pump is controlled by an electromagnetic clutch. It has three outlets: for the tower gun, self-circulation, and DN32 hose. The self-circulation system ensures full material mixing, providing long injection distances, high efficiency, and enhanced safety. Maintenance and replacement of vulnerable parts are straightforward and convenient.
5. Hose Discharge: The discharge hose is lightweight and easy to handle. Jets feature quick couplers for hassle-free servicing if problems arise. A quick disconnect mechanism for the discharge hose and a bale tray for easy loading are also included.
6. User-Friendly Control System: The hydroseeder is equipped with a hydraulic control system and an electrical control system, ensuring safe and straightforward operation. It features a single button for the pump and a lever for controlling the paddles.
These product features collectively make the hydroseeder not only efficient but also easy to use and maintain, offering a reliable solution for various fluid-carrying and mixing tasks.
■Product Details

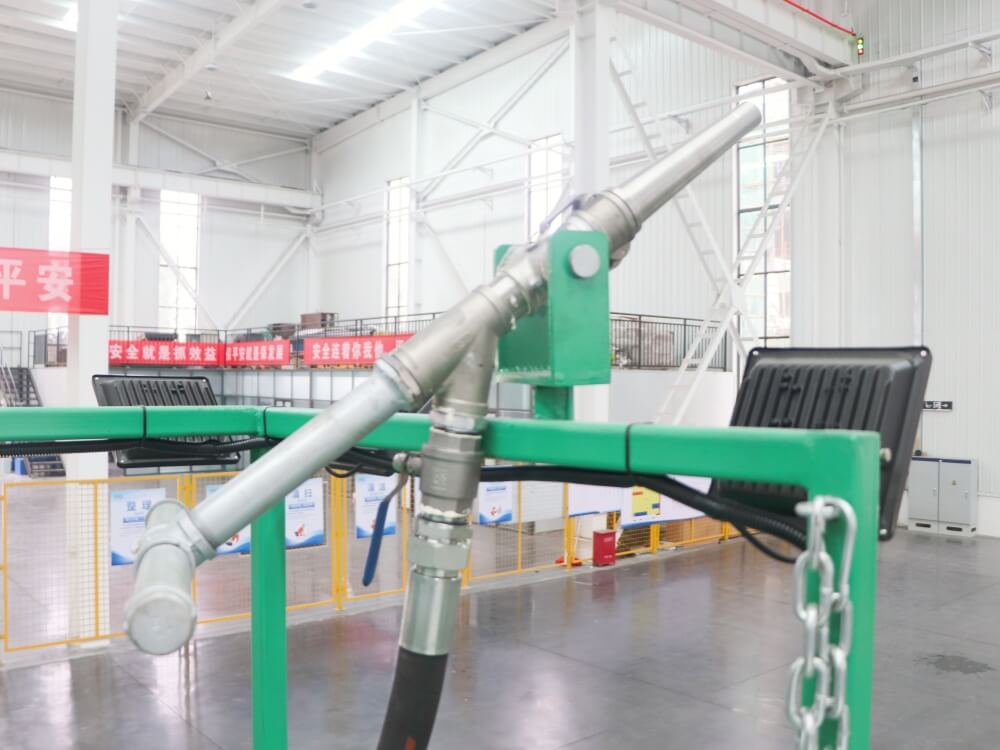

Town gun

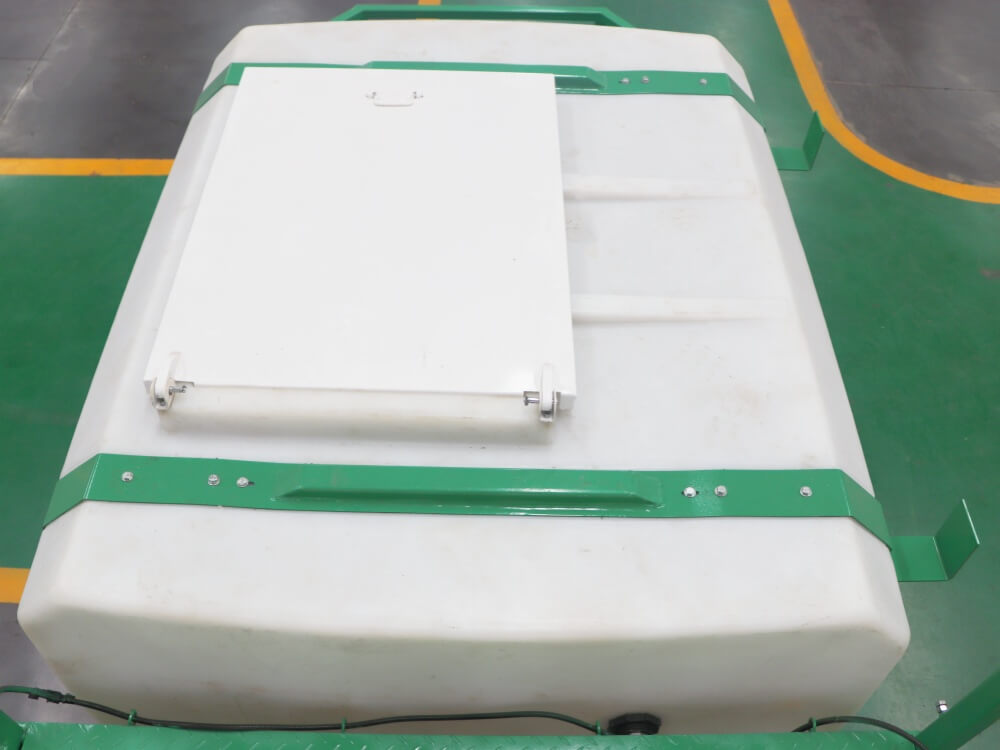

Poly tank
Platform
.jpg)
Mixing system

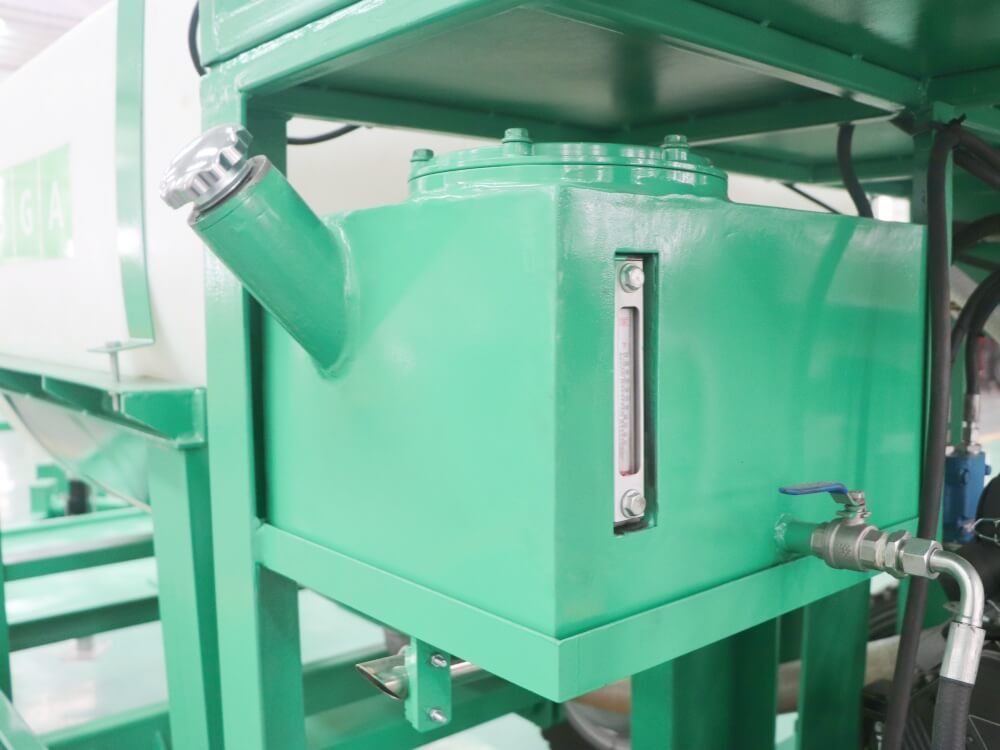

Hydraulic tank
.jpg)

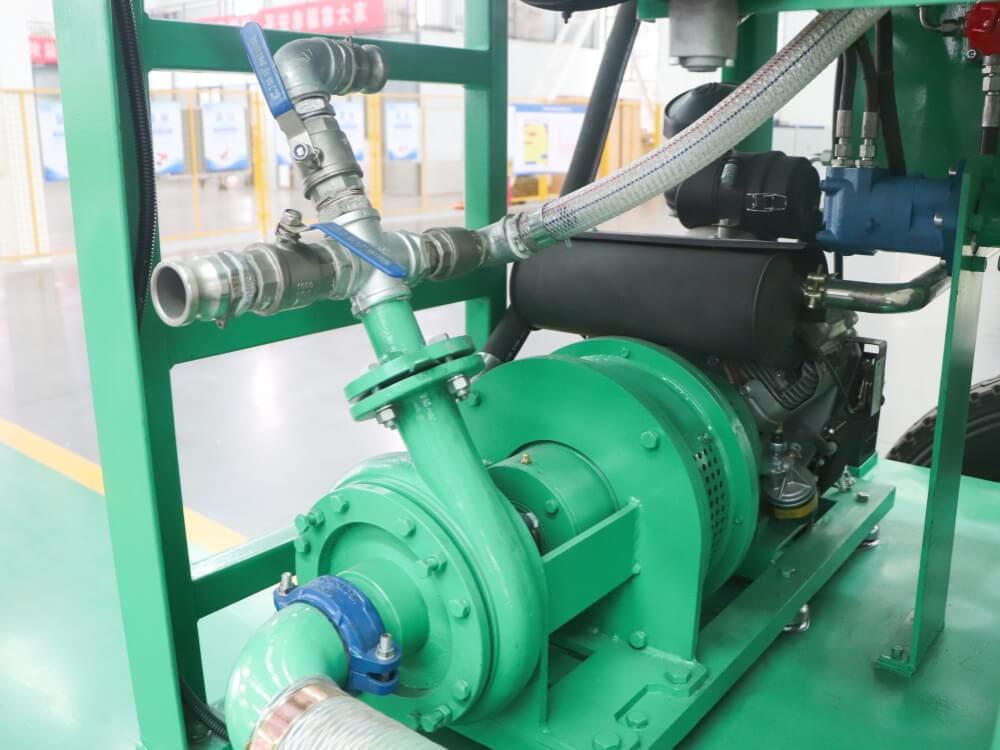

Centrifugal pump
■Technical Parameters
|
Model |
LHS0217PT Hydroseeder |
|||
|
Volume |
2m³ |
Material of a tank |
Polyethylene |
|
|
Agitated Speed |
0-120r/min |
Material of frame |
Steel |
|
|
Engine |
23 hp gasoline engine with electric start |
|||
|
Passage section of pump |
3″ X 1.5″ centrifugal pump |
|||
|
Capacity of pump |
120 m³/h |
Coverage |
620 m2/tank |
|
|
Hose length |
20m |
Empty weight |
1180kg |
|
|
Loaded weight |
2810kg |
Overall Size(LXWXH) |
2920×1630×2290mm |
|
|
Data: |
||||
