ADDRESS ■Introduction
► Description:
► Application:
LHS13190 Large capacity hydroseeder machine for green engineering is also perfect for planting permanent vegetation, spraying slurry, slope protection, grassing, and erosion prevention. Its ability to handle steep slopes and large spraying thickness makes it ideal for projects that require more intensive coverage. Overall, the LHS13190 Hydroseeding Equipment is a top-of-the-line solution for any large-scale green engineering project.
► Features:
1. The specially designed centrifugal pump with a capacity of 120m3/h is highly effective.
► Service:
LHS13190 Large capacity hydroseeder machine for green engineering is a new and versatile piece of equipment that boasts a large capacity, easy operation and maintenance, and wide applicability. The machine has an empty weight of 8000kg and physical dimensions of 7200x2500x2915mm.
|
|
 |
 |
 |
Designed for green engineering, the LHS13190 large capacity hydroseeder machine has a working capacity of 11700L (3100 gallons) and is equipped with a 190KW Cummins engine that is water-cooled and directly coupled to a specially designed high-volume centrifugal pump, measuring 6’’x3’’ (15.2X7.6cm) and capable of pumping 120m³/h at 14 bar with a 33mm solid clearance.
|
|
 |
 |
 |
The Cummins diesel engine provides reliable power and efficient operation, ensuring the machine's optimal performance for long-term use. With twin mechanical agitators featuring helical paddle orientation and liquid recirculation, and a maximum horizontal conveying distance of up to 85m from the cannon, the LHS13190 hydroseeder machine for green engineering is equipped with a large oil tank capacity to facilitate faster work completion.
|
|
 |
 |
 |
The LHS13190 hydroseeder machine for sale can be mounted on the back of a truck with sufficient load capacity, or easily operated from a trailer. Wheel configurations can also be customized as per customer requirements for optimal portability.
► Application:
LHS13190 Large capacity hydroseeder machine for green engineering is also perfect for planting permanent vegetation, spraying slurry, slope protection, grassing, and erosion prevention. Its ability to handle steep slopes and large spraying thickness makes it ideal for projects that require more intensive coverage. Overall, the LHS13190 Hydroseeding Equipment is a top-of-the-line solution for any large-scale green engineering project.
► Features:
1. The specially designed centrifugal pump with a capacity of 120m3/h is highly effective.
2. The hydroseeder machine can spray up to 85m in distance with its cannon.
3. The dual cannons allow for spraying on both sides of the machine, making it easier to reach hard-to-access areas.
4. The swivelable hydraulic hose reel can perform both reeling-in and reeling-out functions.
5. The twin mechanical agitators with helical paddle orientation and liquid recirculation enable effective mixing of materials.
6. The removable hoppers for mulch hatch and normal fill well make maintenance and cleaning easier.
6. The removable hoppers for mulch hatch and normal fill well make maintenance and cleaning easier.
7. The hydroseeder machine for green engineering's centralized electronic control system improves work efficiency.
8. The wireless remote control allows for easier operation during work.
9. Large capacity hydroseeder machine for green engineering boasts more horsepower and higher efficiency thanks to its 190kw Cummins diesel engine and industrial grade air-controlled clutch with large torque
9. Large capacity hydroseeder machine for green engineering boasts more horsepower and higher efficiency thanks to its 190kw Cummins diesel engine and industrial grade air-controlled clutch with large torque
 |
 |
 |
 |
► Service:
Pre-sales service
1. Any questions will be replied to within 24 hours.
2. Supply item design, and process design.
3. Help you to choose the fit skid mounted hydroseeder.
4. Making the large capacity hydroseeder machine for green engineering according to your requirement.
After-sale service
1. Training on how to install the LHS13190 diesel engine large capacity hydroseeder machine, training how to use the machine.
2. warranty for 1 year.
► Package and Shipment:
► Package and Shipment:
► The latest upgraded LHS13190 Large capacity hydroseeder machine:
|
|
 |
 |
 |
 |
 |
 |
 |
■Product Details
120m3h centrifugal pump
Fixed standing gun and pipe gun
Grinder for breaking up fibrous materials
Twin mechanical agitators

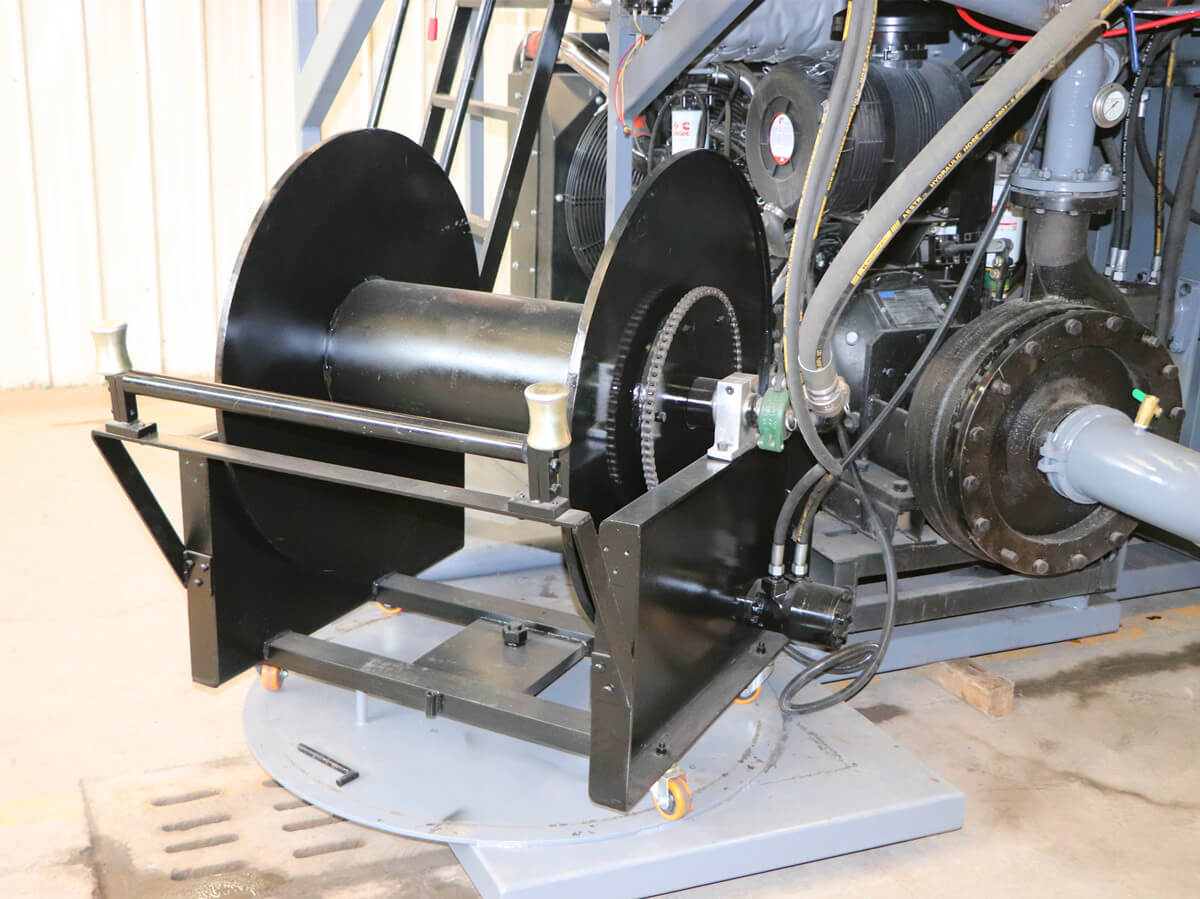

Swivelable hydraulic hose reel
Wireless remote control
■Technical Parameters
| Model | LHS13190 hydroseeder machine for green engineering |
| Power | 190KW, Cummins engine, water-cooled |
| Tank size | Liquid capacity: 13000L(3450Gallon) Working capacity: 11700L(3100Gallon) |
| Pump | Centrifugal pump:6’’x3’’ (15.2X7.6cm), 120m³/h@14bar, 33mm solid clearance |
| Agitation | Twin mechanical agitators with helical paddle orientation and liquid recirculation |
| Rotating speed of mixer shaft | 0-130rpm |
| Maximum horizontal conveying distance | 85m |
| Spraying guns type | fixed standing gun and pipe gun |
| Height of fence | 1100mm |
| Dimensions | 7200x2500x2915mm |
| Weight | 8000kg |
| Options | Stainless steel material for whole unit, Hose Reel with hose, Remote control unit, Trailer |
More related hydroseeder can be customized:
