■Introduction

► Description:

LZ-3AR Air Motor Refractory Gunite Machine is specifically designed for refractory dry-mix shotcrete gunning applications with air motor drive. With this LZ-3AR, you can get low dust, low bound and high performance spraying flow in nozzle.

$refractory dry-mix gunite machine$

Refractory Gunite Machine pictures in our factory:

$Refractory Gunite Machine manufacturer$

$Refractory Gunite Machine supplier$

► Application:

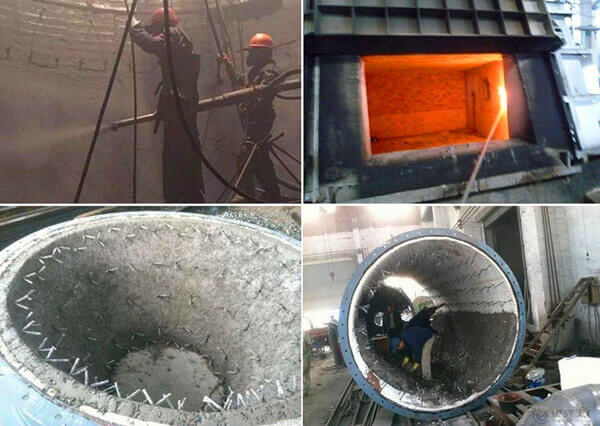

LZ-3AR Refractory Gunite Machine can be used for refractory spraying applications, as well as for concrete shotcrete application. LZ-3AR Refractory Gunite Machine is widely used for spraying refractory materials, castable in some steel plants, and cement factory projects. It is equipped with ABB frequency converter could achieve variable output from 1m3/h to 3m3/h.

$Refractory Gunite Machine for spraying refractory materials$

$Refractory Gunite Machine for steel plants and cement projects$

► Features:

1. Variable Output. 5 cylinders piston air motor drive

air motor drive

2. Bag cutter and flat hopper with vibrator
3. Collect dust bag
4. Clean dust gun
5. Heavy-duty solid wheels
6. Coulping and clamp
7. Light weight nozzle
8. Blast rubber hose

LZ-3AR Refractory Gunite Machine delivery picture:

delivery pictures of gunite machine

■Product Details

Bag cutter and flat hopper with vibrator

Air motor

Air compressor port

Heavy-duty solid wheels

Outlet

Vibrator

■Technical Parameters

Rated Output	1-3m3 /h (2-6 ton/h)
Max. Horizontal Conveying Distance	100m
Max. Aggregate Size	Φ10 mm
Conveying Hose Inner Diameter	38mm
Operating air Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	10-11m3/min
Engine	4kw
Material Charging Height	1.1m
Rotor Speed	13.2r/min
Overall Dimension(L×W×H)	1.13×0.54×1.1m
Weight	430kg
