■Introduction

►Description:

LZ-9ER Electric motor castable refractory gunning machine is not your typical dry mix gunning machine. It's specially designed for the precise application of refractory materials and castable substances.

$straight chamber rotor type refractory gunning machine$

This refractory dry mix castable gunning machine is equipped with an ABB frequency inverter, allowing for an adjustable output ranging from 3m3/h to 9m3/h.

$Refractory Castable Insulating Gunning Machine$

$Refractory Installation Equipment$

In comparison to conventional dry mix shotcrete machines, the castable refractory gunning machine is equipped with a new type of pre-dampening nozzle assembly. This innovative system acts like a pre-wet system, where a high-pressure water pump delivers water to the nozzle water ring, effectively mixing water with the refractory materials. This process significantly reduces the rebound rate.

$Refractories gunning machine for the cement factory$

$High alumina castable refractory gunning machine$

Typically, a common concrete dry mix shotcrete machine has a rebound rate of around 20% to 30%. In contrast, the rebound rate for the electric motor castable refractory gunning machine in China is impressively low, at only 10% to 15%. This reduction in rebound is especially cost-effective because refractory materials are more expensive than standard concrete.

$Monolithic castable refractory gunning machine$

Moreover, using this refractory gunning machine results in minimal dust at the work site, which is not only beneficial for the equipment operator but also helps to maintain a healthier work environment.

► Application:
LZ-9ER Electric motor castable refractory gunning machine is a well-proven procedure by which refractory material and castable can be applied quickly and cheaply. It is used for the hot repair of ladles and melting furnaces as well as relining or cold repair of the back lining.

$Refractory gunning machine is used for kiln repair in steel plants$

$Refractory gunning machine used in steel plants and cement plants$

$Refractory gunning machine for kiln repair$

$gunning machine for installing refractory materials$

Refractory gunning machine working test effect:

$Refractory gunning machine working test effect$

► Features:

1. Variable output with variable-frequency drive

2. Protect frame

3. Electric vibrator

4. Bag cutter and hopper with vibrator

5. Collect dust bag

6. Clean dust gun

7. Heavy-duty solid wheels

8. Blast rubber hose

9. Coupling and clamp

The coupling and clamp are optional as below:

10. High-pressure water pump, 30 bar pressure make sure to add water fully atomize, and mix evenly.

12. Lightweight nozzle

1. Low rebound, low dust.

2. Reduce the additive water amount.

3. Improve refractory compactness and strength.

■Product Details

Bag Cutter and Hopper with Vibrator

Clean Dust Gun

Collect Dust Bag

Electric Vibrator

Heavy-duty Solid Wheels

Protect Frame

■Technical Parameters

LZ-9ER Electric motor castable refractory gunning machine specification (with electric motor drive):
Rated Output	3-9m3 /h(6-18ton/h)
Max. Horizontal Conveying Distance	100m
Max. Aggregate Size	Φ20 mm
Conveying Hose Inner Diameter	64mm
Operating Air Pressure	0.2-0.4MPa
Air Consumption	10~12m3/min
Motor Power	7.5kW
Voltage	3 phase,380V,50Hz
Material Charging Height	1.2m
Rotor Speed	0-11r/min
Overall Dimension(L×W×H)	1.65×0.9×1.3m
Weight	900kg

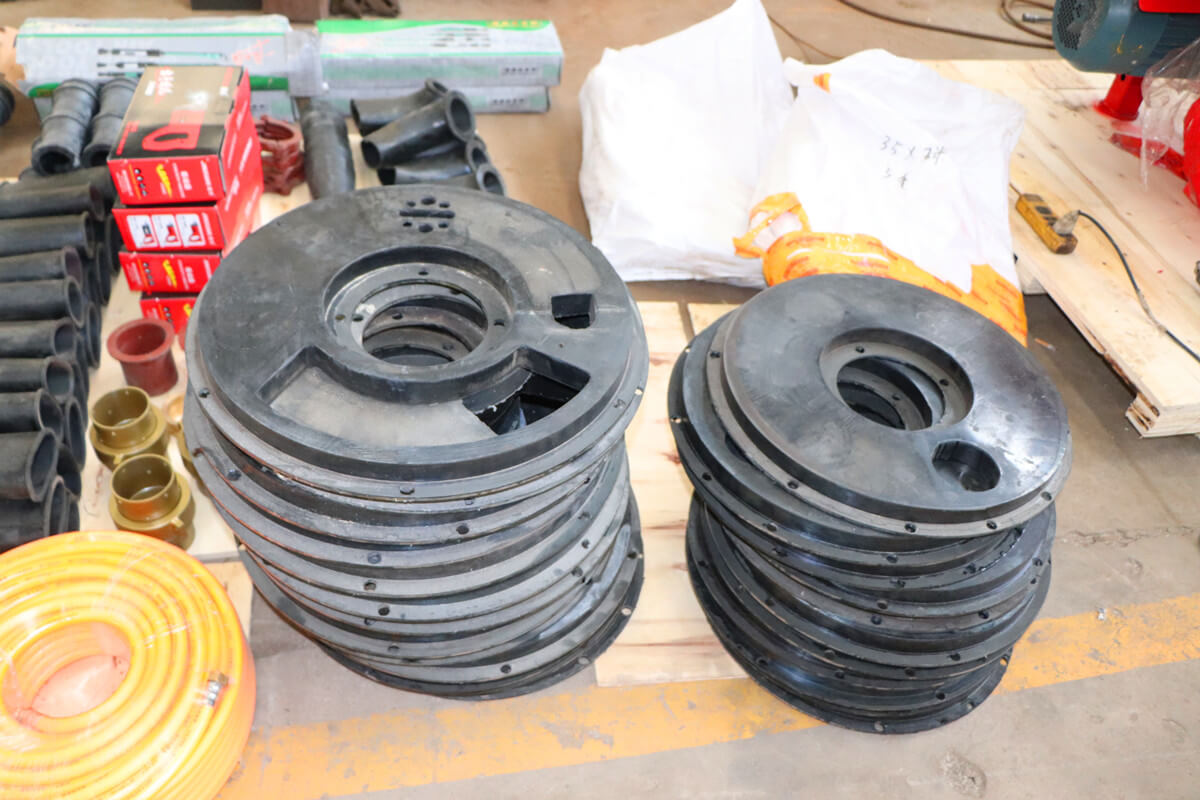

► Spare parts:
LZ-9ER Electric motor castable refractory gunning machine spare parts:

$Accessories for refractory gunning machine$

$Clean Dust Gun for refractory gunning machine$

$Nozzle for refractory gunning machine$

$spare parts for refractory gunning machine$
