► Description:

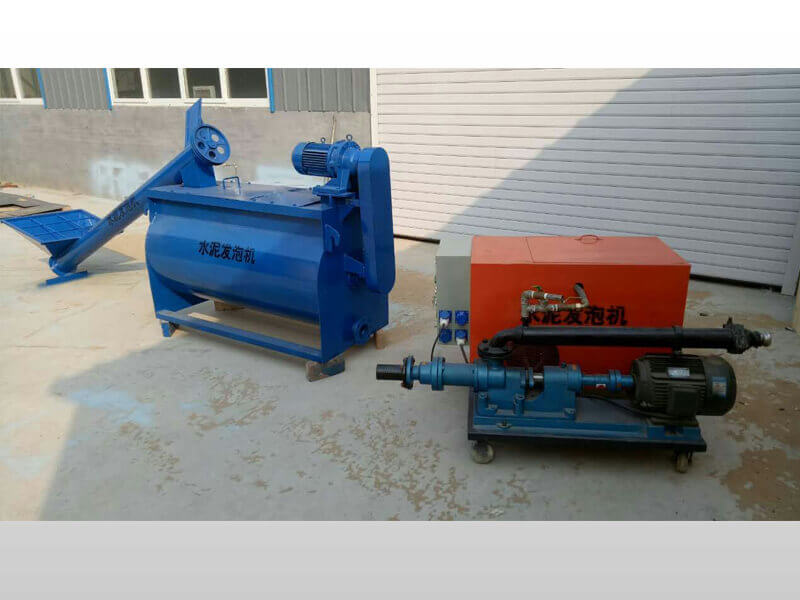

LF10A Cement foam concrete unit is a kind of small foam concrete machine according our many years of working experience. Foam cement machine includes a feeder, a mixer, a set of foaming system and a pump. This foam machine capacity is 10 cubic meter per hour which is special design for village and county market. It can put directly on the truck for working.
► Application:
1. Cement foam concrete unit for foam concrete block;
2. CLC machine for subway and coal mining backfill;
3. Foam concrete machine for framed wall and house structure casting;
4. Light weight concrete making equipment for floor/roof casting construction.
► Features:
Features of foam cement machine:
1. Cement foam machine Split design and easy to move;
2. Each machine single controller, easy to operate;
3. The foam cement machine unit use high pressure screw pump, can convey max height of 30meters;
4. The machine use high pressure screw pump, can convey max height of 30meters;
5. The cement foam concrete unit compare similar machine save about 50-100kg concrete per cubic meter;
6. The machine compare similar machine save about 50-100kg concrete per cubic meter;
7. Low electrical consumption, which special suitable for village usage, and also can working with the 15kw electrical generator.
Model | LF10A |
Mixer and feeder system | |
Maximum capacity | 5-10m3/h |
Rotate speed | 35r/min |
Motor power of mixer | 3kw |
Dimension of mixer | 1500x500x900mm |
Motor power of feeder | 2.2kw |
Length | 2.5meter |
Diameter of feeder | φ220mm |
Pump and foam system | |
Maximum output | 10m3/h |
Motor power of foam concrete pump | 5.5kw |
Motor power of water pump | 3kw |
Conveying distance | 80meters |
Maximum vertical distance | 40meters |
