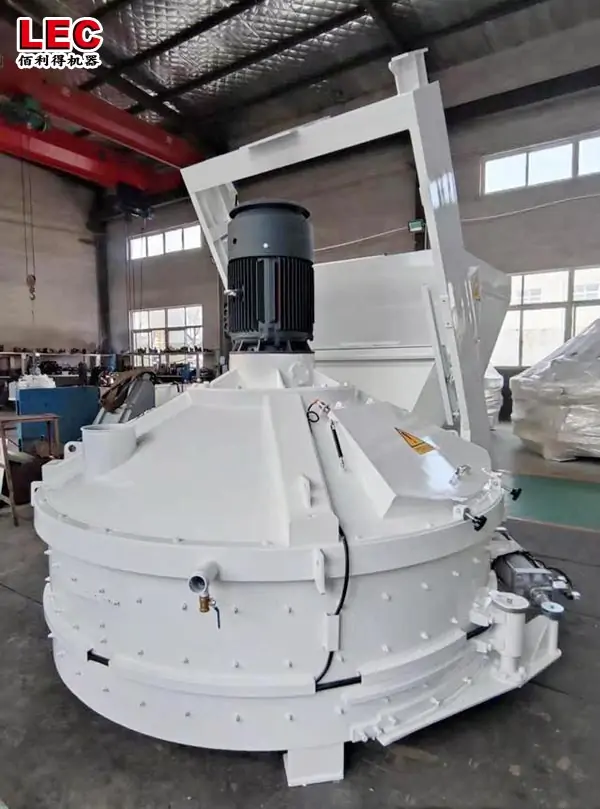

UHPC Concrete Planetary Mixer
The UHPC Concrete Planetary Mixer includes the main rotary shaft, mixing shovel, and side scrapers. The mixer adopts advanced mechanical technology from the mixing system, transmission system to the unloading system – single motor design, integrated two-way planetary reduction mechanism, The connection method of the hydraulic coupling, the hydraulic unloading method, etc.
In order to improve the efficient use and safe operation of the UHPC Concrete Planetary Mixer, avoid mechanical damage, and ensure the normal use of the equipment and the smooth development of the production process, Co-Nele recommends that you observe the following contents.
UHPC Concrete Planetary Mixer Operation Attention Code：
1. Inspection content before operation of vertical axis UHPC Concrete Planetary Mixer
1. The power supply voltage and other adapter instruments have a reasonable rise and fall range, and the relevant installation should be guaranteed to be correct.
2. The fastening of each transmission system, drive system, and other devices, the layout of the feeding system and gears are complete, and the safety measures are in place.
3. The wiring of relevant equipment is correct and will not cause safety hazards
2. Before the operation of the planetary UHPC Concrete Planetary Mixer, conduct an idling test machine to confirm that there is no abnormality.
3. During the operation of the planetary UHPC Concrete Planetary Mixer, attention should be paid to abnormal conditions and excessive temperature rise of some components. If a problem occurs, it should be stopped for inspection and repaired until it is normal.
4. The vertical shaft planetary UHPC Concrete Planetary Mixer should replace the wearing parts in time, and adjust the equipment to return to the normal state in time.
5. During the use of the vertical axis planetary UHPC Concrete Planetary Mixer equipment, it is necessary to ensure that the operator can operate the equipment, and it is strictly forbidden to leave the work position during operation.
6. After the completion of each shift of the vertical shaft planetary UHPC Concrete Planetary Mixer, it must be cleaned and cleaned in time, the equipment should be lubricated, and the power supply should be cut off.
Maintenance per shift (before, during, and after each shift)：
①Remove the scale and obstacles on the machine body and mixing blade, and check and tighten the bolts of each part. Replace severely worn bolts and nuts.
② Check the position of the lubricating oil of the reducer on the transparent glass window, and the oil level should not be lower than 1/3 of the glass height. When the oil level is insufficient, it should be replenished in time.
③ Conduct a test run before the shift to confirm that all mechanisms work reliably, there is no abnormal phenomenon, and the sound is normal. The operating shafts of the discharge door should be properly refueled.
④Clean the UHPC Concrete Planetary Mixer thoroughly after each shift, put clean water and stones into the mixing drum, let it run for 10 to 15 minutes, and then clean it with a broom.
Planetary UHPC Planetary Mixer applicable industries:
1. Building materials: various high-performance concrete, aggregate, fly ash, sludge, mortar, white mud, rock wool, cinder, shale, clay, etc.;
2. Refractory materials: various refractory materials, ramming materials, castable materials, thermal insulation refractory materials, ceramics, etc.;
3. Chemical industry, light industry, metallurgy, casting: ceramic slurry, various precious metal powders, ceramic pigments, carbon, molding sand, water glass, sintering, welding materials, manganese slag, solid waste treatment,
4. Cement prefabricated parts: PC components, comprehensive pipe gallery, RPC cover plate, box culvert, pipe pile, sleeper, permeable brick, autoclaved brick, etc.
