■Introduction

► Description:

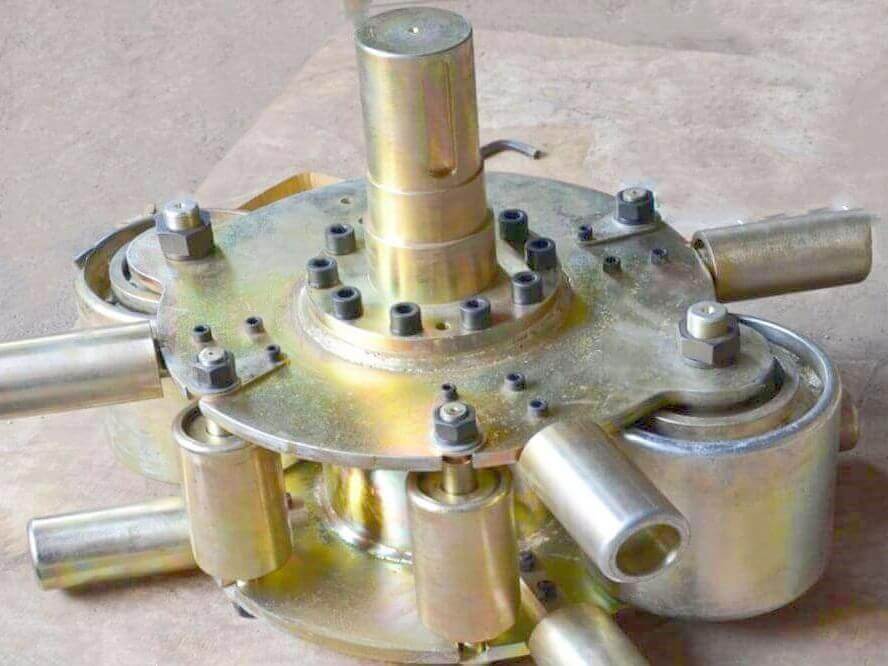

LH76-915B squeeze hose grouting pump for TBM consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries. Along with the cyclic squeezing of roller, the slurry is pumped continually.

squeeze hose pump for TBM theory

► Application:
LH76-915B squeeze hose grouting pump can work as a benonite slurry pump in Tunnel Boring Machine(TBM).Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.

Squeeze hose pump for pumping benonite slurry pump in Tunnel Boring Machine(TBM):

squeeze hose pump for pumping benonite slurry pump in TBM

► Features:

1. Strong Self – priming;
2. Squeeze hose pump for TBM can dry-running without damage;
3. No valves;
4. Be reversible;
5. No contact between product and mechanical parts;
6. Pumped material only touches the hose;
7. Only tube to replace;
8. Able to pump products with solid parts inside;
9. Hose Pump for TBM is easy maintenance, low-cost, shot down time.

Advantage of squeeze hose:

● Low accuracy request on squeeze tube;
● Squeeze interval adjusted by the eccentric roller;
● Recovery of the squeeze tube against the recovery rollers;
● Natural rubber hose with 4 layer of thread reinforcement as the squeeze hose.
● Squeezed by the squeeze rollers, rolling friction to have the low request on the lubrication;

Delivery of hose squeeze peristaltic pump:

high viscosity peristaltic pump

delivery of hose squeeze pump

squeeze hose pump

TBM peristaltic concrete pump

high flow concrete peristaltic pump for sale

delivery of squeeze peristaltic pump

hose squeeze peristaltic pump for sale

■Product Details

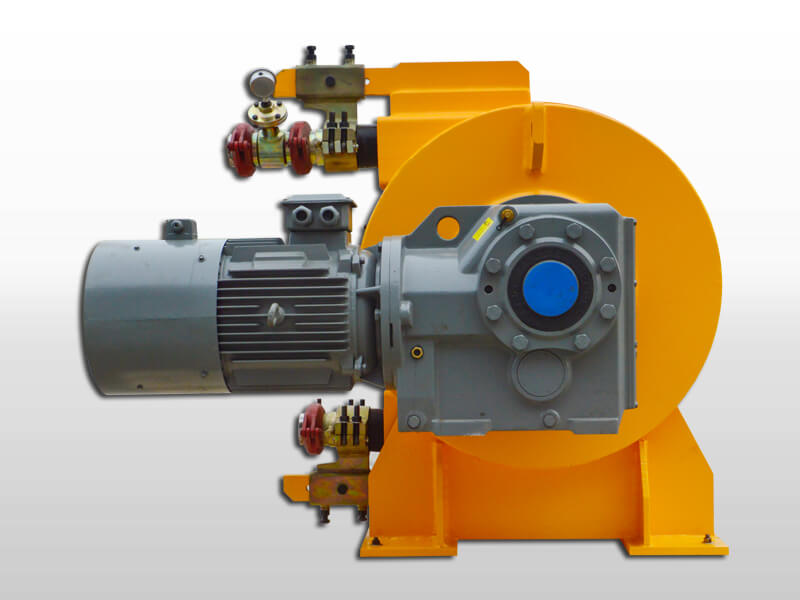

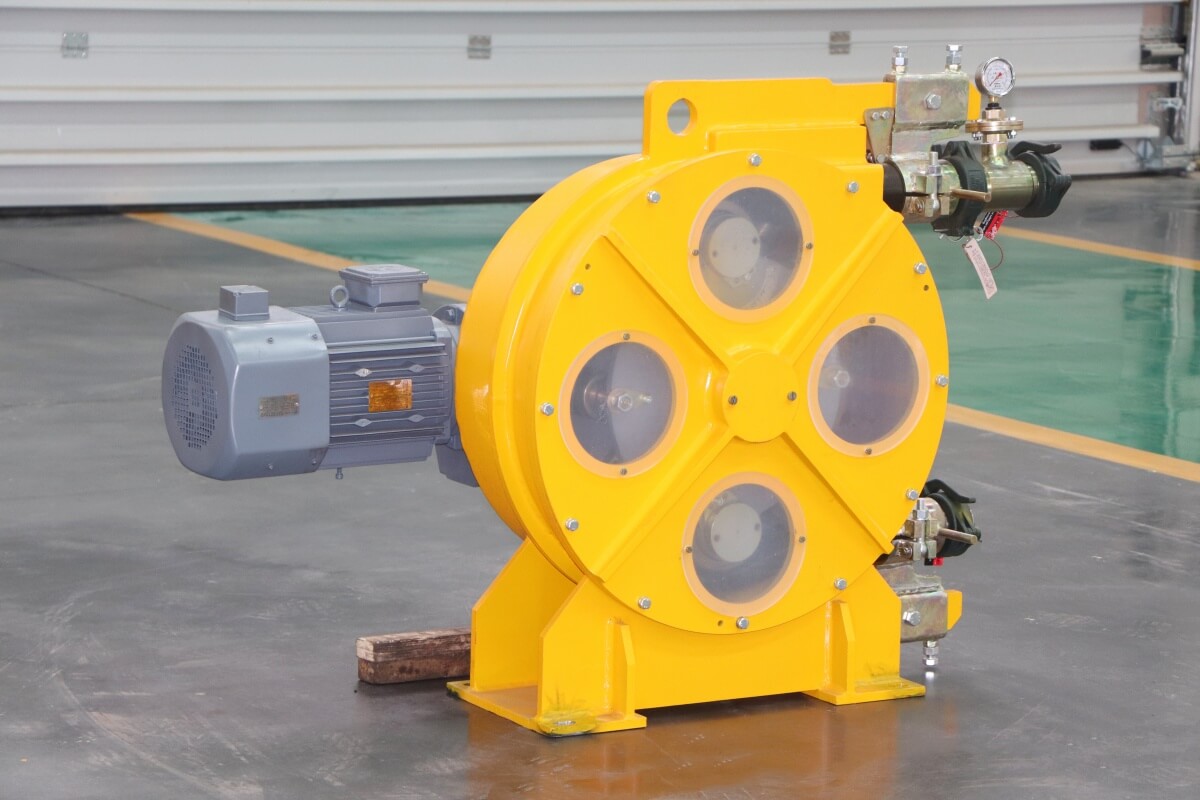

Squeeze hose grouting pump for TBM

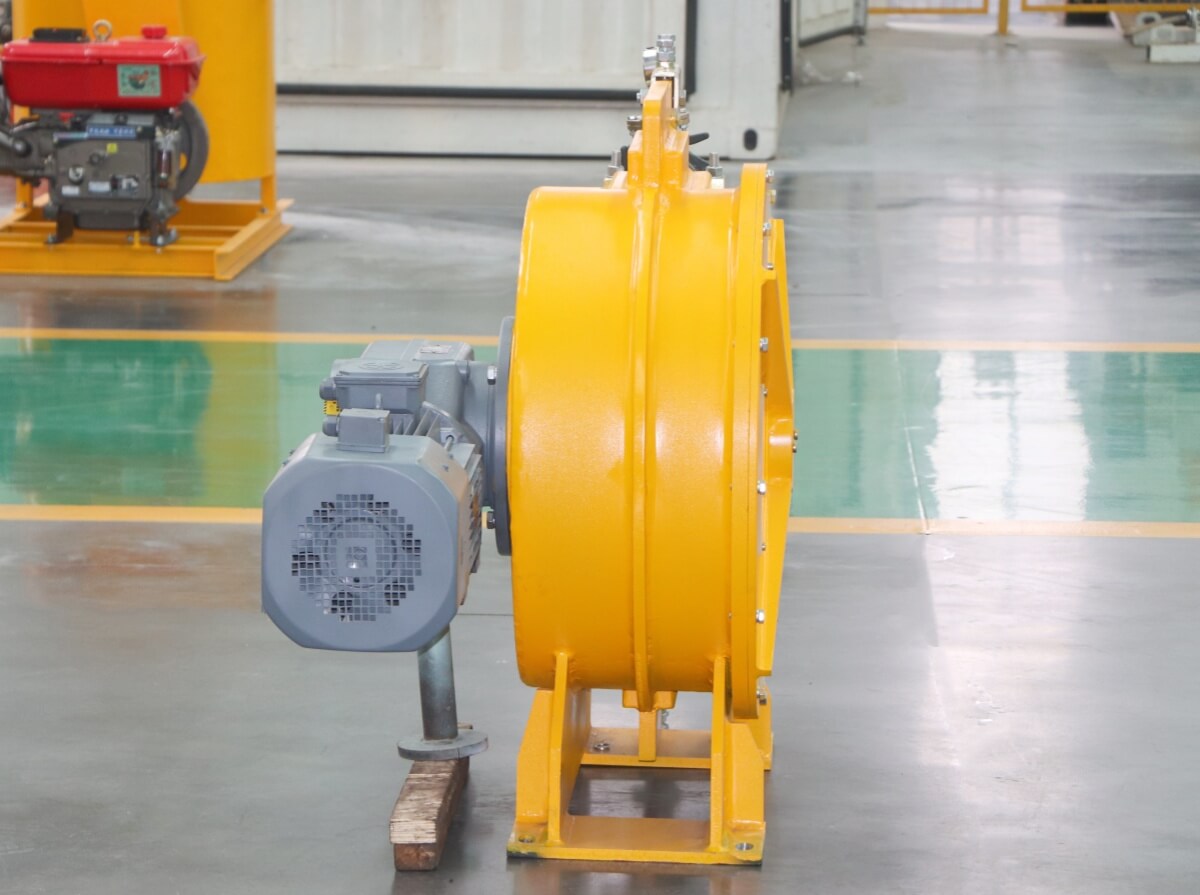

Squeeze hose grouting pump

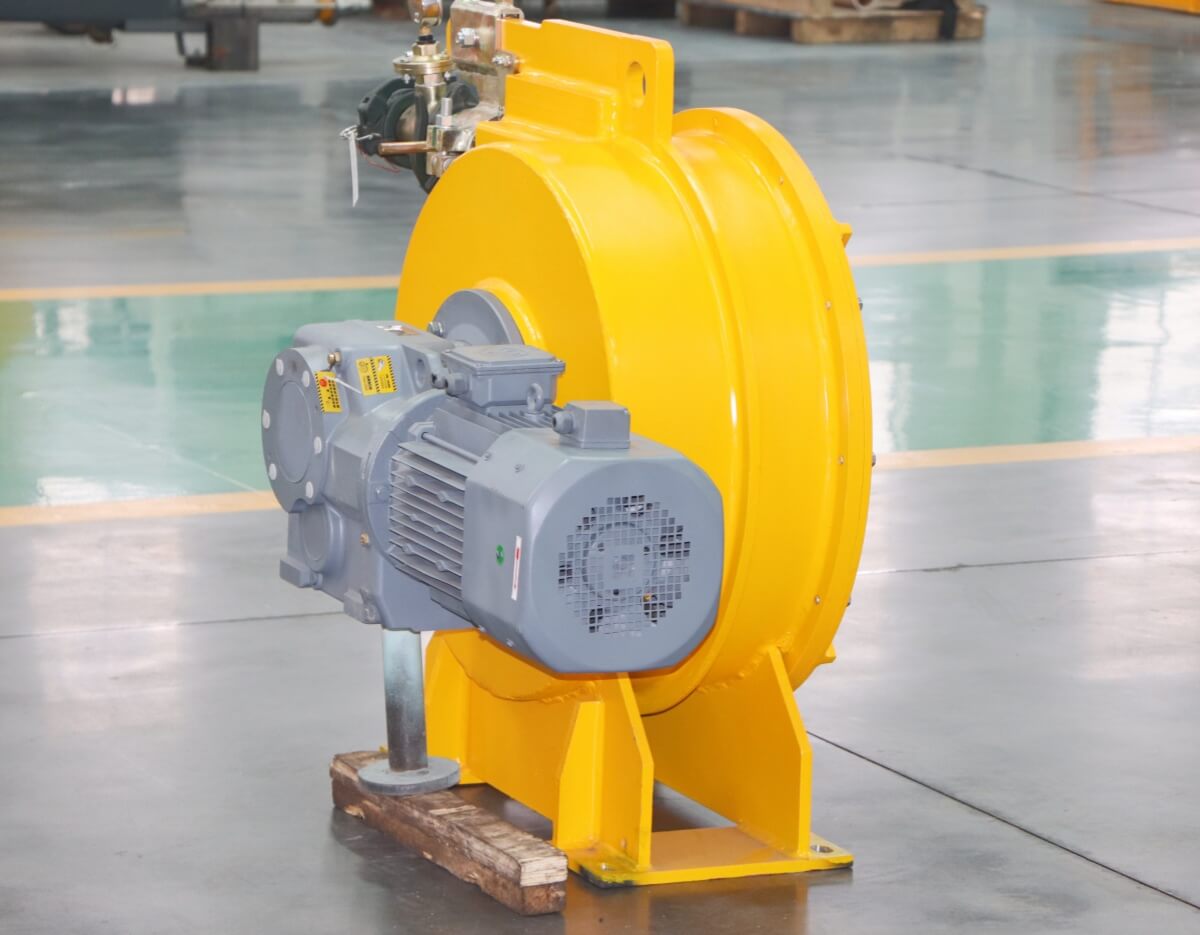

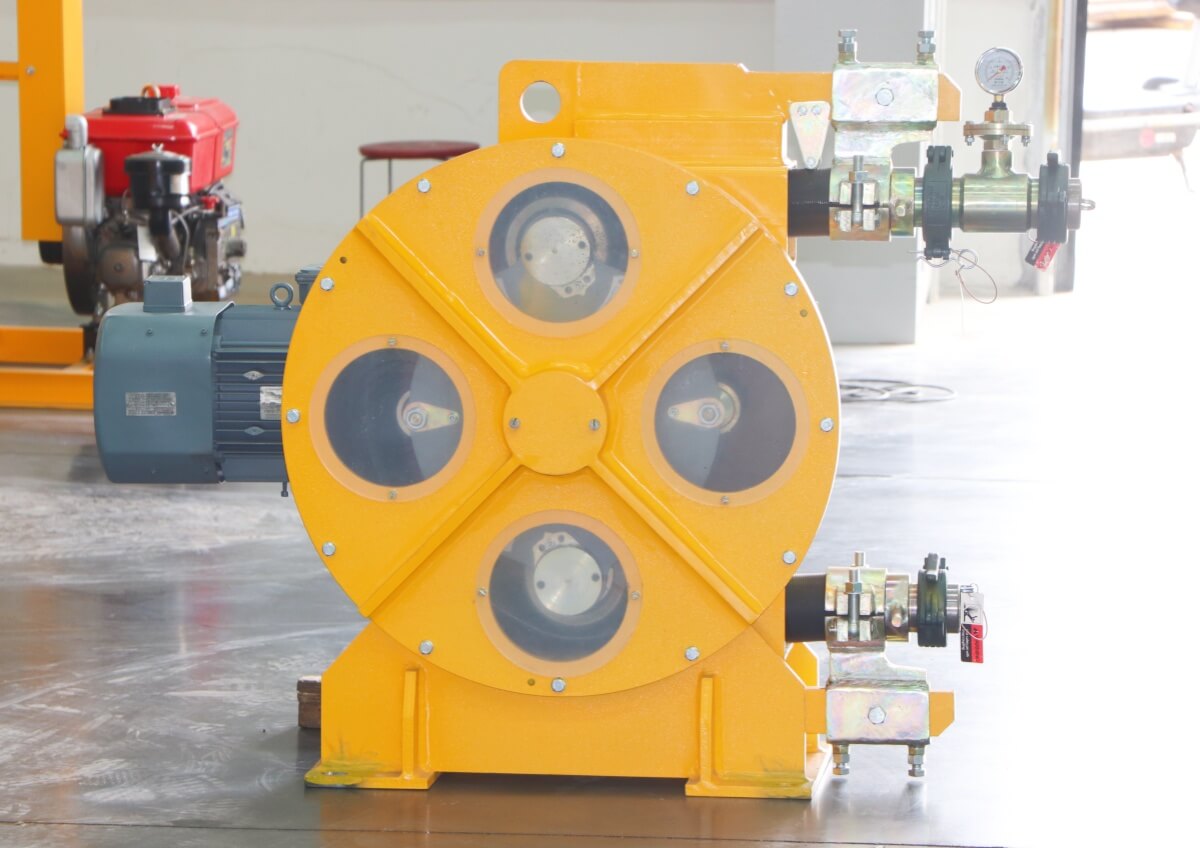

Hose Pump for TBM

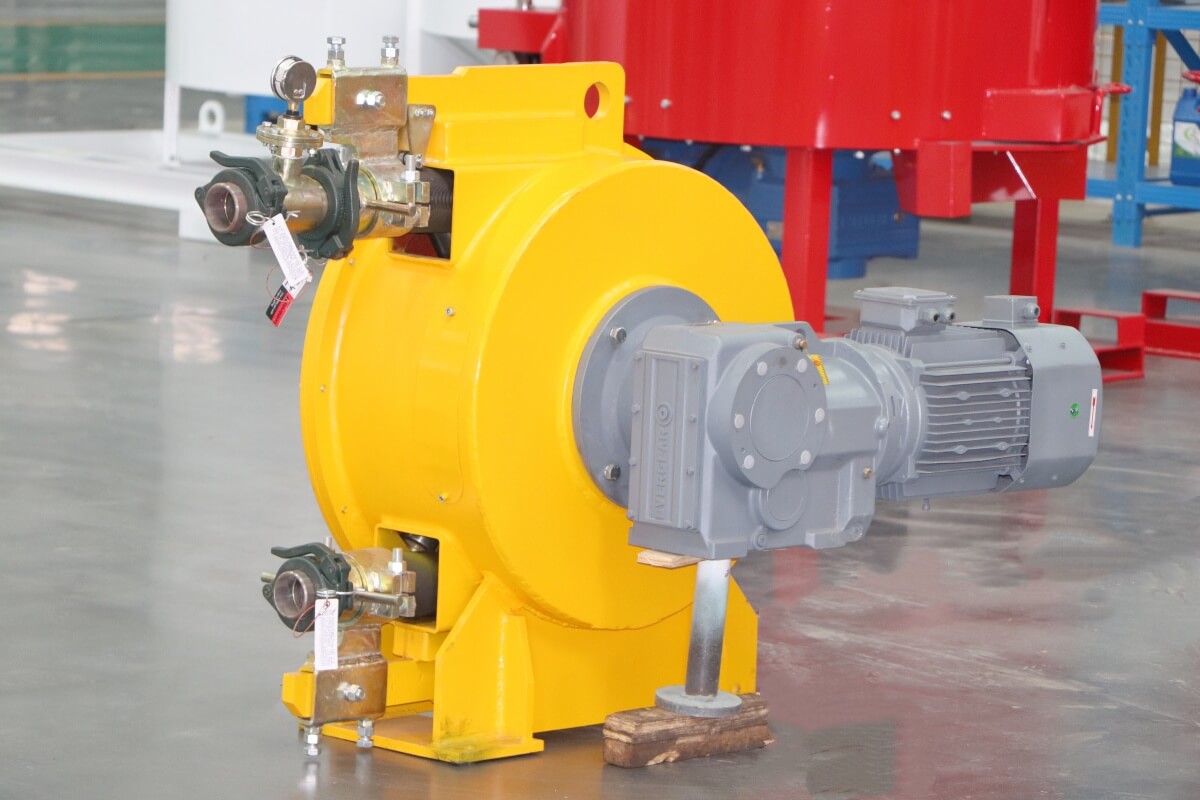

Grouting pump for TBM

Squeeze hose pump for TBM

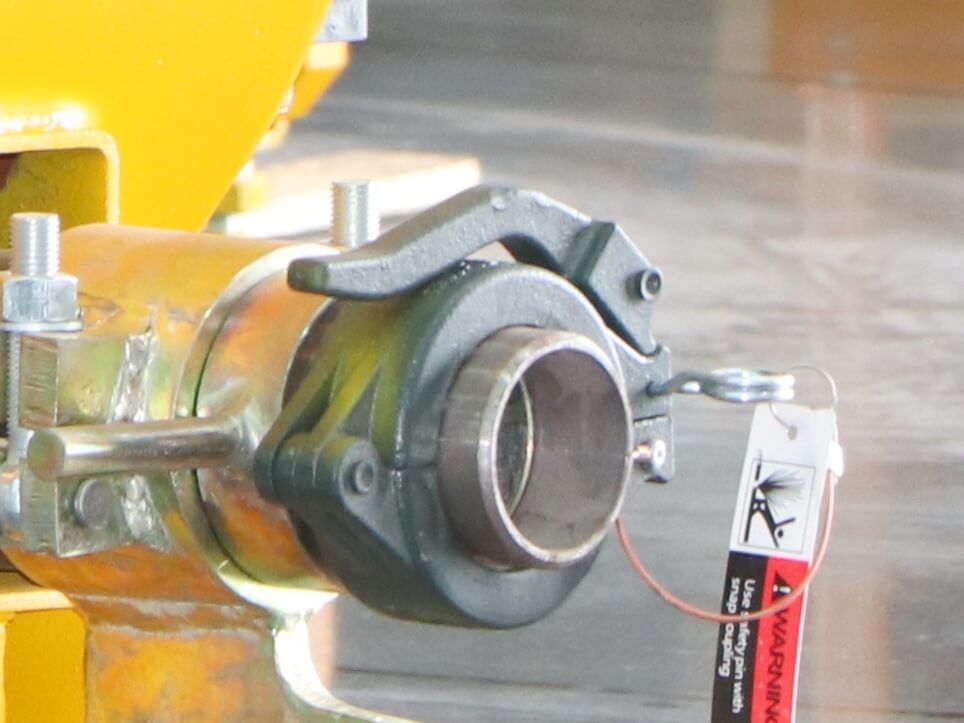

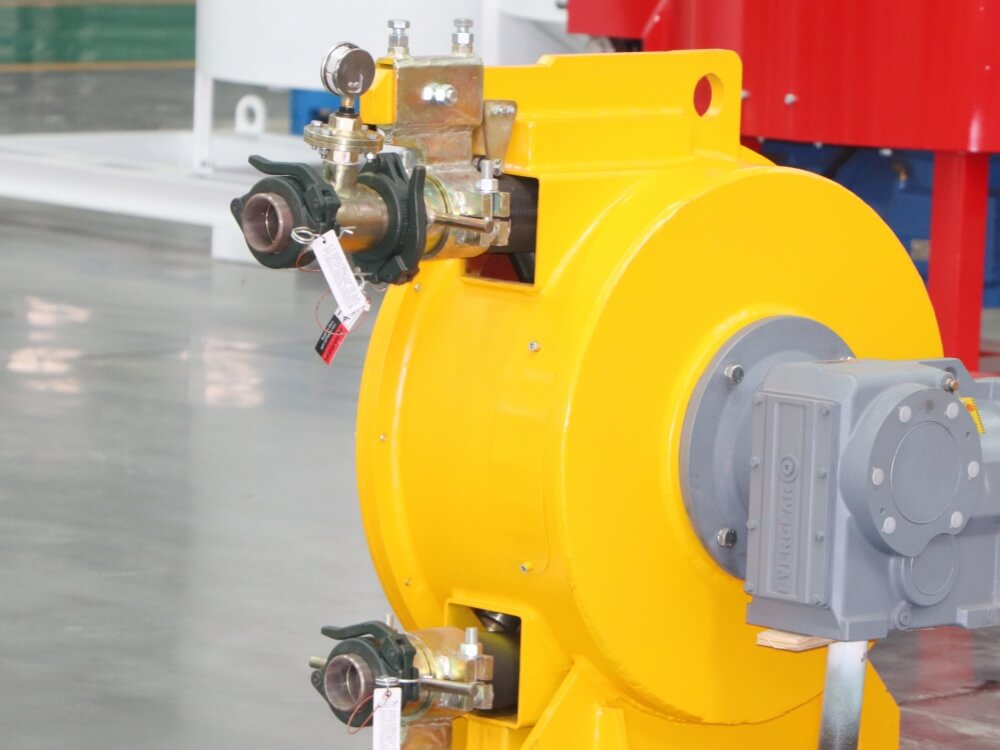

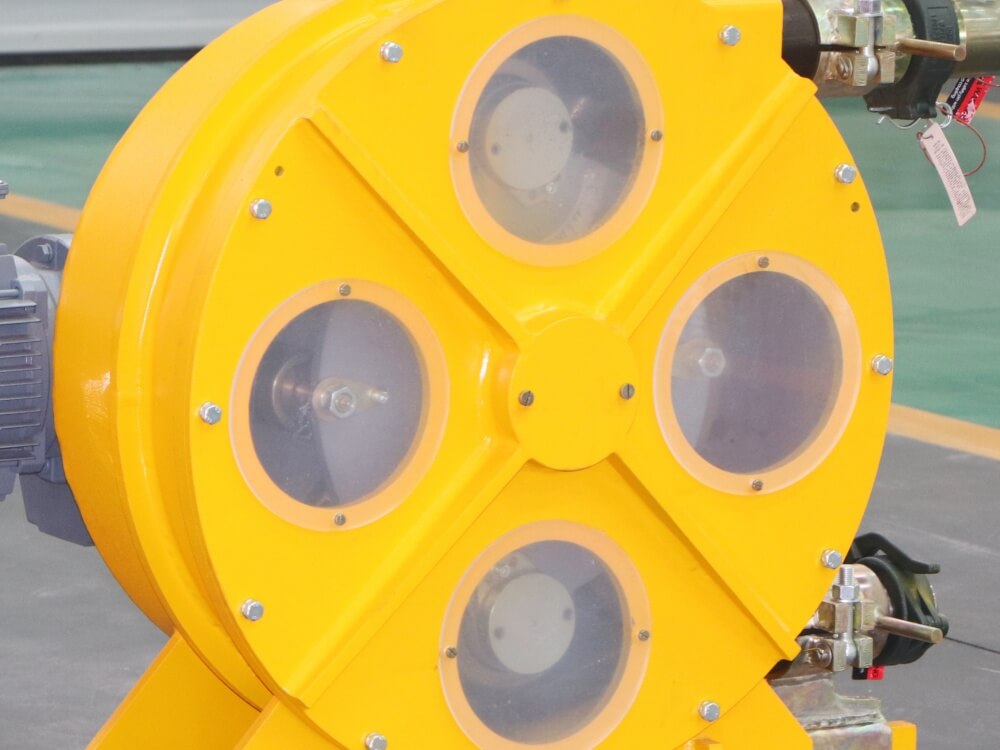

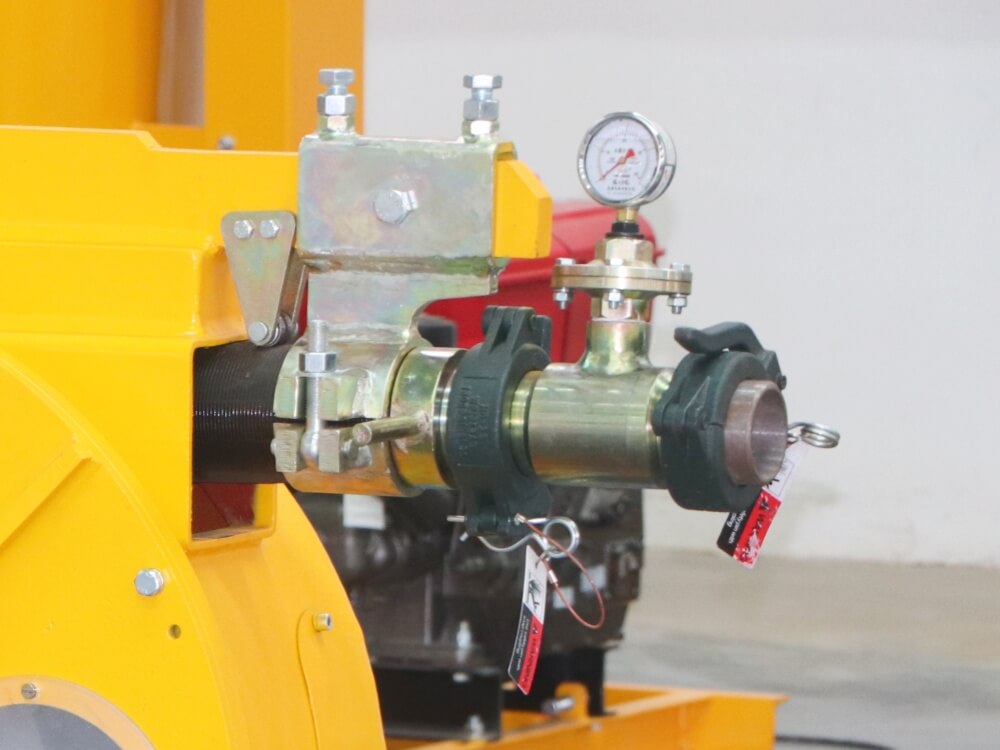

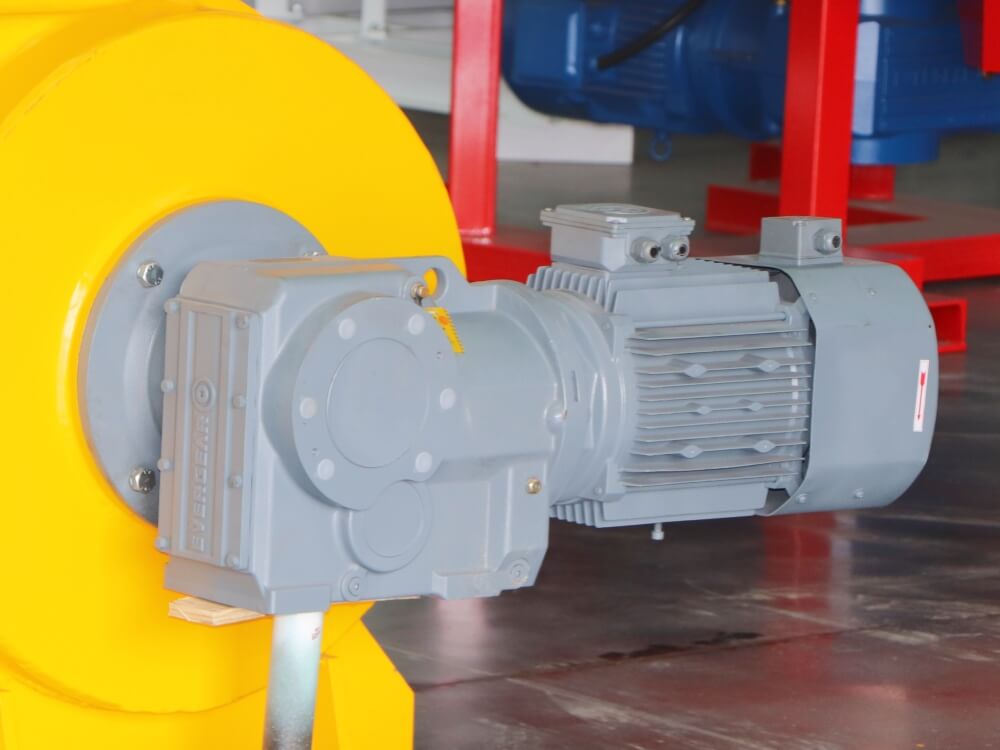

Industrial hose pump details

■Technical Parameters

Type	LH76-915B Squeeze Hose Grouting Pump for TBM
Max. output	20M3/h
Rotation	40RPM
Squeeze hose ID	76mm
Max. pressure	1.0Mpa
Voltage	3 phase, 380V, 50HZ
Power	18.5KW
