ADDRESS ■Introduction
► Description:
LH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.
► Application:
LH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc. LEC industrial peristaltic pumps can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It’s perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).
► Features:
♦ No seals, no valves.
♦ Self-priming, only tube to replace.
♦ Dr –running without damage, reversible.
♦ No contact between product and mechanical parts.
♦ Able to pump products with solid parts inside.
♦ Easy maintenance, low-cost, short down time.
►Tables of LH series industrial hose pump
LH series industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.
► Application:
LH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc. LEC industrial peristaltic pumps can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It’s perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).
► Features:
♦ No seals, no valves.
♦ Self-priming, only tube to replace.
♦ Dr –running without damage, reversible.
♦ No contact between product and mechanical parts.
♦ Able to pump products with solid parts inside.
♦ Easy maintenance, low-cost, short down time.
►Tables of LH series industrial hose pump
| LH10-200 Capacity: 0.037 L/rev Max discharge pressure: 15 bar Hose inner diameter: 10 mm |
 |
| LH15-200 Capacity: 0.083 L/rev Max discharge pressure: 15 bar Hose inner diameter: 15 mm |
 |
| LH25-265 Capacity: 0.3 L/rev Max discharge pressure: 15 bar Hose inner diameter: 25 mm |
 |
| LH32-330 Capacity: 0.625 L/rev Max discharge pressure: 15 bar Hose inner diameter: 32 mm |
 |
| LH38-430 Capacity: 1.14 L/rev Max discharge pressure: 15 bar Hose inner diameter: 38 mm |
 |
| LH50-558 Capacity: 2.58 L/rev Max discharge pressure: 15 bar Hose inner diameter: 50 mm |
 |
| LH50-680 Capacity: 3.14 L/rev Max discharge pressure: 15 bar Hose inner diameter: 50 mm |
 |
| LH65-680 Capacity: 5.31 L/rev Max discharge pressure: 15 bar Hose inner diameter: 65 mm |
|
| LH76-770 Capacity: 8.22 L/rev Max discharge pressure: 15 bar Hose inner diameter: 76 mm |
 |
| LH76-915 Capacity: 9.77 L/rev Max discharge pressure: 10 bar Hose inner diameter: 76 mm |
 |
| LH100-915 Capacity: 16.92 L/rev Max discharge pressure: 10 bar Hose inner diameter: 100 mm |
 |

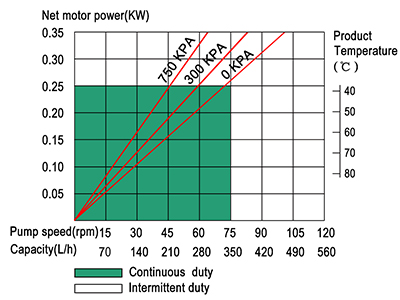

| Note: 1. Intermittent duty: Max. 2 hours working and stop for 1 hour. 2. Flow rate takes water as medium. 3. You may inquiry to us if the model you need is not listed. |
|
■Product Details

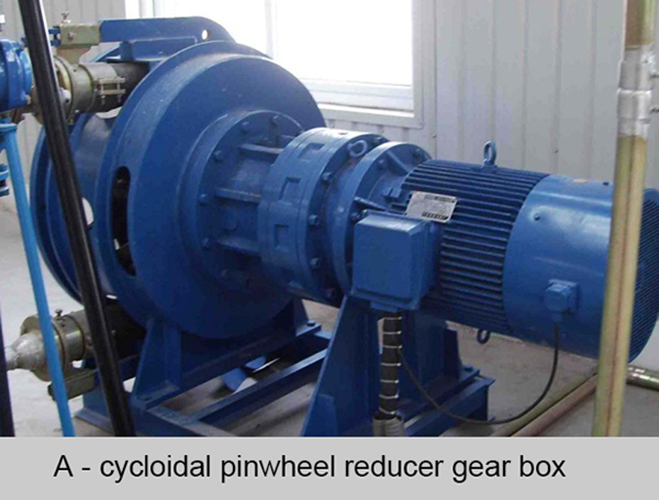

Gearbox A
Gearbox B
Gearbox C
hose pump core
squeeze hose
some parts
■Technical Parameters
► Dimension of Structure:
| A | B | D | E | F | G | H | L | h | 2-d | 4-Φ | |
| LH10 | 300 | 160 | 190 | 200 | 50 | 180 | 245 | 420 | 135 | 10 | 12 |
| LH15 | 270 | 225 | 200 | 265 | 30 | 190 | 295 | 500 | 160 | 15 | 12 |
| LH25 | 500 | 300 | 265 | 360 | 98 | 245 | 410 | 675 | 230 | 25 | 14 |
| LH32 | 500 | 300 | 330 | 360 | 98 | 245 | 410 | 700 | 230 | 32 | 14 |
| LH38 | 600 | 460 | 430 | 520 | 135 | 350 | 550 | 820 | 300 | 38 | 14 |
| LH50-558 | 700 | 540 | 558 | 60 | 190 | 460 | 665 | 1000 | 360 | 50 | 18 |
| LH50-680 | 800 | 690 | 680 | 750 | 220 | 540 | 800 | 1150 | 420 | 50 | 18 |
| LH65-680 | 800 | 690 | 680 | 750 | 220 | 540 | 800 | 1340 | 420 | 65 | 18 |
| LH76-770 | 900 | 760 | 770 | 800 | 260 | 620 | 900 | 1340 | 480 | 76 | 18 |
| LH76-915 | 1000 | 860 | 915 | 900 | 320 | 700 | 1050 | 1500 | 550 | 76 | 25 |
| LH100 | 1000 | 860 | 915 | 900 | 320 | 700 | 1050 | 1600 | 550 | 100 | 25 |
