5m3/h shotcrete machine for sale

2016-06-11 14:47:39

Shotcrete Machine Details    Contact us: sales@leadcrete.com

Condition: New Application: Small work
Place of Origin:  Zhengzhou, Henan China (Mainland)     Brand Name: Leadcrete
Model Number: LZ-5   Certification: ISO9001
Warranty: 1 Year After-sales Service Provided: Engineers available to service machinery overseas

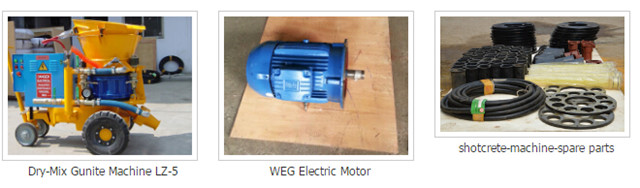

Shotcrete Machine Spare Parts for Sale

Shotcrete Machine Packaging & Delivery

Packaging Details: Standard Package Delivery Detail: 10 Days after Prepayment

Shotcrete MachineSpecifications

1. Good Performance;
2. Long service life;
3. Working very well in Africa South-east and Asia.

Shotcrete Machine Introduction

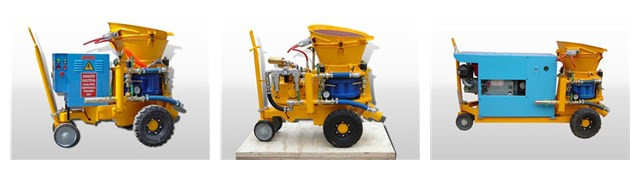

LZ-5 Dry-mix shotcrete machine is medium-sized gunite machine for the processing of dry mix. It is widely used by many contractors. LZ-5 Dry-mix shotcerte machine is available in following versions:

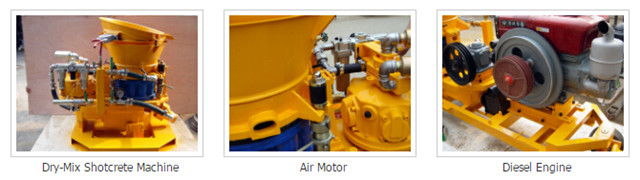

Air motor driver or diesel drive combined with skid or rail-wheel.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with skid or rail-wheel.
Dry concrete spraying machine or shotcrete machine is used in engineering and construction, mining, tunnel, culvert, subway, hydropower engineering, underground engineering and high marsh coal mine tunnel shotcrete construction operations.

Shotcrete Machine Features

1.Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period;
2.Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality;
3.Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.

Shotcrete Machine Technical data

Electric motor drive

Rated Output	5m3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤ 1.3~5
Water Cement Ratio	< 0.4
Max. Aggregate Size	Φ 15 mm
Conveying Hose Inner Diameter	51mm
Operating air Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	8~9m 3 /min(285-325CFM)
Motor Power	5.5kW(7.5hp)
Voltage	220V, 380V, 440V, 660V, 50Hz/60Hz
Material Charging Height	1.1m
Rotor Speed	11r/min
Overall Dimension(L× W× H)	1.35× 0.75× 1.2m
Net Weight	720kg

Diesel drive

Output Capacity	3-5.5m3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤1:4~5
Water cement ratio	<0.4
Max. Aggregate Size	Dia.15 mm
Conveying Hose Inner Diameter	Dia.51 mm
Operating air Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	9m3/min(325CFM)
Material Charging Height	1.1m
Rotor Speed	11r/min
Diesel Type	CF1105M
Power	13kw/18hp
Overall Dimension(L× W× H)	2.2×0.96×1.2m
Net Weight	850kg

Air motor drive

Output Capacity	2.5-5.5m3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤1:3~5
Max. Aggregate Size	Φ15 mm
Conveying Hose Inner Diameter	Φ51 mm
Conveying Pressure	0.2-0.4MPa
Air Consumption for conveying material	7~8m3/min
Air Motor Air Pressure	0.5MPa
Material Charging Height	1.1m
Rotor Speed	11rpm
Air Motor Type	TMH6A
Air Motor Air Consumption	7.5m3/min
Overall Dimension(length×width×height)	1.35×0.75×1.2m
Net Weight	720kg

Shotcrete Machine FAQ

1.Are you a manufacturer or a trading company?
We are a concrete machinery manufacturer for 20 years.

2.What is your advantage?
First we are a manufacturer, so the price is more competitive than the trading company. Second, it is more effective to communicate with the factory, saving more time for you.
Third, we also produce other concrete machinery such as concrete pump, hose pump, shotcrete machine, grout pump, foam concrete machine to meet your requirements.

3.How do you guarantee your product quality?
We have our professional testing department , and we will test the machine twice when we finish our machine and also before the delivery for shipment.

4. I plan to label our logo on your products, is that possible?
Sure it is ok. OEM is available for us. Just send your logo, brand name or picture to us. Then We will produce it for you.

5. What is your warranty period ?
The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller for free (excluding the wearing parts),while the improper operation and other manmade reasons are excluded.

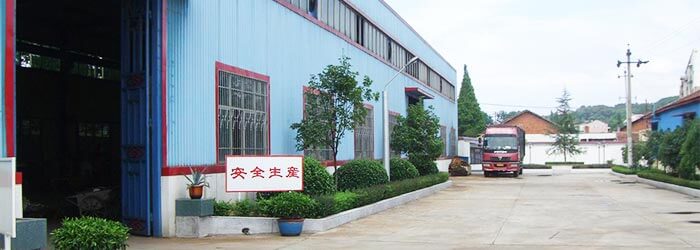

Company Information

Lead Equipment Co., Ltd. is a leading manufacturer of shotcrete machines, grout pumps, mortar pumps, peristaltic pumps and soil seeding machines in China, as well as an unique supplier with ISO 9001:2008,SGS and CE certificate in above products in China. Our products have been exported to the USA, Canada, India, Malaysia, Pakistan, Korea, Bahrain and Nepal. The export amount is up to USD10,000,000.00.

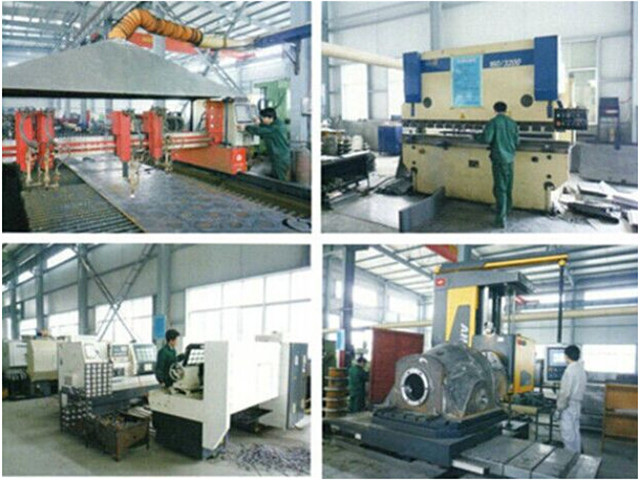

Workshop

Exhibition Booth

Foreign Buyers Visiting and Checking Our Factory

Warmly welcome to visit our factory and test the machine by yourself. Any question, pls contact us.
