Multifunctional portable refractory spraying machine for sale

2021-08-26 17:00:05

Multifunctional portable refractory spraying machine for sale
Multifunctional portable refractory spraying machine is widely used for spraying refractory materials, castable in refractory repair installing project. Such as, aluminum furnace linings, industrial furnace repair, heat treating furnaces, reheat furnaces, rotary kiln Linings, tunnel and shuttle kiln, dryer and combustion chambers, refractory boiler settings, incinerator rebuilds, stack and duct linings, ladle and crucible linings.

Multifunctional portable refractory spraying machine for sale

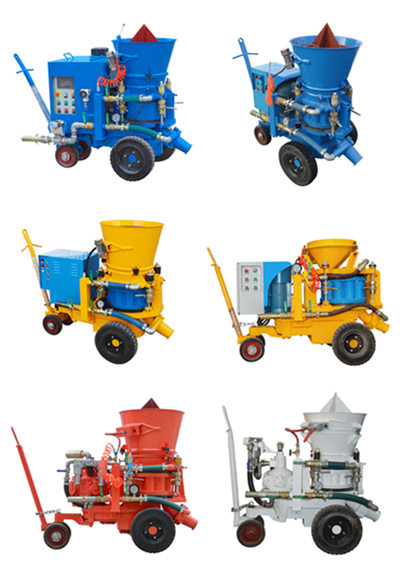

Lead Equipment Co., Ltd. is a manufacturer of multifunctional portable refractory spraying machine. We have developed full series of refractory spraying machine for sale, output from 1m3/h to 9m3/h, electric motor and air motor are available options for customization.

Multifunctional portable refractory spraying machine for sale

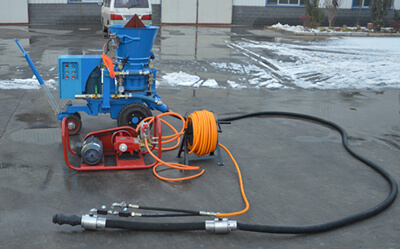

LZ-3ER multifunctional portable refractory spraying machine is specifically designed for refractory dry-mix shotcrete. With this LZ-3ER, you can get low dust and high performance spraying flow in nozzle.
LZ-3ER refractory spraying machine operating air pressure range is from 2-4bar, and the rated output range from 1-3m3/h. Its power unite are respectively 3phase, 380V, 50Hz. Its electric engine power is 4Kw.

Multifunctional portable refractory spraying machine for sale


Application
:

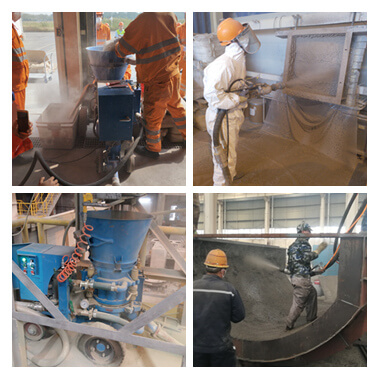

LZ-3ER multifunctional portable refractory spraying machine can be used for refractory spraying and shotcrete castable, such as repairing a blast furnace. Refractory Gunning Machine is as well as used for concrete spraying.

Feature
:
1. LZ-3ER multifunctional portable refractory spraying machine is straight chamber rotor type refractory gunning machine;
2. Variable Output with ABB variable -frequency drive;
3. Bag cutter and flat hopper with vibrator;
4. Collect dust bag;
5. Clean dust gun;
6. Heavy-duty solid wheels;
7. Coulping and clamp;
8. New type pre-damping nozzle;
9. Blast rubber hose.

Multifunctional portable refractory spraying machine for sale

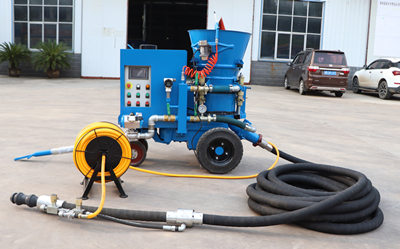

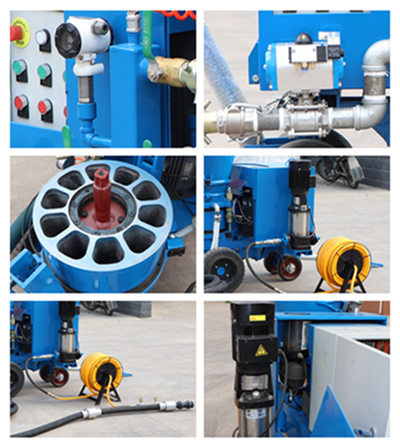

LZ-3ER/S multifunctional portable refractory spraying machine is an upgraded version of our company’s hot-selling LZ-3ER refractory shotcrete machine. The newly designed LZ-3ER/S refractory shotcrete machine effectively reduces dust and greatly improves the spraying effect. Its rotor body hole and rigid liner are changed from round hole to fan-shaped hole, which increases the blanking volume and reduces the friction area; under the same output, it can effectively reduce the speed and reduce the power.

Multifunctional portable refractory spraying machine for sale

Features of the LZ-3ER/S multifunctional portable refractory spraying machine:

1. LZ-3ER/S adds automatic anti-blocking removal function. The automatic anti-blocking removal system composed of PLC, frequency converter and air pressure sensor can prevent the refractory shotcrete machine from being blocked, thus ensuring the smooth operation of the machine.

2. LZ-3ER/S has higher efficiency and longer service life.

A. The rotor body hole and rigid liner are changed from a round hole to a fan-shaped hole, which increases the blanking volume and reduces the friction area; under the same output, it can effectively reduce the speed and reduce the power.

B. The rubber sealing plate is automatically lubricated, which can extend the service life of the sealing plate and reduce the power of the motor

3. LZ-3ER/S multifunctional portable refractory spraying machine is more convenient to use. The integrated water pump and dry spraying machine are assembled together, and the fireproof material spray machine can move freely.

Multifunctional portable refractory spraying machine for sale

In addition, we have other types grouting pump multifunctional portable refractory spraying machine for sale.

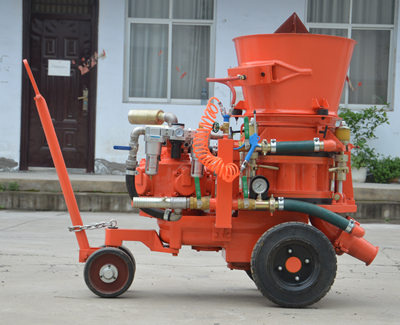

LZ-3AR refractory spraying machine is designed for refractory dry-mix shotcrete with air motor drive. Its operating air pressure range is from 2-4bar, and the rated output range from 1-3m3/h

Multifunctional portable refractory spraying machine for sale

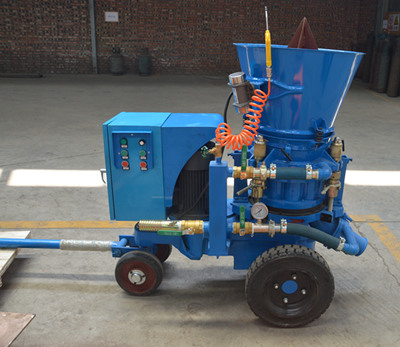

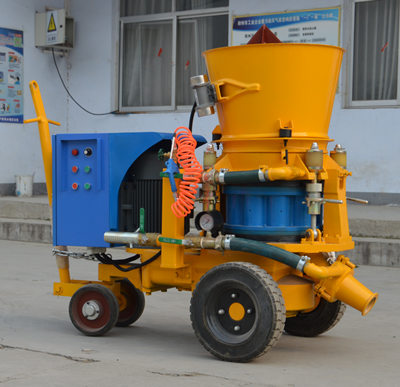

LZ-5ER refractory spraying machine operating air pressure range is from 2-4bar, and the rated output range from 1-5m3/h. Its electric engine power is 5.5Kw.

Multifunctional portable refractory spraying machine for sale

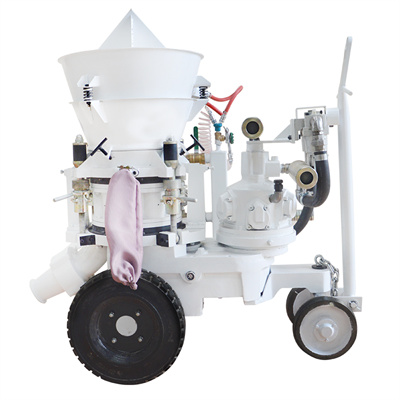

LZ-5AR refractory spraying machine is air motor driven. Its operating air pressure range from 2-4bar, and the rated output range from 1-5m3/h.

Multifunctional portable refractory spraying machine for sale


The multifunctional portable refractory spraying machine for sale is made of professional processing equipment, special precision casting molds and unique production technology. It makes our products have quality assurance, stable and durable. Our fireproof material spraying machine has been accepted by the domestic and foreign markets. So far, our high-quality fireproof material spraying machines have been exported to more than 40 countries around the world.

Contact us for details and price of multifunctional portable refractory spraying machine:
If you want us to help you recommend a suitable multifunctional portable refractory spraying machine, please let me know the following question:
1. What's the project you will use the machine do?
2. What is the output do you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h?
3. Drive type mode? Do you want electric engine or air motor?
4. Do you have any other special requirements for this machine?
You can send your demands to our email, email address: sales@leadcrete.com.
