LZ-3 Shotcrete machine can be used as well for many small jobs, especially shotcrete machine is used for joint filling. LZ-3 Shotcrete machine is small-sized shotcrete machine for the dry spraying process.
Its output capacity is 3m3 /h, and Max. Aggregate Size is Φ10 mm. LZ-3 shotcrete machine can be used as well for joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.
The features of joint filling shotcrete machine:

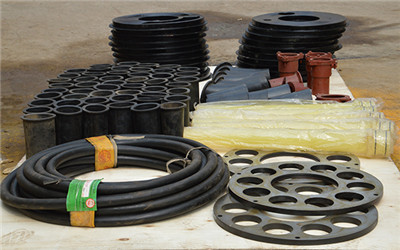

♦ Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
♦ Partifularly used for dry, damp mix and steel(polymer)fiber reinforced shotcrete.
♦ Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and
steady, to improve the shotcrete quality.
♦ Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
LZ-3 Shotcrete machine has three drive modes.

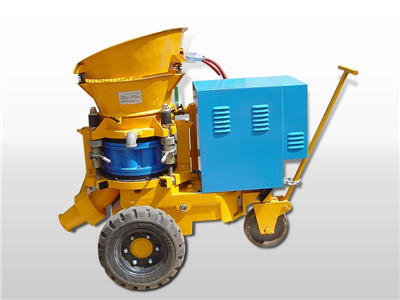

Electric Motor Driven
|
Output Capacity |
3m3 /h |
|
Max. Horizontal Conveying Distance |
200m |
|
Suitable Mix Ratio(Cement/Sand) |
≤1:3~5 |
|
Max. Aggregate Size |
Φ10 mm |
|
Conveying Hose Inner Diameter |
Φ38/Φ50mm |
|
Conveying Pressure |
0.2-0.4MPa(29-58PSI) |
|
Air Consumption for conveying material |
5~6m3/min(180-215CFM) |
|
Material Charging Height |
0.9m |
|
Rotor Speed |
14r/min |
|
Motor Power |
3kW(4hp),IP55 |
|
Available Voltage |
220V,380V,440V,660V 50Hz/60Hz |
|
Overall Dimension(length×width×height) |
1.13×0.54×1.02m |
|
Net Weight |
430kg |

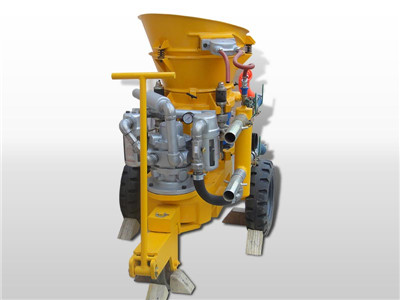

Air Motor Driven
|
Output Capacity |
1.5-3m3 /h |
|
Max. Horizontal Conveying Distance |
200m |
|
Suitable Mix Ratio(Cement/Sand) |
≤1:3~5 |
|
Max. Aggregate Size |
Φ10 mm |
|
Conveying Hose Inner Diameter |
Φ50mm |
|
Conveying Pressure |
0.2-0.4MPa(29-58PSI) |
|
Air Consumption for conveying material |
5~6m3/min(180-215CFM) |
|
Air Motor Air Pressure |
0.5MPa(71PSI) |
|
Material Charging Height |
0.9m |
|
Rotor Speed |
14r/min |
|
Air Motor Type |
TMH3.2 |
|
Air Motor Air Consumption |
4.8m3/min(171CFM) |
|
Overall Dimension(length×width×height) |
1.13×0.54×1.02m |
|
Net Weight |
430kg(947lbs) |
Diesel Driven
|
Rated Output |
2-3m 3 /h |
|
Max. Horizontal Conveying Distance |
200m |
|
Suitable Mix Ratio(Cement/Sand) |
≤ 1: 3~5 |
|
Max. Aggregate Size |
Φ 10 mm |
|
Conveying Hose Inner Diameter |
38/51mm |
|
Operating air Pressure |
0.2-0.4MPa(29-58PSI) |
|
Air Consumption |
5~6m 3 /min(180-215CFM |
|
Diesel Engine |
10hp,2200rpm |
|
Diesel Engine Starting |
Electric start |
|
Clutch Type in Diesel Engine |
Automatic Clutch |
|
Material Charging Height |
0.9m |
|
Rotor Speed |
9-13r/min |
|
Overall Dimension(L× W× H) |
1.8× 0.8× 1.2m |
|
Net Weight |
480kg |
