High volume grout pump for bentonite slag and cement

2021-08-31 16:58:45

High volume grout pump for bentonite slag and cement
We are a professional manufacturer of high volume grout pump for bentonite slag and cement.

1. The high volume grout pump for bentonite slag and cement should have a larger displacement adjustment range. Generally, the final grouting volume and the grouting variation are about 8-10 times.
2. The high volume grout pump for bentonite slag and cement should have the performance of changing the grouting pressure and automatically adjusting the discharge volume. Because the grouting "filling and compaction" will form over pressure, the pump should reduce the displacement in time to reduce the flow resistance of the grout in the gap, so as to avoid the occurrence of construction accidents such as grouting and fracturing, pavement bulge, and so on.
3. The operation and maintenance of the high volume grout pump for bentonite slag and cement should be simple, safe and reliable. Since the mud used by the grouting pump is easy to settle and solidify, the grouting pump should be preventively maintained before grouting, and it must be ensured that there is no pause during each grouting.
 High volume grout pump for bentonite slag and cement
As a grouting equipment manufacturer, after years of technology development and experience accumulation, Lead Equipment Co., Ltd. has taken the lead in China's high-quality grouting pump industry. Therefore, our products have quality assurance, and customers can rest assured to choose us. For example:

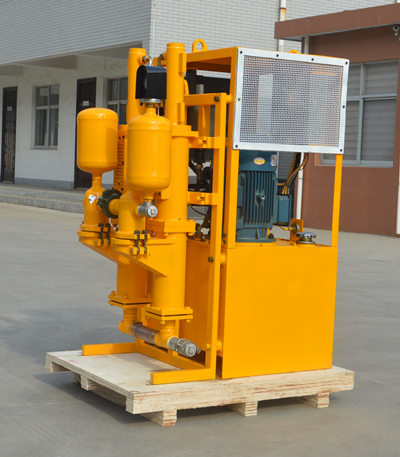

LGM80/50PLD-E grout pump for bentonite slag and cement is designed with two low-wear plunger pump. With the features of double acting, ball valves, low pressure surge, variable pressure and flow. Its adjustable pressure range from 0-50bar, its adjustable rated flow is 80L/min, and its power unit is 11Kw.


High volume grout pump for bentonite slag and cement

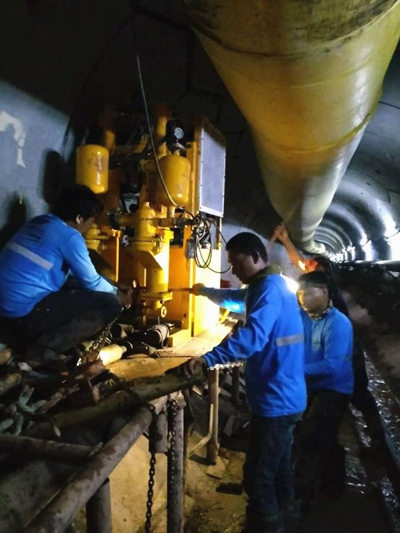

LGM80/50PLD-E grouting pump is mainly used for bentonite slag , cement, all grouting work, up to 8mm particle size , such as, for the pumping of backfill mortar behind tunnel liners, grouting in soil,earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks,deep well casing, slope line grouting, etc .


High volume grout pump for bentonite slag and cement

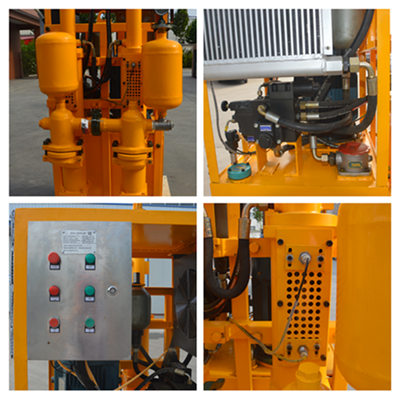

1. Ball valve;
2. Hydraulic drive. Safely releasing pressure when pumping block;
3. Double plungers and acting;
4. Vertical type pump with compact size;
5. Up to 8mm particle size;
6. Low wear plunger system;
7. Low flow pressure surge system;
8. The plunger pump system. Comparing with the piston pump system, the plunger system does not require any close tolerance parts such as cylinders or precise piston seals, etc. The plunger is sealed by a simple maintenance-free seal.


High volume grout pump for bentonite slag and cement


We are a professional manufacturer of high volume grout pump for bentonite slag and cement, our engineer has strong ability for designing and manufacturing the grouting equipment as per your requirement, please tell us detailed requirements:
1. What project will you do with grout pump?
2. What is output and pressure of grout pump?
3. What is the water cement ratio?
4. Which engine do you prefer? if electric engine, please let us know your local voltage.
You can send these questions to our email, email address: sales@leadcrete.com.
