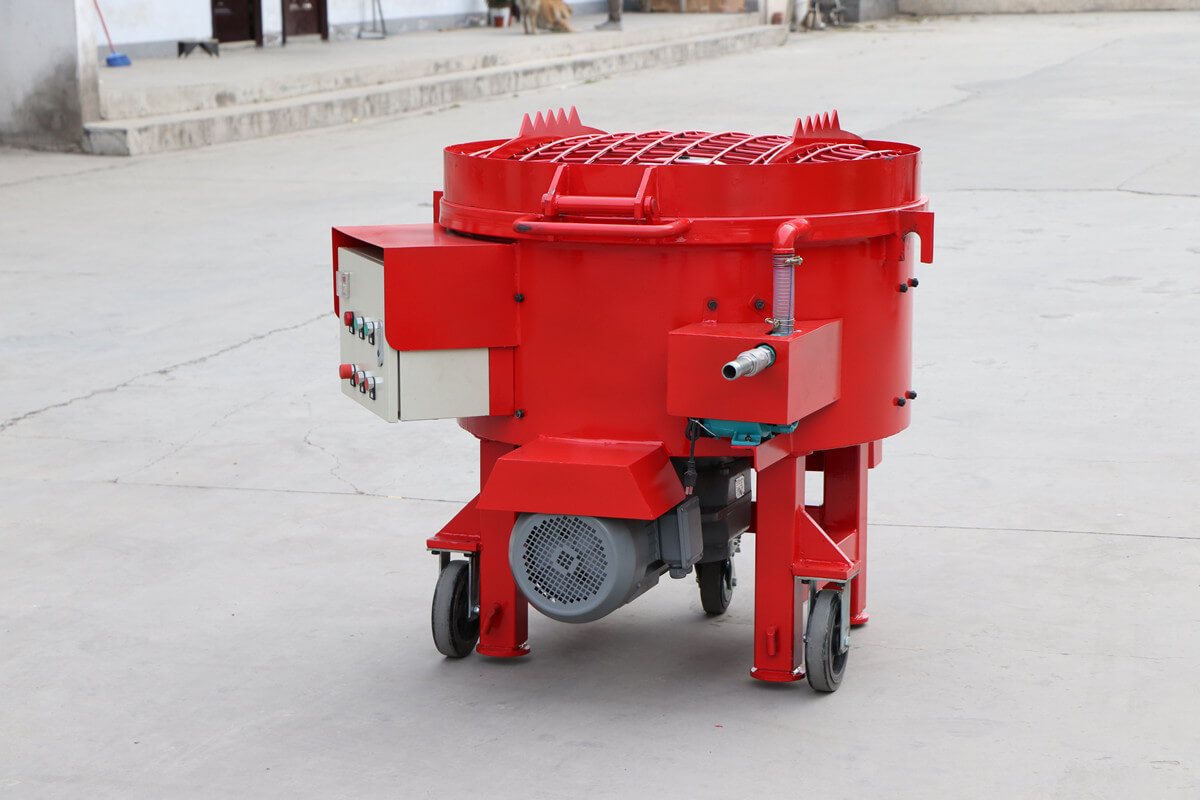

Heavy duty 500kg capacity refractory mixer

2024-10-25 11:29:48

Heavy-duty 500kg capacity refractory mixer is an efficient, stable and durable equipment widely used in the refractory industry.

250kg heavy duty castable refractory mixer


Technical parameters of heavy duty 500kg capacity refractory mixer:
Item LRM100 LRM250 LRM500 LRM800 LRM1000
Mixing capacity 100kg 250kg 500kg 800kg 1000kg
Rotating speed 33rpm 34rpm 36rpm 39rpm 39rpm
Motor Power  4kw 7.5kw 11kw 22Kw 37Kw
Feeding Height 1100mm 1200mm 1300mm 2500mm 2100mm
Dimensions (mm) 1400x1300x1100 1480x1380x1230 1700x1250x1350 2800x1880x2640mm 1600x1500x2140mm
Weight 550kg 650kg 1010kg 1350kg 1680Kg
Note: Technical data of heavy duty refractory mixers may change due to technical progress, subject to modification without notice.


250kg heavy duty refractory mixer


500kg mixing capacity refractory pan mixer


Features and advantages of 500kg mixing capacity heavy duty refractory mixer:
Large capacity: The 500kg capacity enables the mixer to handle a large amount of refractory raw materials and improve production efficiency.
Heavy-duty structure: The heavy-duty structure design can withstand high loads and heavy loads, ensuring the stability and durability of the equipment.
Efficient mixing: The internal design of the mixer is reasonable, and the shape and angle of the mixing blades are optimized to achieve efficient and uniform mixing effects.
Easy to operate: It is usually equipped with an advanced control system and a user-friendly operating interface, making the operation easier and faster.
Easy maintenance: The mixer has a reasonable structural design and is easy to disassemble and clean, reducing maintenance costs and time.

heavy duty 500kg capacity refractory mixer


heavy duty refractory castable mixer


Heavy-duty 500kg capacity refractory mixer has a wide range of applications in many fields. The following is a detailed description of its application areas:
1. Refractory production
Refractory brick manufacturing: In the production process of refractory bricks, various refractory raw materials need to be mixed. The heavy-duty 500kg capacity refractory mixer can efficiently mix these raw materials to ensure the quality and performance of refractory bricks.
Refractory castable preparation: Refractory castable is a commonly used refractory material, and its preparation process requires precise raw material ratio and mixing. The mixer can meet this demand and ensure the uniformity and stability of the refractory castable.
2. Iron and steel smelting
Blast furnace refractory maintenance: During the operation of the blast furnace, the refractory materials need to be frequently maintained and replaced. The heavy-duty 500kg capacity refractory mixer can be used to prepare the refractory materials required for the blast furnace, such as high-alumina bricks, aluminum silicate bricks, etc., to ensure the stable operation of the blast furnace.
Preparation of refractory lining for steel ladle and iron ladle: Steel ladle and iron ladle are important containers in the process of steel smelting, and the preparation of their refractory lining requires high-quality refractory materials. This mixer can be used to mix and prepare these refractory materials to ensure the high-temperature resistance and safety of the container.
3. Ceramic Industry
Preparation of refractory materials for ceramic kilns: Ceramic kilns are key equipment in the ceramic production process, and the preparation of their refractory materials requires a high-quality mixer. The heavy-duty 500 kg capacity refractory material mixer can be used to mix and prepare refractory materials required for ceramic kilns, such as refractory bricks, refractory coatings, etc.
Mixing of ceramic raw materials: In the process of ceramic production, various raw materials need to be mixed to prepare ceramic blanks. This mixer can also be used in this link to ensure the uniformity and stability of ceramic blanks.
4. Other fields
Glass industry: In the process of glass production, refractory materials also play an important role. The heavy-duty 500 kg capacity refractory material mixer can be used to prepare refractory materials required for glass kilns, such as refractory bricks, refractory coatings, etc.
Cement industry: Refractory materials are also needed in the cement production process, such as refractory bricks, refractory castables, etc. This mixer can also be used for the preparation and mixing of these refractory materials.

heavy duty refractory pan mixer


Wear-resistant refractory castable pan mixer


Wear-resistant refractory mixer


In summary, the heavy-duty 500 kg capacity refractory mixer is widely used in refractory production, steel smelting, ceramic industry and other fields. Its high efficiency, stability and durability make it one of the indispensable equipment in these fields. Any interst, please contact us by Email address: sales@leadcrete.com
