Grout pump with mixer for ground anchor grouting

2024-11-22 18:51:17

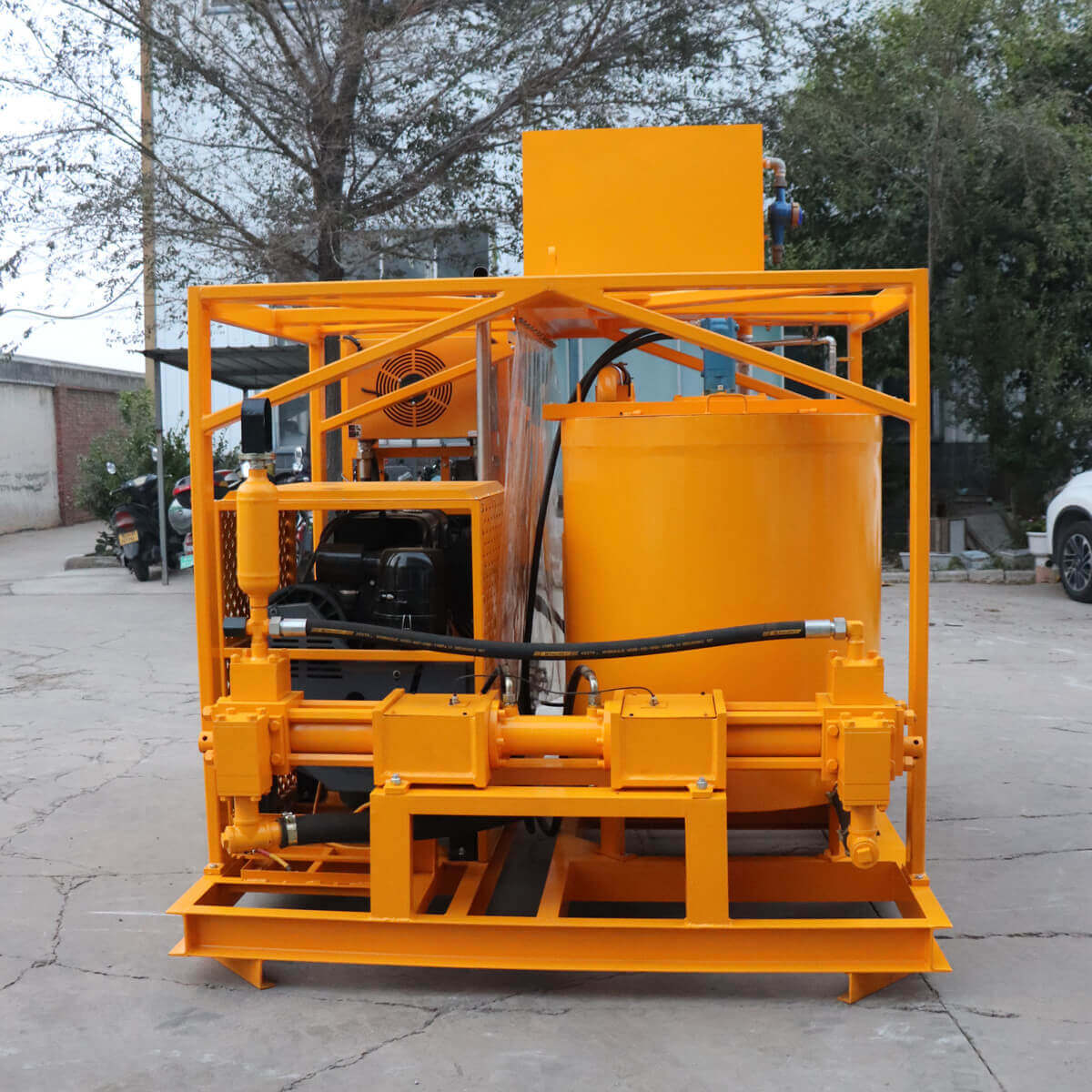

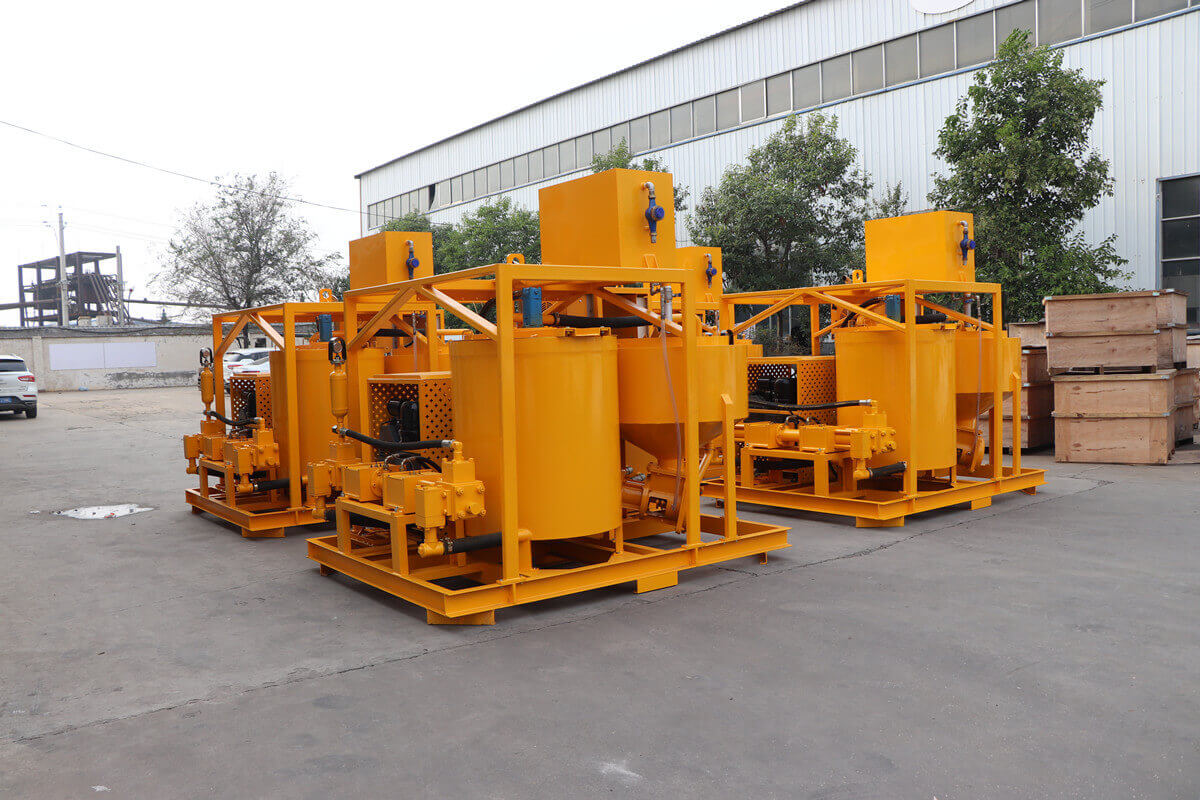

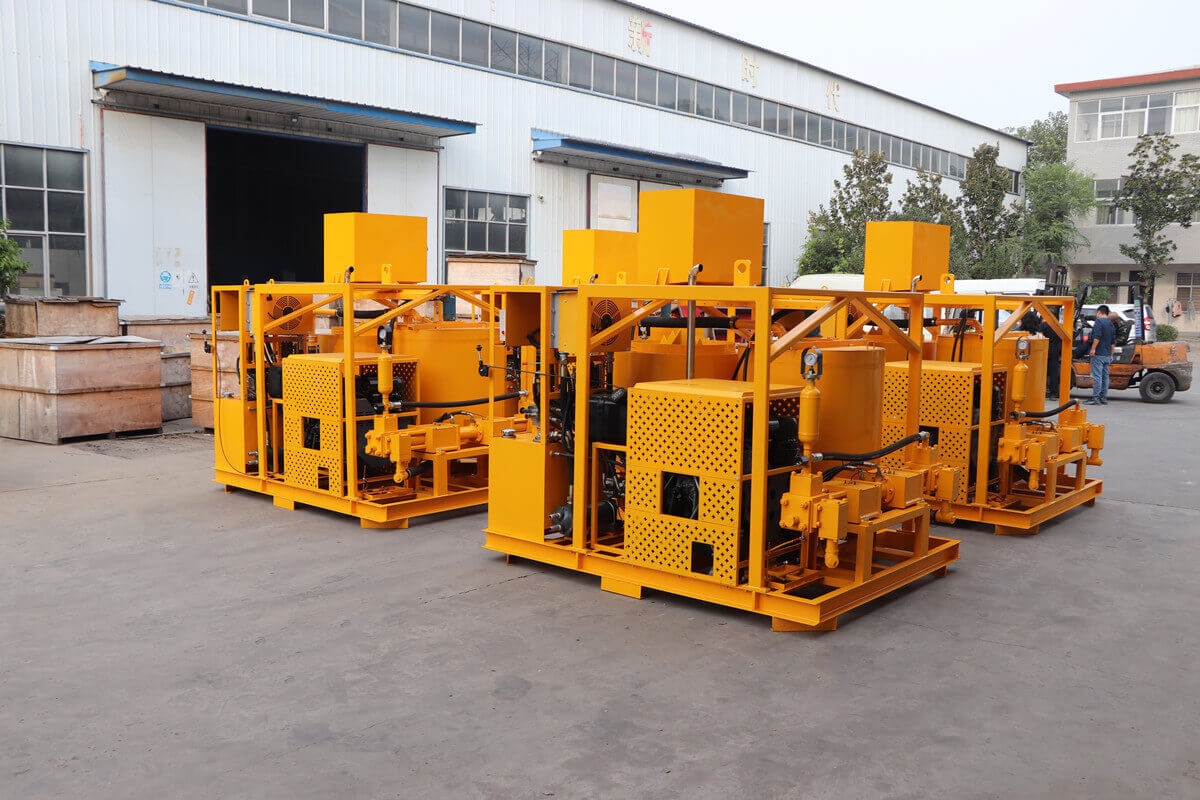

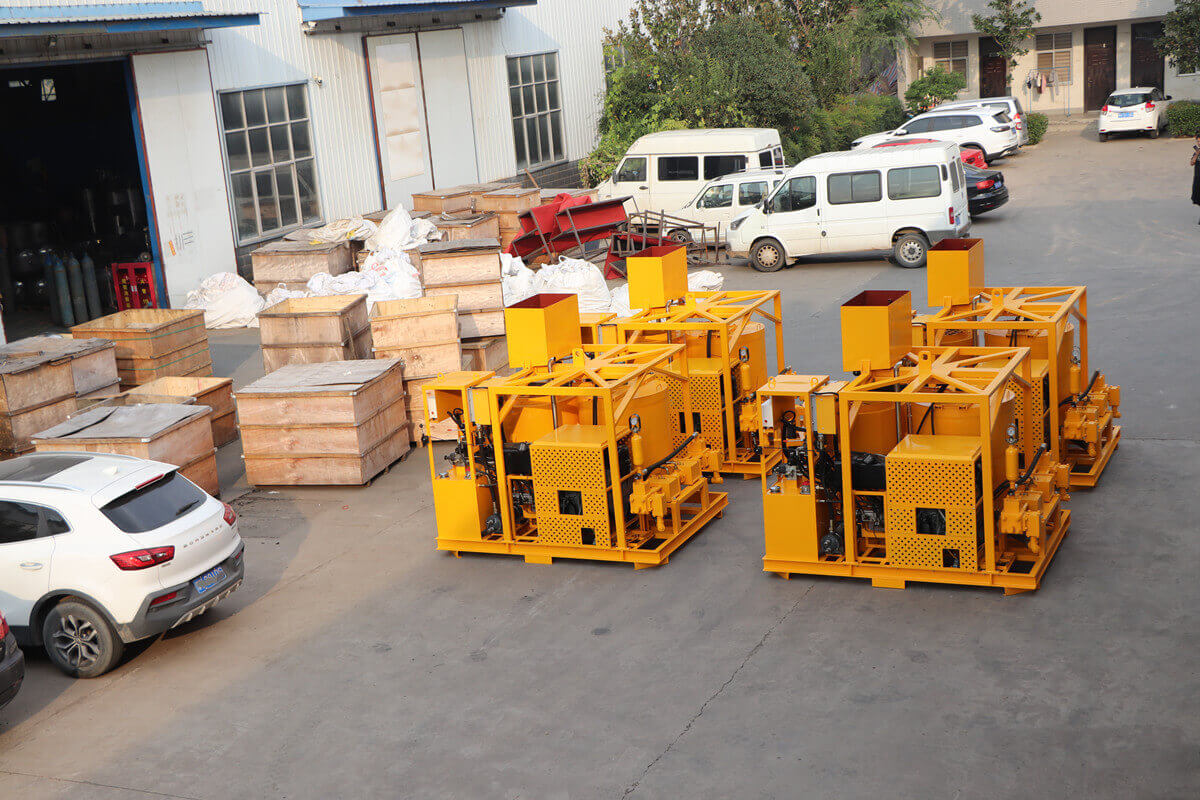

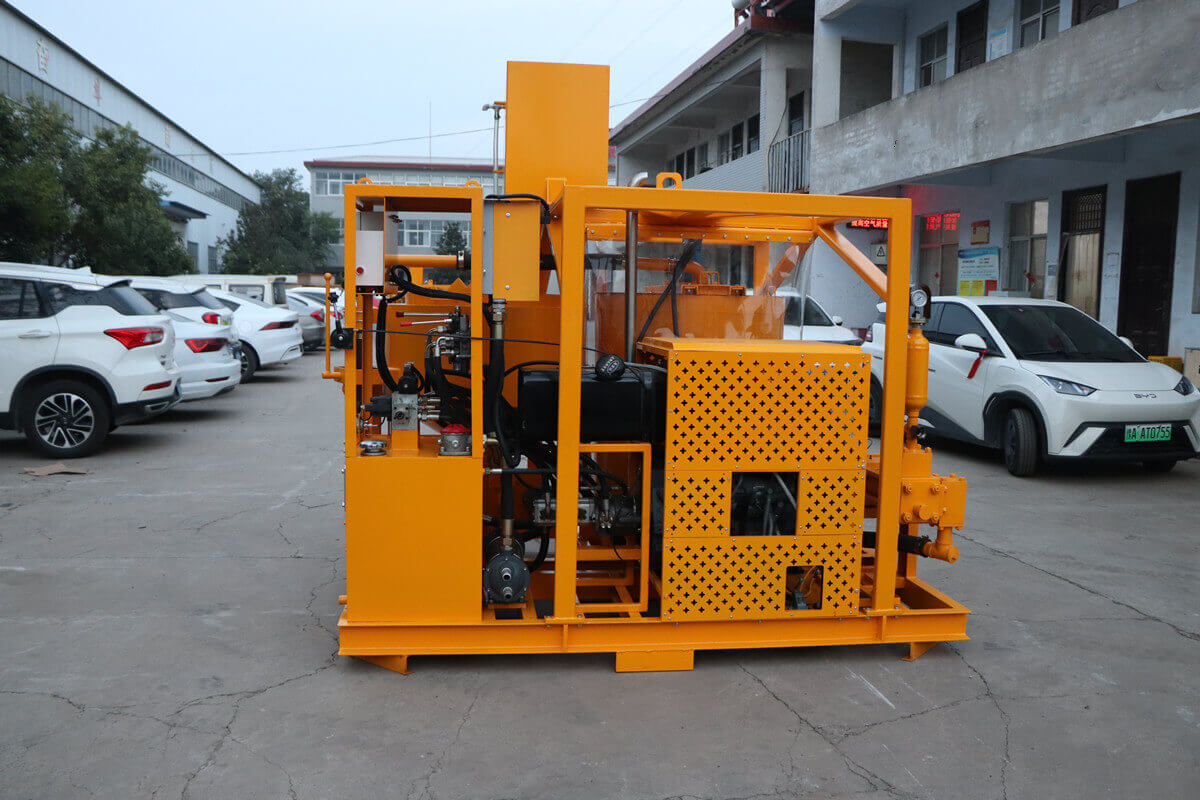

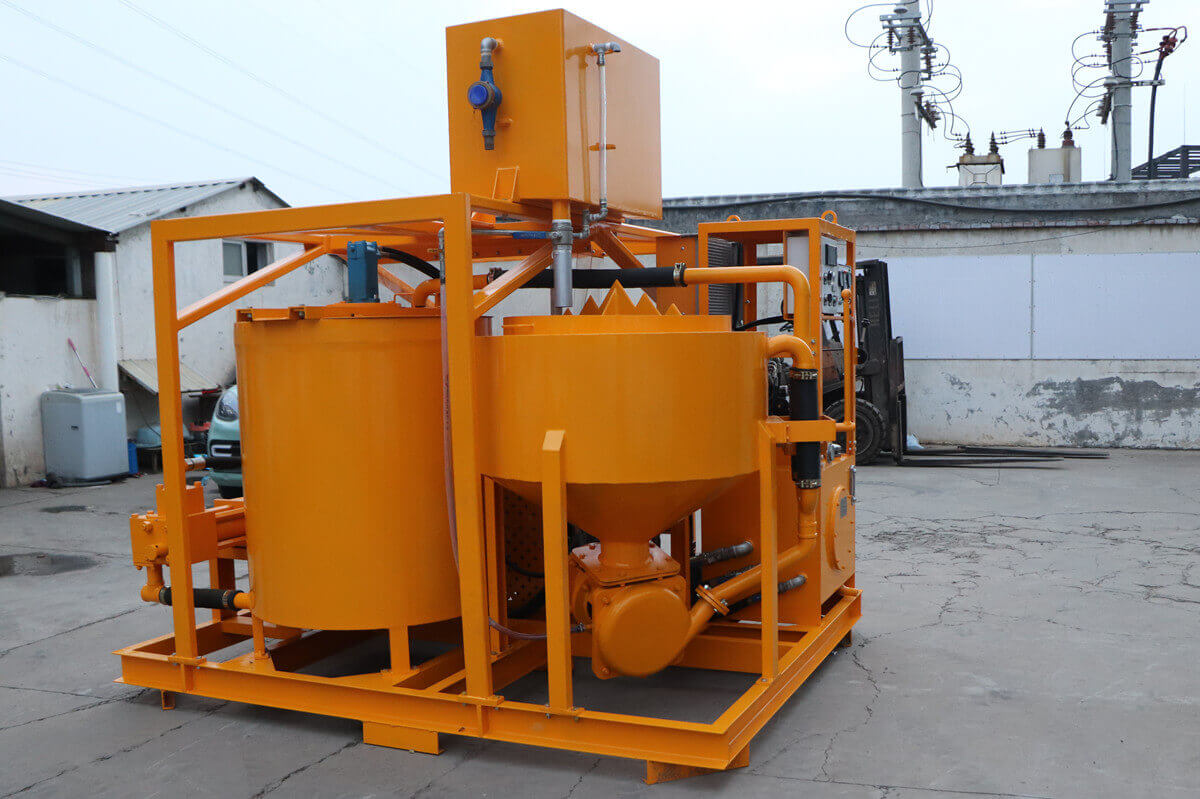

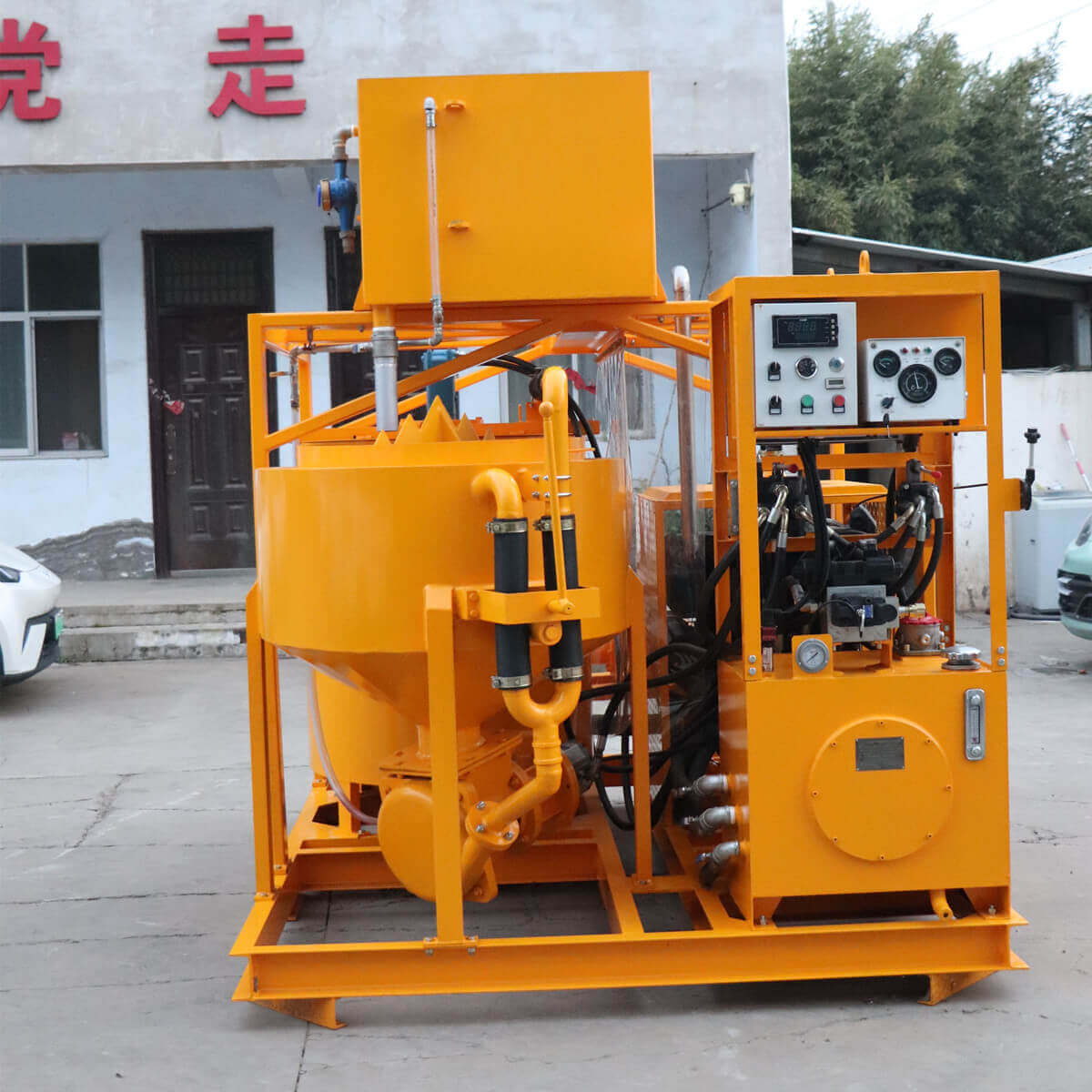

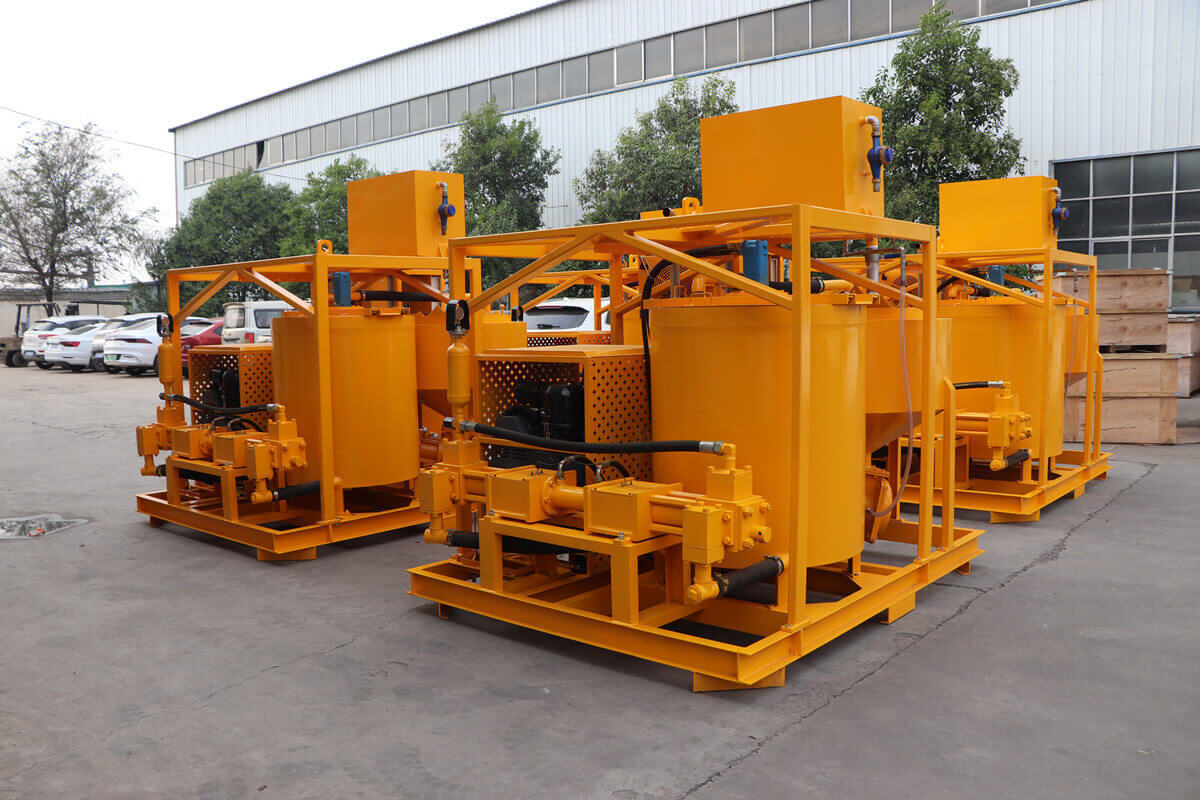

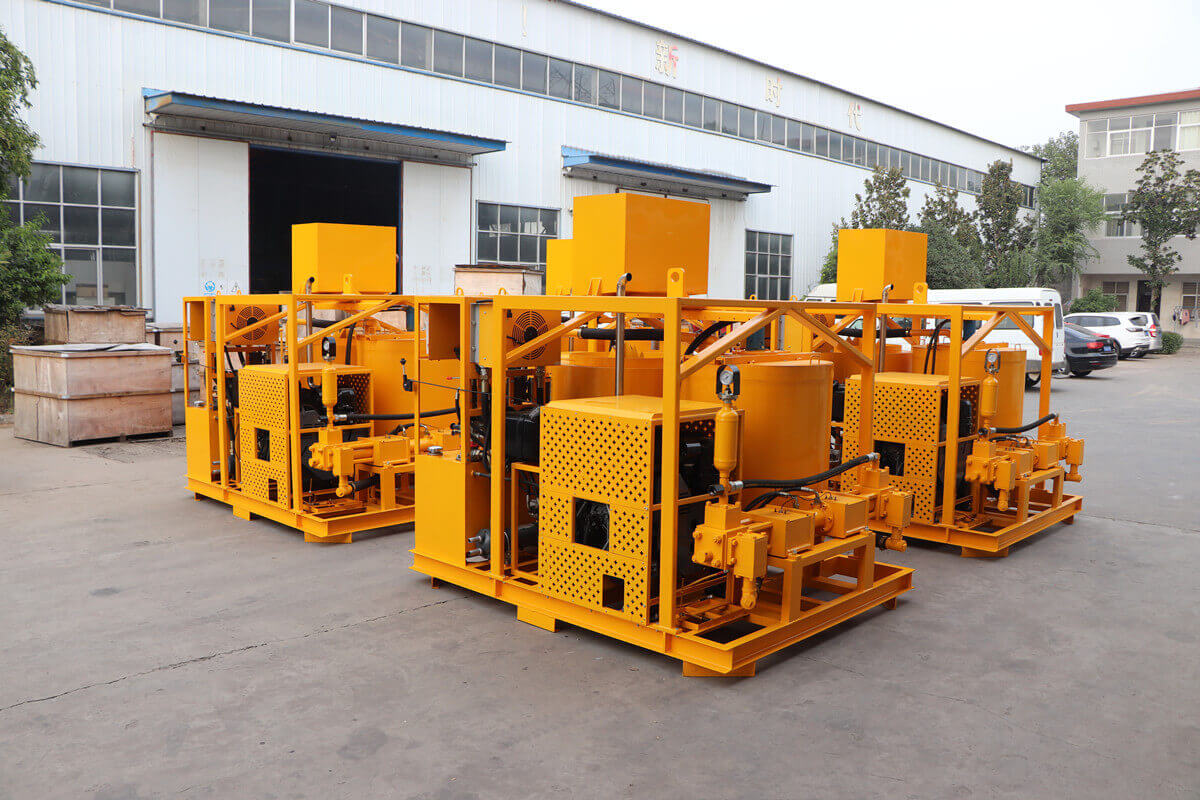

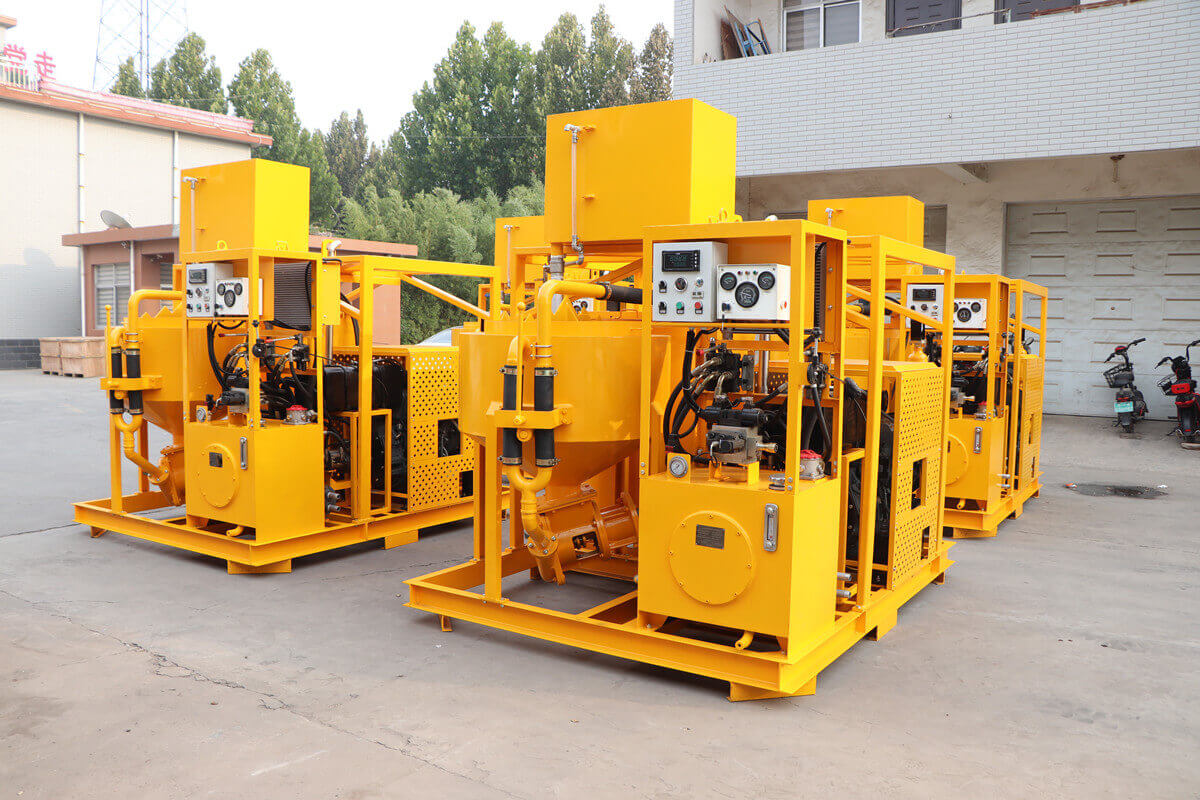

LGP400/700/80/100DPI-D grout pump with mixer is a combination of agitator, mixer and grout pump on a base. The grout pump with mixer combination equipment is an important piece of equipment in ground anchoring operations. It can inject cement grout or other grouting materials into the foundation or rock at high pressure to enhance the stability of the foundation or fix anchors and other equipment.

It is equipped with a high-speed grouting mixer with a mixer volume of 400L and a mixer volume of 700L. Grouting pressure and displacement are adjustable, grouting pressure is 0-100Bar, grouting flow is 0-80L/min, and the grouting mixer is a vortex mixer, which can ensure uniform and rapid mixing of cement grout. It has the characteristics of easy operation, high efficiency and stable pressure.

LGP400/700/80/100DPI-D grout pump with mixer for ground anchor grouting features:

1. Compact structure: The colloidal grout pump with mixer equipment is small in size and easy to operate. It also takes up very little space. The colloid grouting mixing equipment is small in size and easy to operate. It also takes up very little space.

2. Hydraulic drive: Full hydraulic drive grout pump with mixer, three-cylinder air-cooled diesel engine as a general grouting application.

3. High-pressure performance: Pressure and displacement are adjustable. Low pressure: 0-80L/min, 0-40bar; high pressure: 0-40L/min, 0-100bar, ensuring that the grouting material can penetrate into the tiny cracks of the foundation or rock.

4. Mixing efficiency: Mixer speed is 1500 rpm, which can quickly and evenly stir the grouting material to avoid precipitation or stratification.

5. Durability: Since the ground anchoring working environment is usually harsh, the equipment has good durability and reliability, easy operation and maintenance to ensure long-term stable operation.

6. High-quality hydraulic system: Air cooling and water cooling are adopted.

7. Particle size: up to 5mm

8. Oil temperature gauge: The cooling fan can be automatically controlled to work within the normal temperature range, and the machine automatically stops working when the temperature is too high.

9. Plunger pump: Double-cylinder plunger pump, single-acting, ensures continuous flow of slurry (small pulsation), less prone to slurry leakage than double-acting plunger pump.

10. Mixer switching method: The function switching with the slurry-making machine is achieved by a squeeze switch.

In summary, choosing a suitable ground anchoring grouting plant equipment is crucial for ground anchoring operations. LGP400/700/80/100DPI-D compact grout pump with mixer can also be mainly used to prepare bentonite slurry, cement slurry, etc., and is used in ground and underground projects such as roads, railways, hydropower, construction, and mining. If you are interested in our grouting pump station, please contact us directly at: sales@leadcrete.com
