■Introduction

► Description:

LGP250/350/100DPI-D jet grout mixer plant is is an updated machine, based on the existing grouting station, as well as, is a combination of mixer, agitator and grout pump in one base frame. It is with colloidal high speed grout mixer, the grout mixer volume is 250L, grout agitator volume is 350L. The grout pump is double cylinders piston pump. Grout pump pressure is 0-100Bar, grout pump output is 0-100L/min.

High-speed, high-shear colloidal mixer cause a vortex flow to ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The injection grouting system is hydraulic drive with electric motor.
Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.

If you want to know more details about our jet grout mixer plant, you can contact us directly, email address: sales@leadcrete.com.

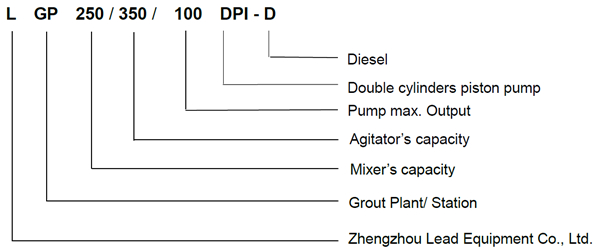

Model Definition of LGP250/350/100DPI-D jet grout mixer plant:

jet grout mixer plant

► Application:

LGP250/350/100DPI-D jet grout mixer plant is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.

► Features:

1. Diesel and full hydraulic driven.

2. PLC and HMI control.

3. Mixer and agitator switch is a squeeze handle that is easy to operate and reliable.

4. Double cylinders piston pump to ensure the continuous slurry flowing (small pulse) and not easily leaking compared with the double acting piston pump.

5. Grouting pressure and output are step-less adjustable.

6. Over hydraulic oil temperature protection.

7. With function of record and display grouting pump reciprocating times by a counter.

8. Solid state relay.

Main component of injection grouting system:

jet grout mixer plant

■Product Details

Grouting pump

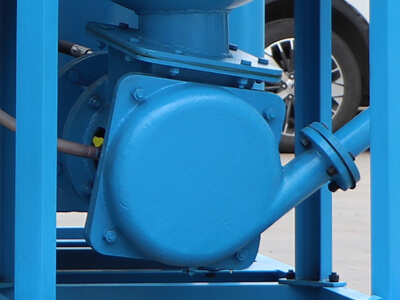

Centrifugal pump

Air cooler

Electric cabinet

PLC and HMI (Human Machine Interaction) control

■Technical Parameters

Type		LGP250/350/100DPI-D jet grout mixer plant
Diesel engine		25Kw@ 2200r/min
Mixer	Volume	250L
Mixer	Speed	1500rpm
Agitator	Volume	350L
Agitator	Speed	36rpm
Grouting pump	Type	Hydraulic two cylinder piston pump
	Pump pressure	0-100bar
	Pump output	0-100L/min
Dimension	Dimension	2500×2200×1820mm
Dimension	Weight	1550kg
