LM400D High Speed Grout Mixer

  • Tank Capacity:W/C Ratio
  • 400L:≥0.45
  • Mixing time:3min
  • Outlet pressure:1bar
  • Impeller speed:1500rpm
  • Diesel Power:10Hp

  • diesel cement grout mixer agitator
  • grout mixer agitator
  • high speed grout agitator
  • high speed diesel grout mixer agitator
  • high speed grout mixer
Shotcrete Machine
Grouting Equipment
Industrial Peristaltic Pump
Plaster Machine
Soil Spraying Machine
Concrete Pump
hydraulic pump station
Foam Concrete Machine

TEL

86-371-63902781

skype:

shotcreter

Email

sales@leadcrete.com

FAX

86-371-63526675

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:
LM400D cement grout mixer is a high speed grout mixer. Diesel agitating mixer has been designed
for use either in conjunction with a conventional paddle mixer and pump or, by virtue of its own built
in impeller pump, as a stand-alone mix and place machine. The
high speed grout mixer will rapidly
and efficiently mix various types of grout which can include cement, bentonite and sand.
LM400D
diesel cement grout mixer agitator is specially design for cement mixing and grouting in  ground/
underground engineering. We also can design the mixer with agitator, to make the mixing work can
continuously be done.


 Application:
LM400D diesel cement grout mixer agitator is specially designed for cement mixing and grouting in
ground/underground engineering. We also can design the mixer with agitator separately, to make the
mixing work continuously.


 Features:

1. High speed mixing.
2. High-efficiency(3min).
3. Simple structure, lightweight, easy maintenance.
4. No wearing parts.
5. High speed mixer and agitator with diesel engine drive.

■Product Details

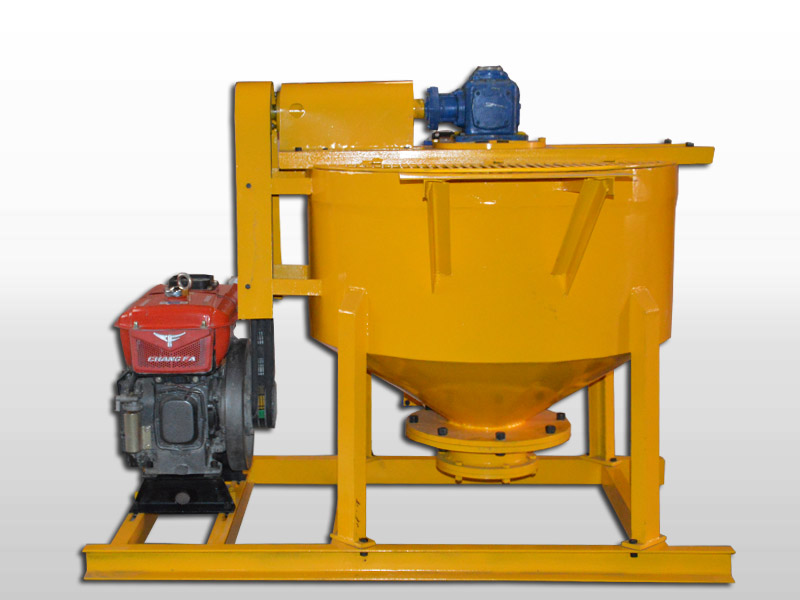

high speed mixer and agitator

LM400D diesel cement grout mixer agitator

mixer and agitator

LM400D high speed mixer and agitator

diesel cement grout mixer agitator

LM400D high speed diesel grout mixer agitator

■Technical Parameters

Technical Data:


Item Technical data
Tank Capacity 400L
W/C Ratio ≥0.45
Mixing time 3min
Outlet pressure 1bar
Impeller speed 1500rpm
Diesel Power 10Hp
Diesel rotating speed 2200rpm
Dimension 1650*1600*1200mm
Weight 300kg
