► Description:

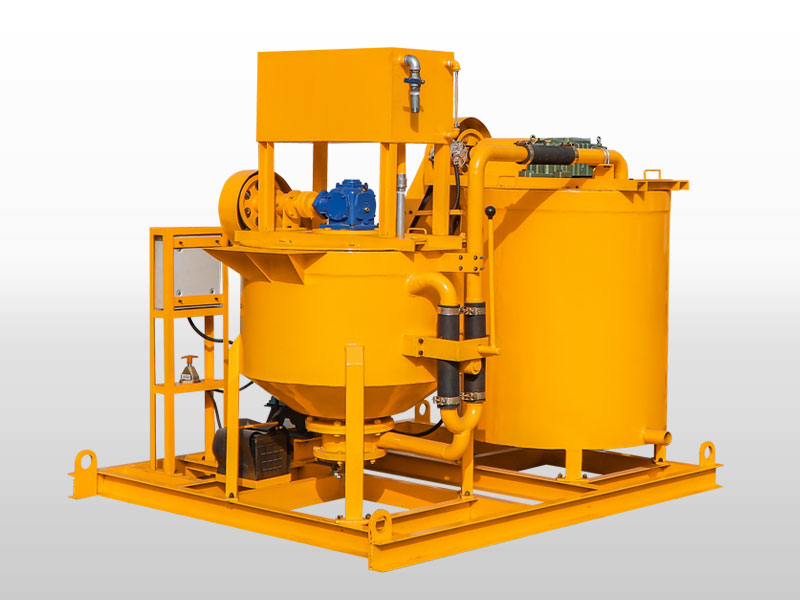

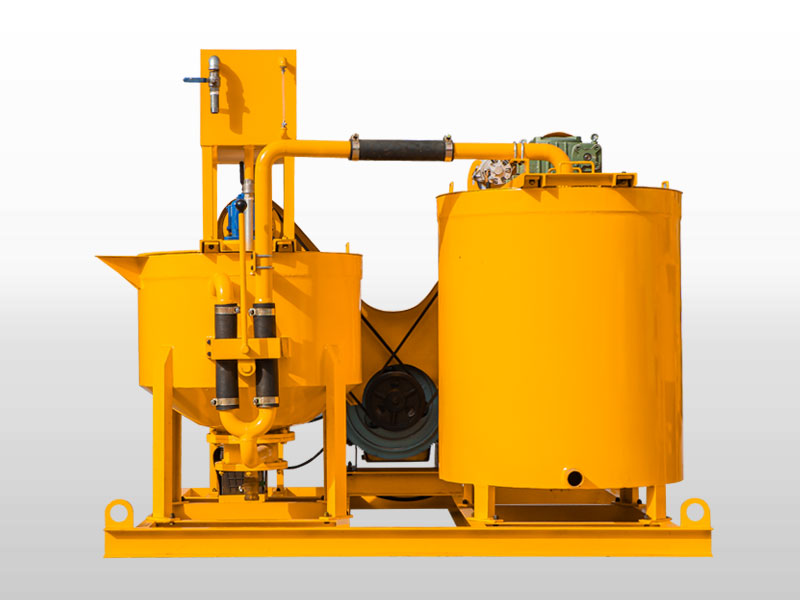

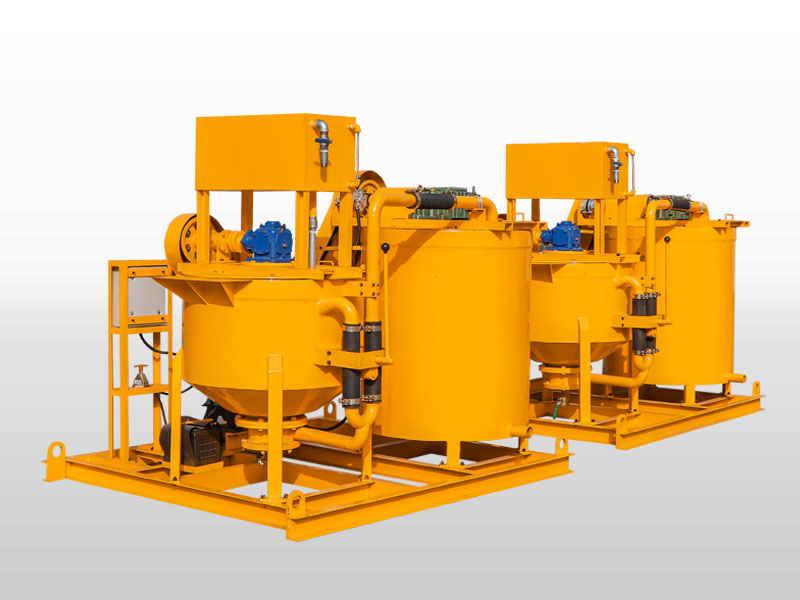

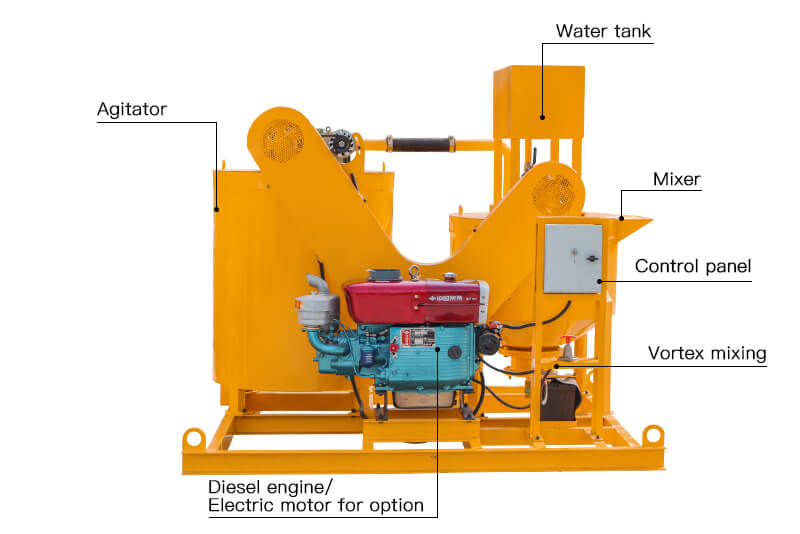

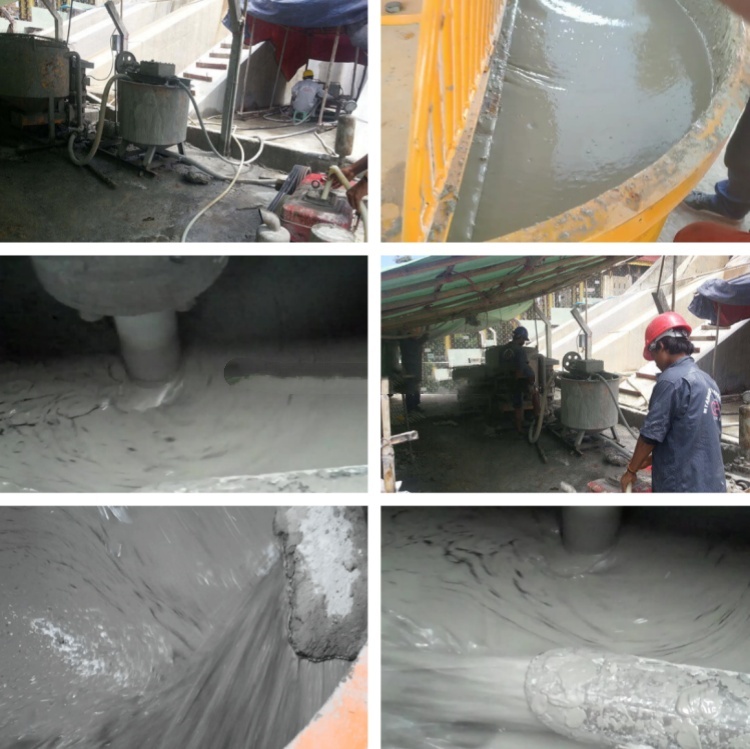

LMA300-650D cement mixer & agitator is a combination of mixer and agitator, cement mixer and agitator is specially design for continuous cement mixing and grouting in ground/underground engineering. It can produce various types of grout, such as water, cement, bentonite and additive could be mixed in the 300L mixer machine, then the mixed slurry can be stored into a 650 liters agitator, thus the mixing work can continuously be done.
► Application:
LMA300-650D diesel grout mixer agitatorcan produce various types of grout, such as water, cement, bentonite and additive could be mixed in the 300L mixer machine, then the mixed slurry can be stored into a 650 liters agitator, thus the mixing work can continuously be done.
► Features:
Ø One-man operation;

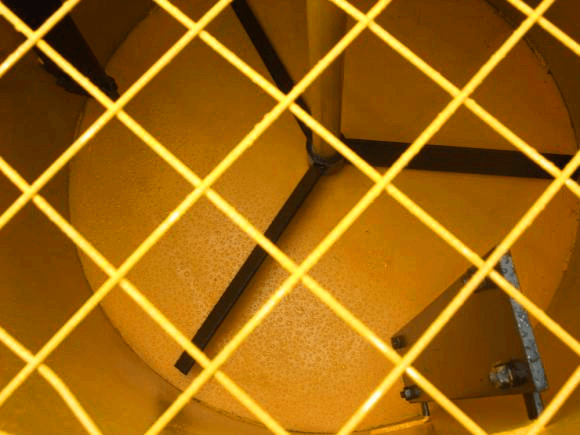

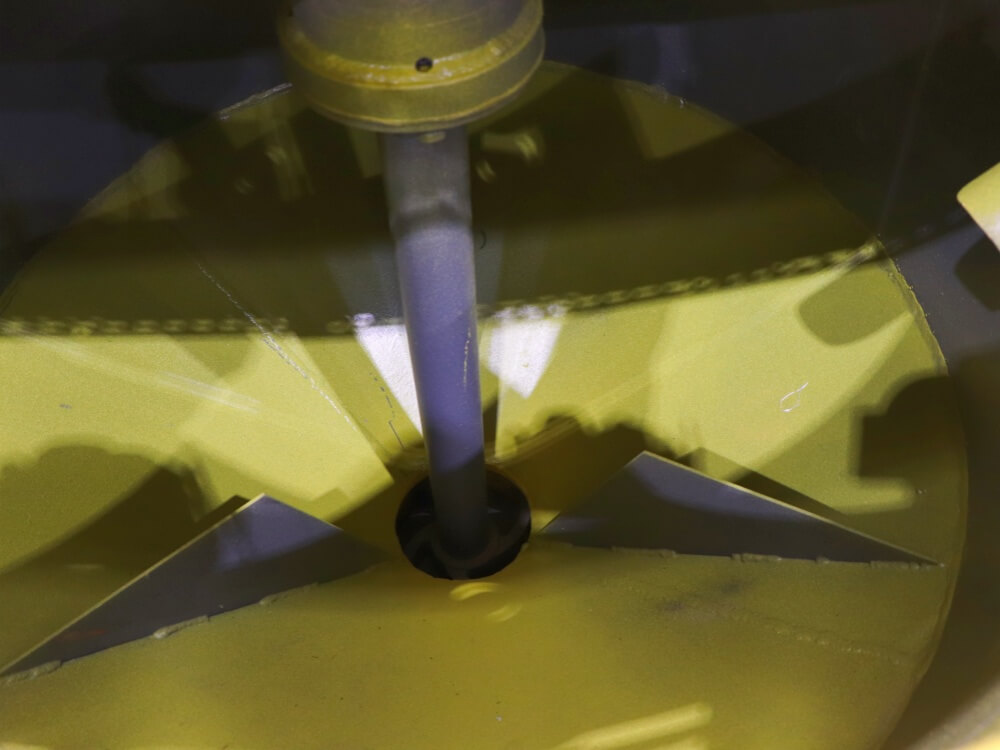

Ø Extremely fast mixing;
Ø No seals to wear out from grout;

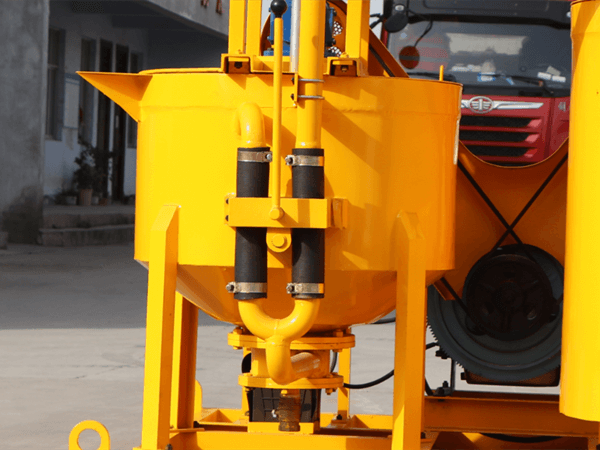

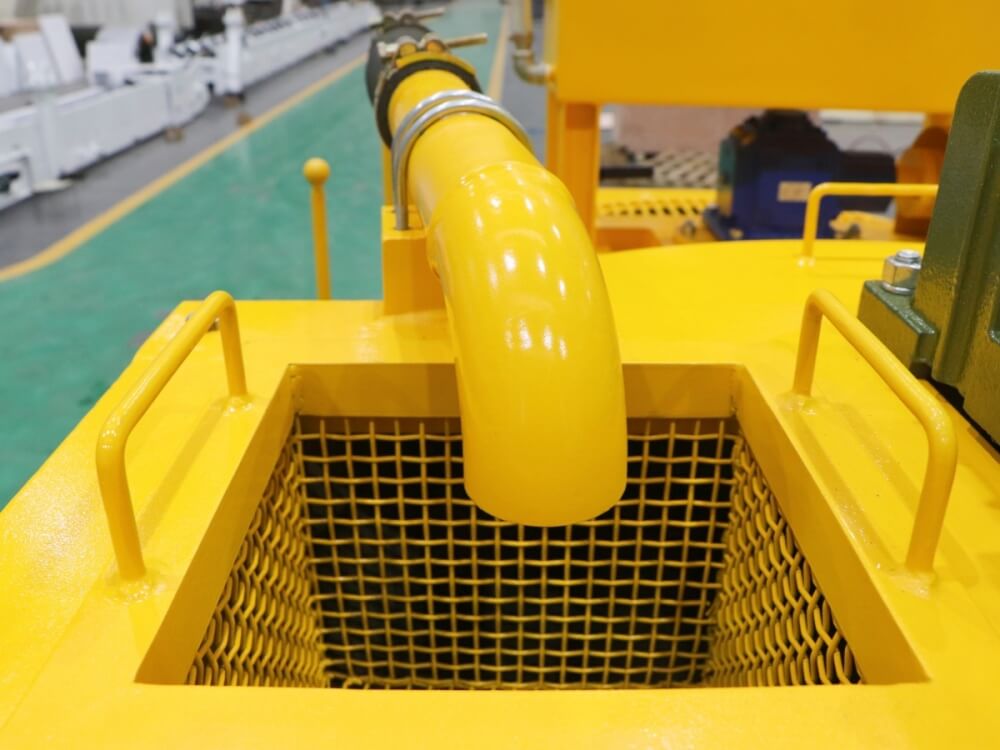

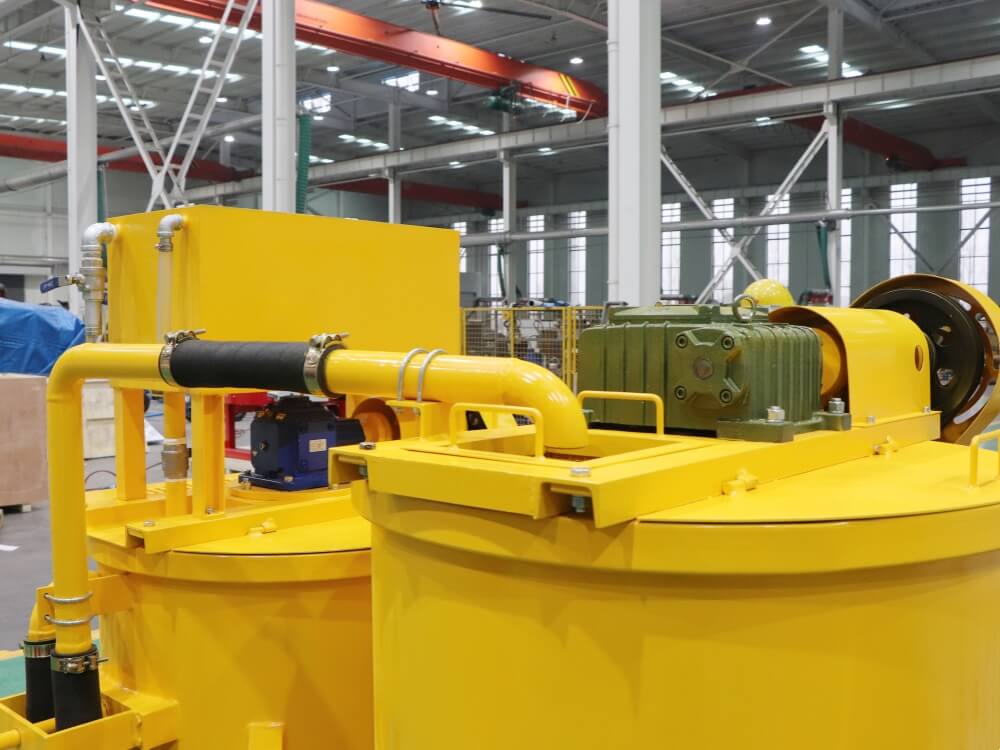

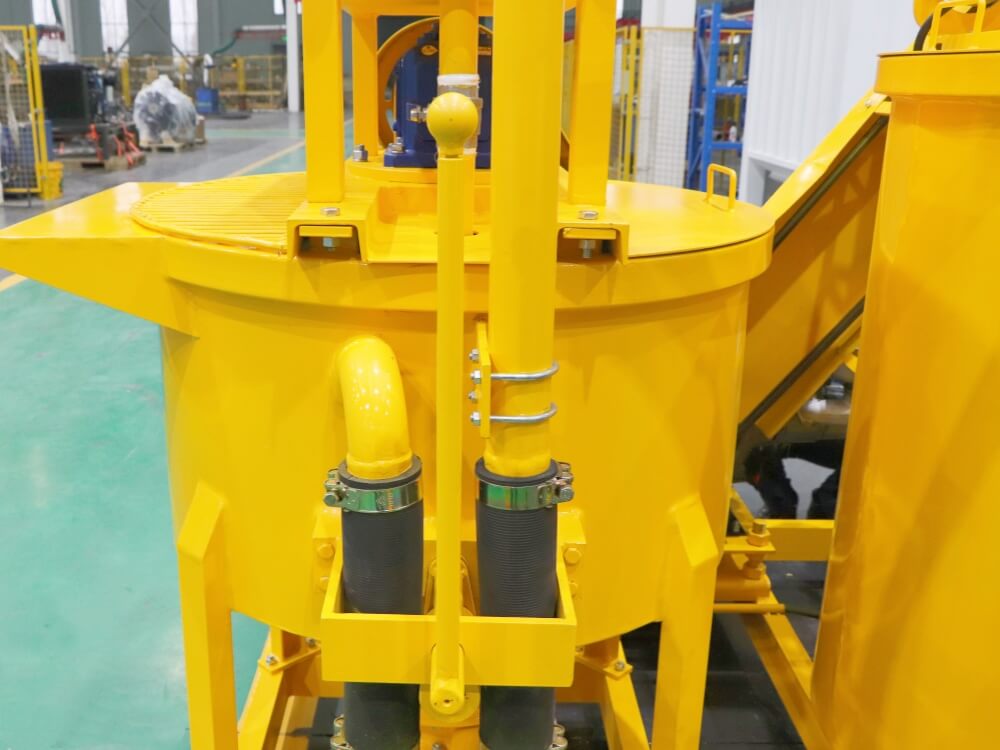

Ø Simple grout transfer from mixer to agitator;
300L Mixer | |||||
Rated capacity | 300 liter | ||||
Acceptable W/C ratio | ≥0.5:1 | ||||
Mixing time | 3 min | ||||
Max emptying speed | 1200L/min | ||||
Mixing speed | 1500rpm | ||||
Weight | 300 kgs | ||||
Overall Dimension | 850mmdiax750mm | ||||
650L Agitator | |||||
Rated capacity | 650 liter | ||||
Rated Rev. | 30rpm | ||||
Weight | 150 kgs | ||||
Overall Dimension | 900mm diax1050mm | ||||

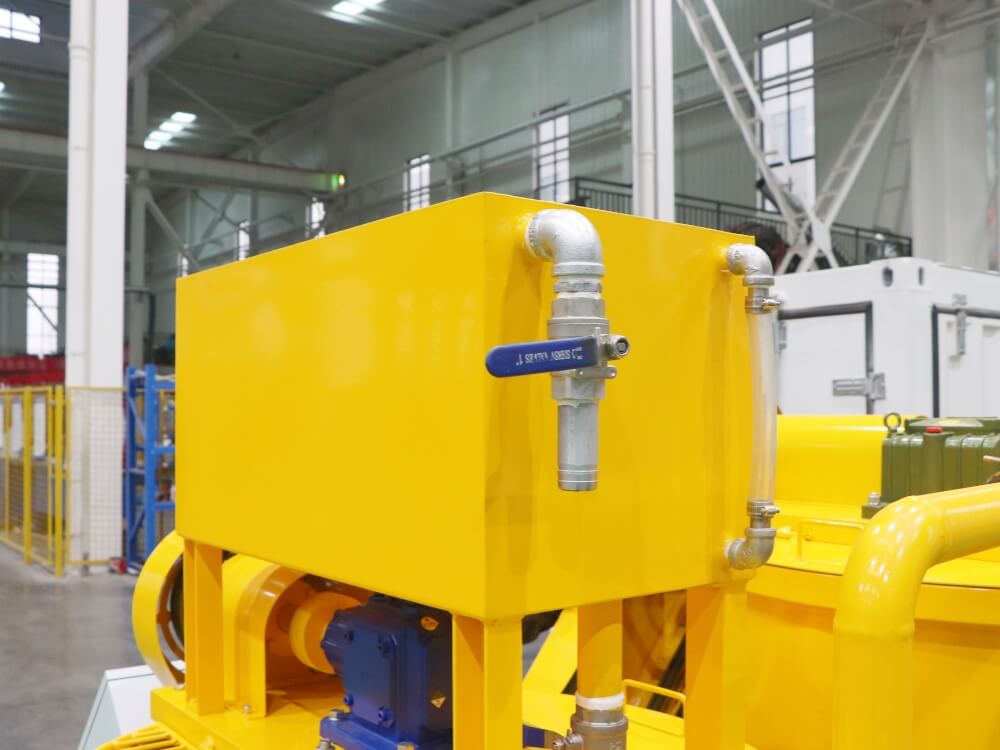

Water tank | |||||
Water tank | 150 liter | ||||
Weight | 50kg | ||||

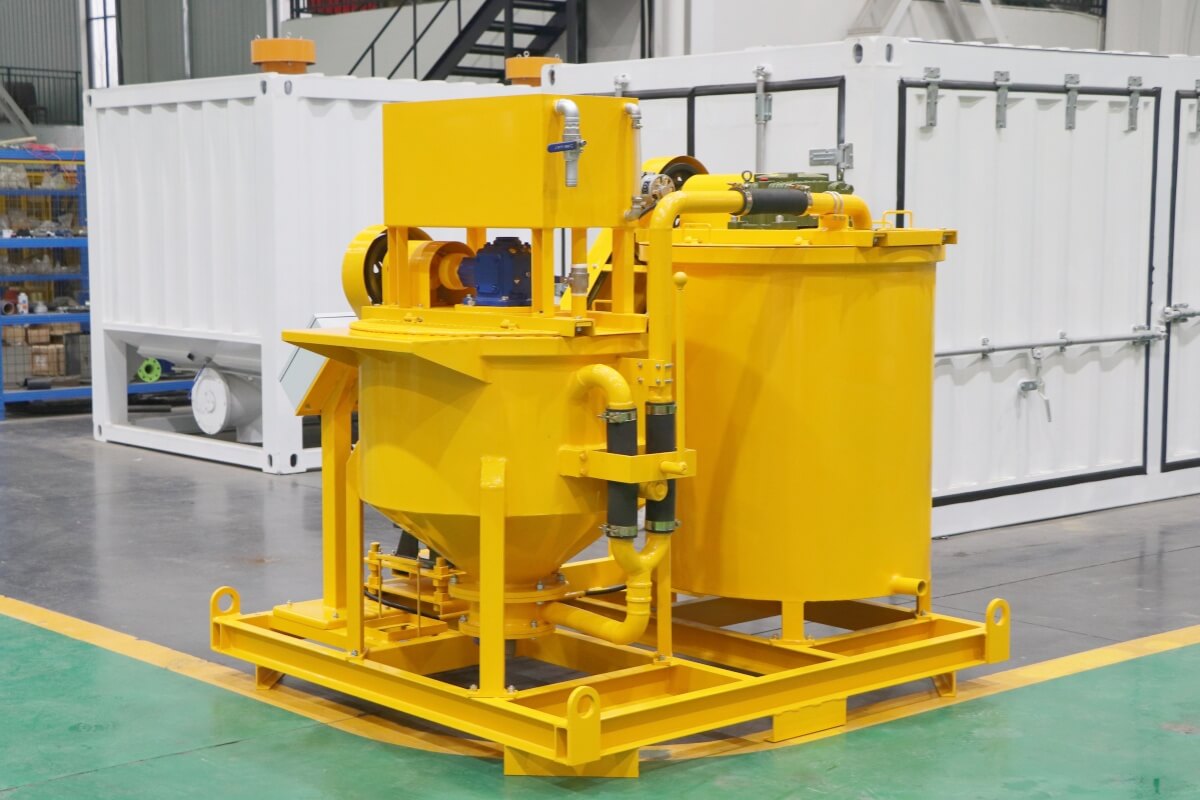

LMA300-650 E/D Grout mixer and agitator | |||||
Power |

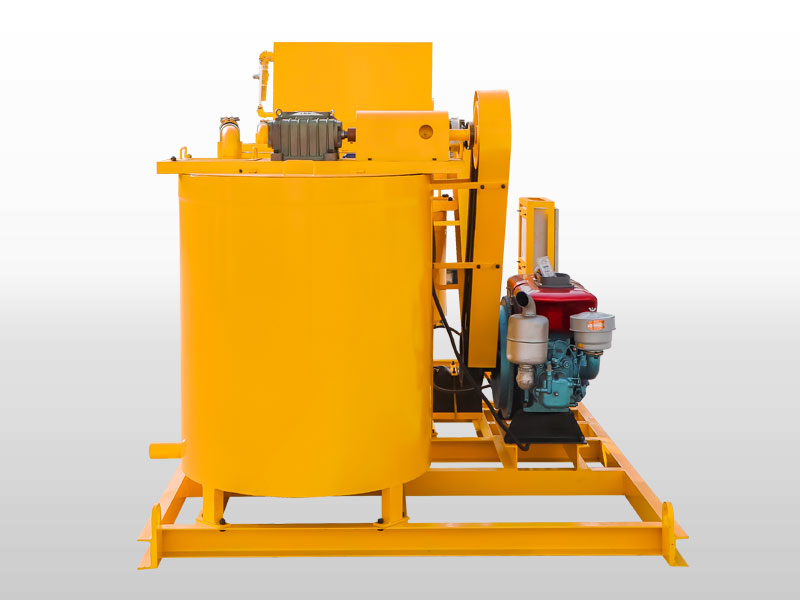

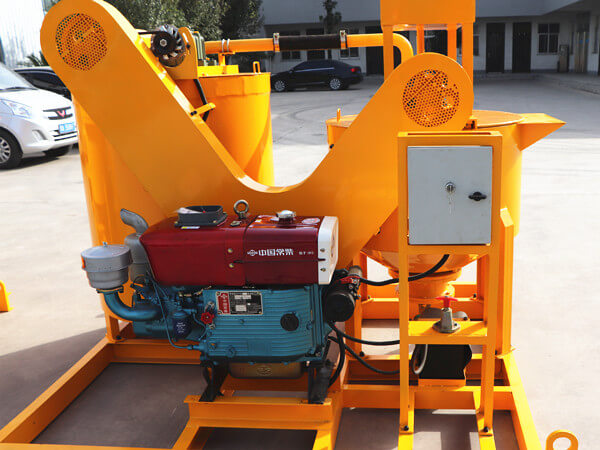

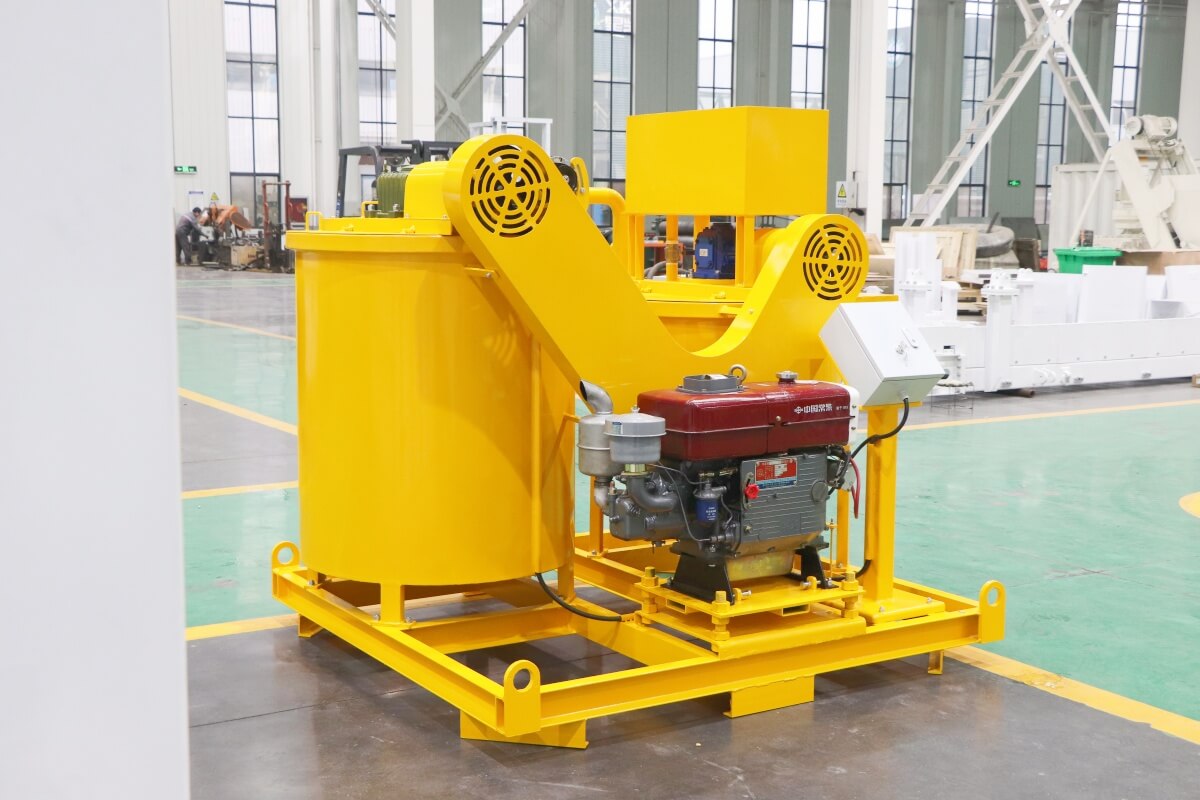

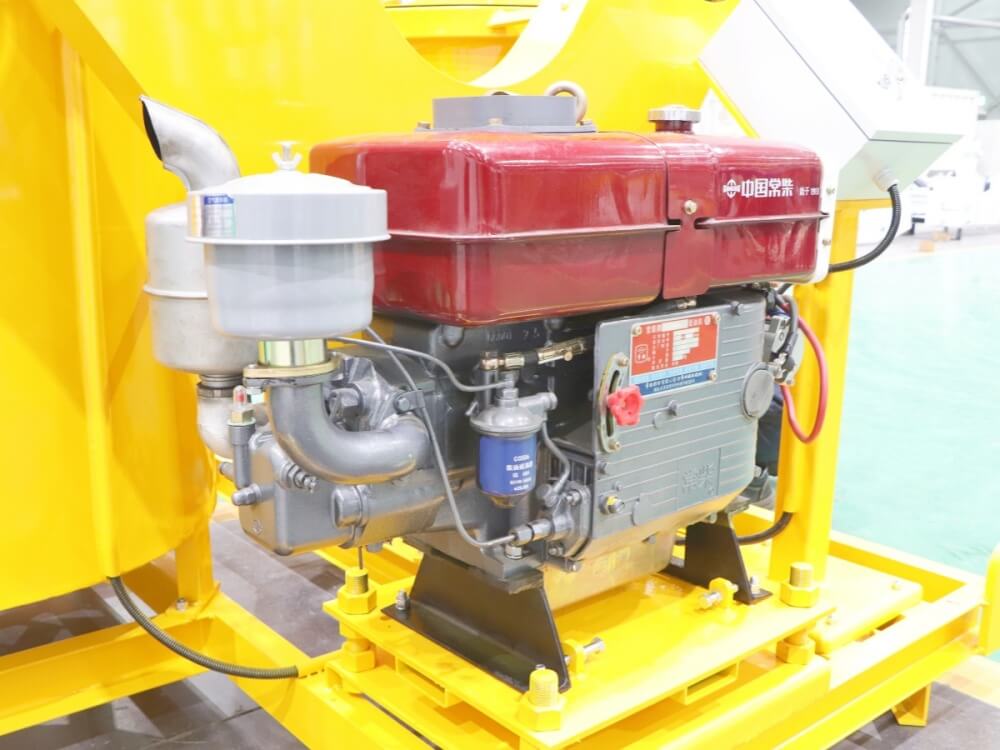

18HP (ZS1105 Changchai diesel engine)
7.5 KW( grout mixer)+1.5KW(Agitator) electric motor(3 phase, 380V, 50HZ)
|
||||
Weight | 750kg |
