LM300E High Shear Grout Mixer (Colloidal Type)

  • Capacity: 300L
  • Output: 1000L/min (metered by water)
  • Impeller speed: 1450rpm
  • Power: 7.5KW
  • Voltage: 3phase, 380V, 50HZ
  • Dimension: 1250x1050x1800mm

  • high shear grout mixer
  • high speed cement grout mixer
  • colloidal grout mixer
  • Colloidal cement grout mixer
  • high shear colloidal grout mixer
  • high speed grout mixer
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

LM300E High Shear Grout Mixer (Colloidal Type) is a high speed high shear colloidal grout mixer. This high shear grout mixer has been designed for use either in conjunction with a conventional paddle mixer and pump or, by virtue of its own built in impeller pump, as a stand-alone mix and place machine.

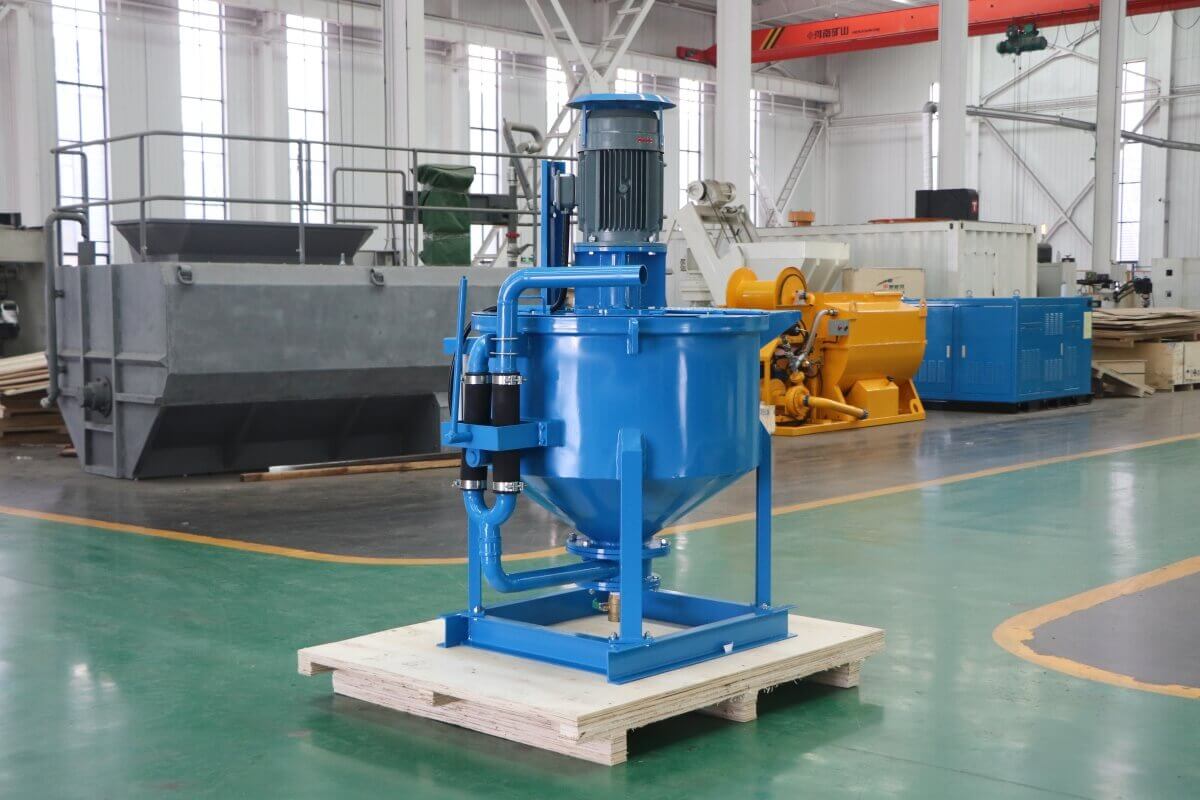

colloidal grout mixer manufacturer


The colloidal grout mixer will rapidly and efficiently mix various types of grout which can include cement, bentonite and sand. It is specially design for cement mixing and grouting in ground and underground engineering. Leadcrete is one professional manufacturer and supplier of high speed high shear cement colloidal grout mixer in China.
We also can design the colloidal mixer with agitator for our costomers, to make the mixing work can continuously be done.

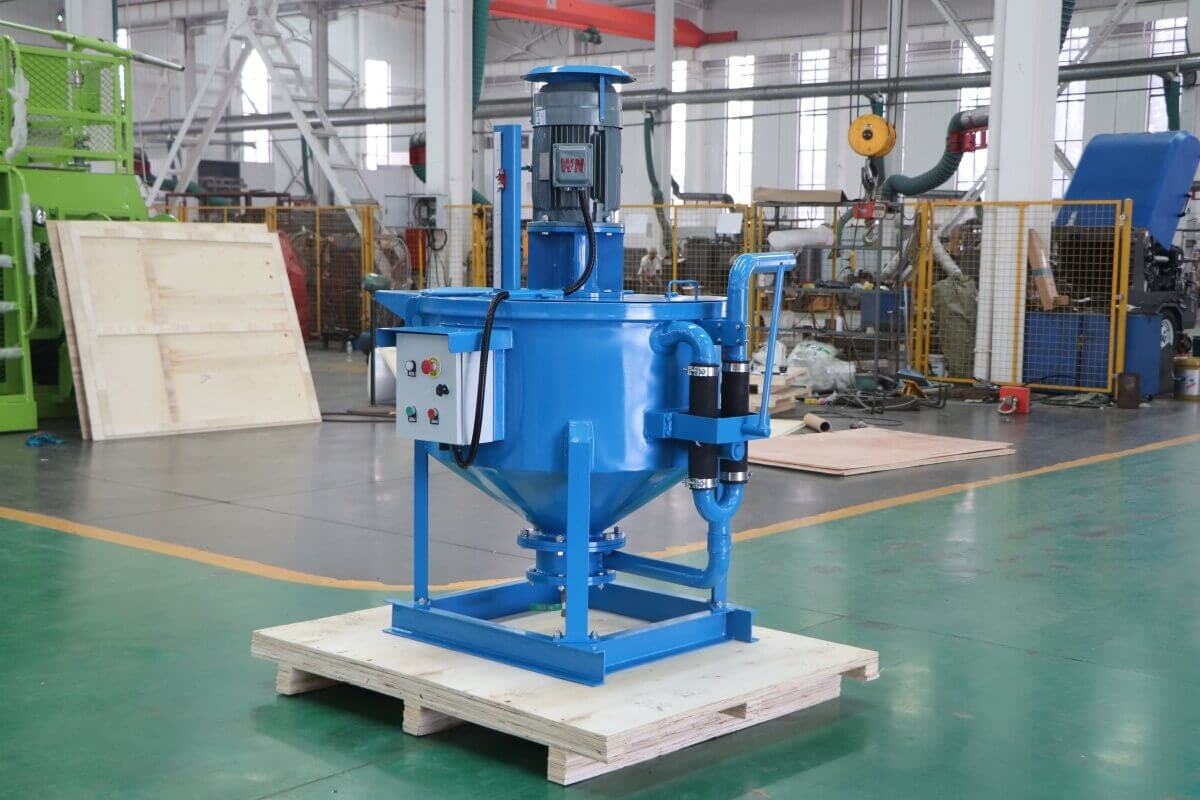

High Shear Grout Mixer (Colloidal Type) exporter


 Application:

LM300E colloidal grout mixer has been designed for use either in conjunction with a conventional paddle mixer and pump or, by virtue of its own built in impeller pump, as a stand-alone mix and place machine. Grout mixer is widely used for engineering department of water resource and electric power, coal, railway, traffic, construction, mine etc. Grout mixer ould mix water, cement, bentonite, sand and other additives rapidly. The high shear colloidal grout mixer also is used in grouting construction to mix slurry specially.


 Features:

The high shear colloidal grout mixer  will rapidly and efficiently mix various types of grout which can include cement, bentonite and sand. It is specially design for cement mixing and grouting in ground and underground engineering. We also can design the mixer with agitator, to make the mixing work can continuously be done.

impeller of high speed grout mixer

Leadcrete has its own technical team and with research and development ability, Leadcrete can supply suitable type high shear grout mixer and the best price of colloidal grout mixer. Now have about seven types grout mixer for option, and we also could customized suitable grout mixer for you.
We will offer you according to your demands on the engine and capacity. We also could customized high speed cement grout mixer for you.

In order to offer suitable type and quote about the grout mixer for you soon, please tell us following points in your inquiry. So please tell us your demands on high shear colloidal grout mixer such as:

1. What material will you mixing?
2. What's the W/C ratio? >0.45:1?
3. What's the capacity do you need, 750L, 500L, 400L, 100L or more bigger?
4. Would you like the grout mixer machine with electric motor or diesel engine? If want the grout mixer machine with electric motor, what’s the voltage at the worksite, 3 phase, 380V, 50HZ or other?
5. Do you have any requirement on the grout mixer machine color? Usually our grout mixer  is yellow, blue, white, if you want other color, also please tell us the color code.

Once confirm the answers of above question, suitable type
high speed cement grout mixer and the best grout mixer price both will be at first time.
■Product Details
colloidal grout mixer mixing method

Colloidal grout mixer mixing method

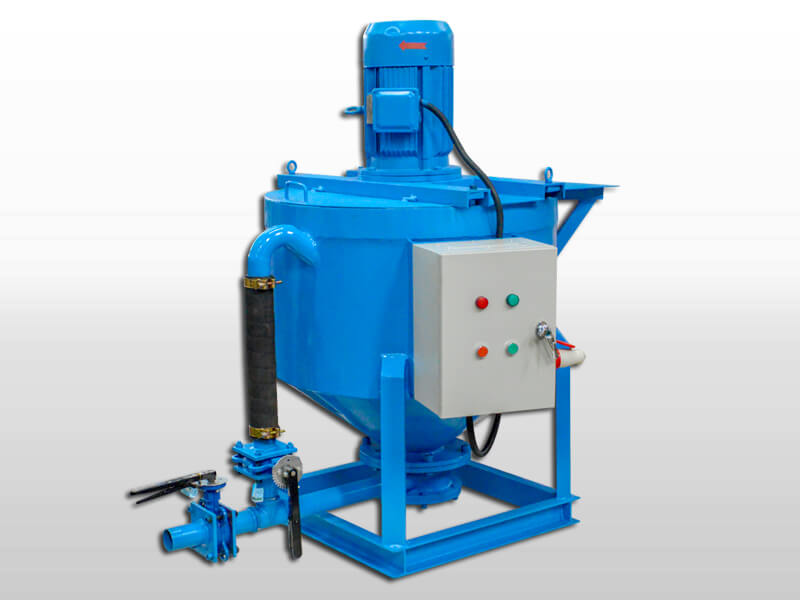

colloidal grout mixer

Colloidal grout mixer details

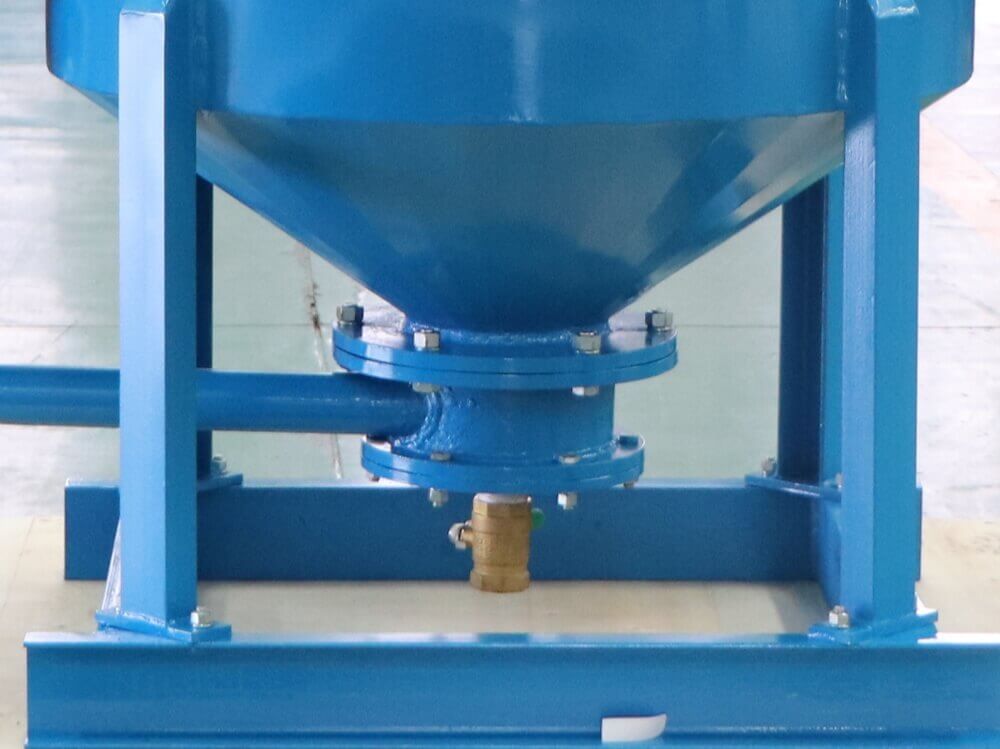

high speed cement grout mixer

High speed cement grout mixer details

high shear grout mixer details

High shear grout mixer details

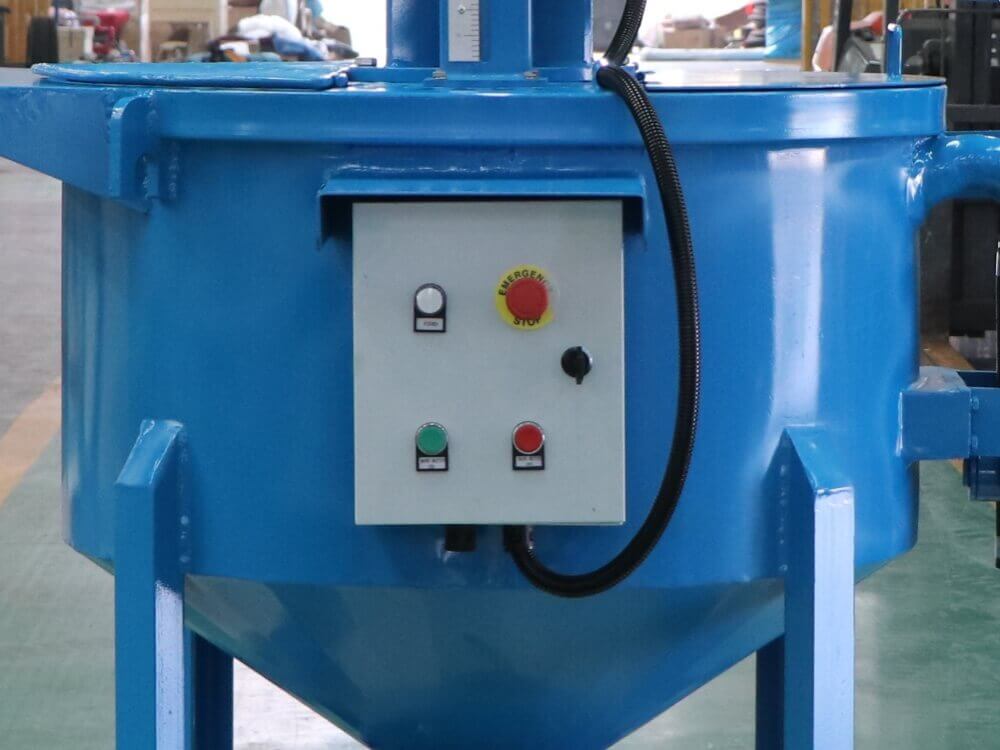

electric high shear grout mixer

Electric high shear grout mixer details

electric colloidal grout mixer

Electric colloidal grout mixer details

■Technical Parameters

 Item

Technical data
Capacity 300L
Output

1000L/min(is metered by water)

Impeller speed 1450rpm
Power 7.5KW
Voltage 3 phase, 380V, 50HZ
Dimension 1250x1050x1800mm
Weight 280kg

We can provide you with customized high shear high speed grout mixer (colloidal type) services to you!
