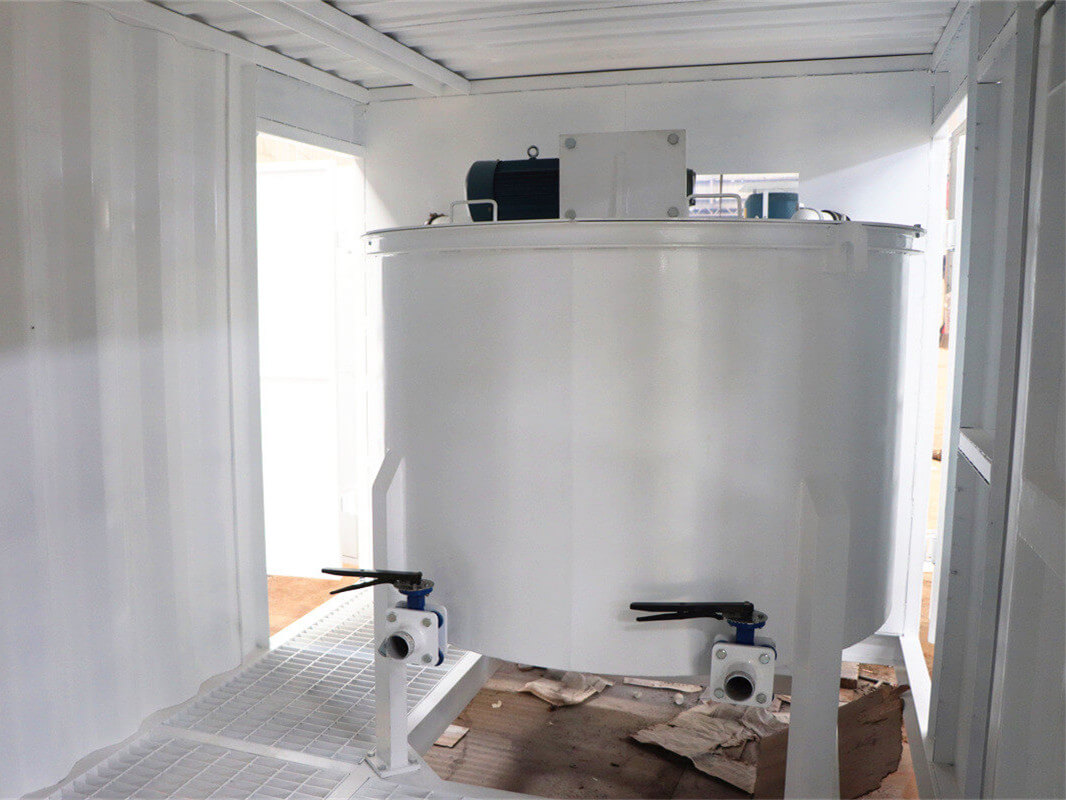

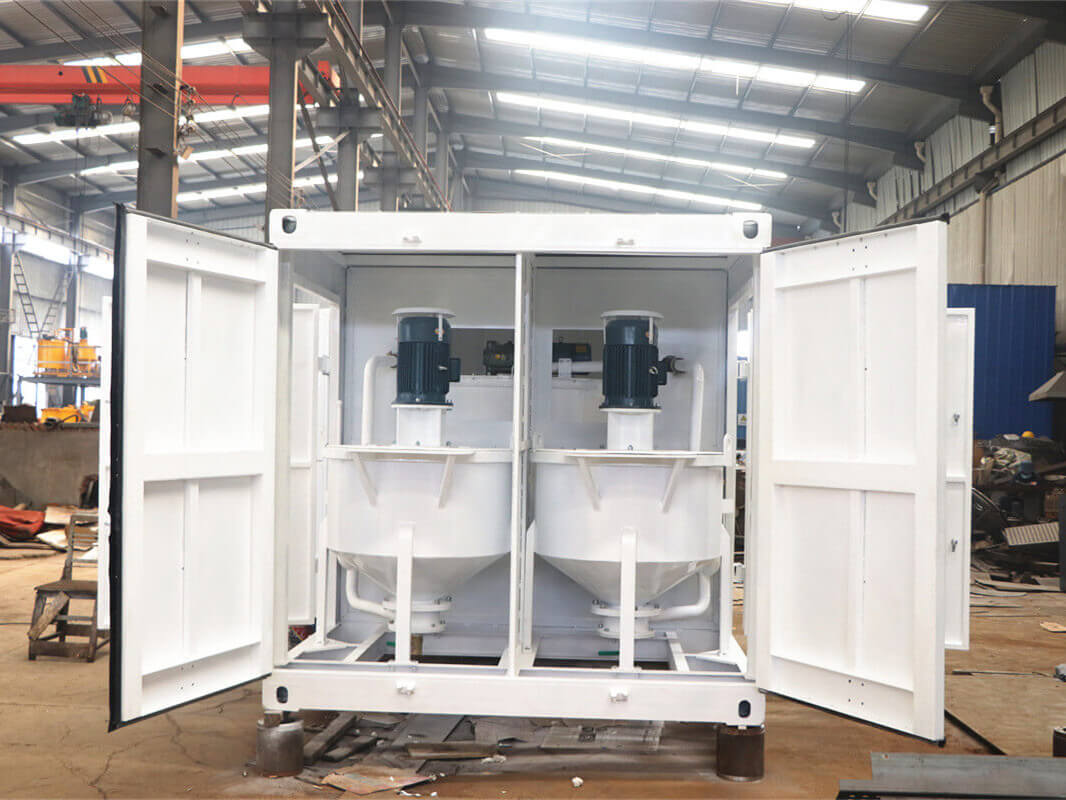

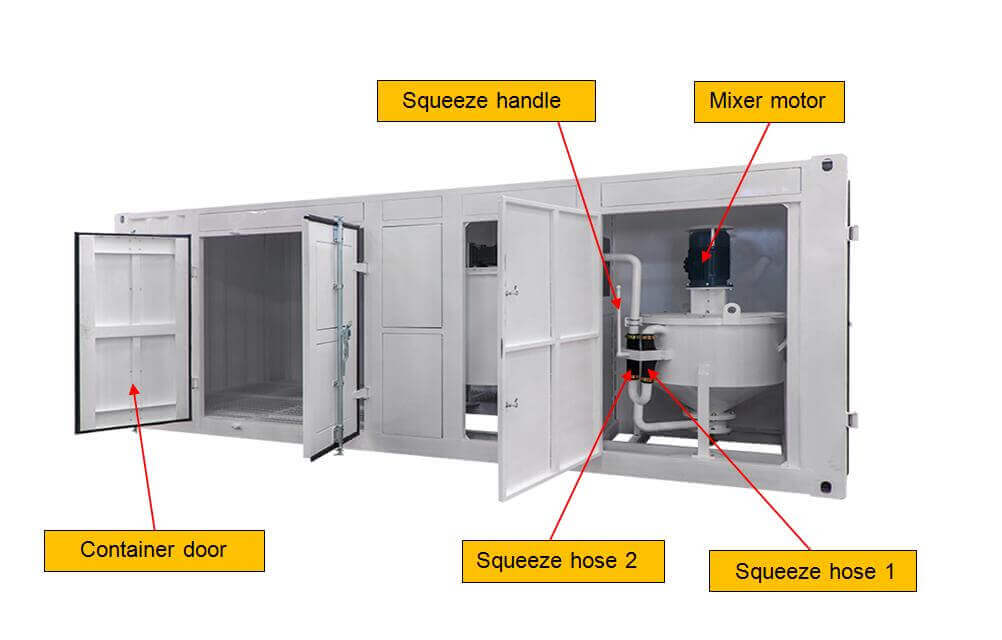

LMA2X300/1000 is a container-type cement grout mixer, which houses two high-speed cement mixers with a capacity of 300L and an agitator with a capacity of 1000L. A high-speed eddy current mixer ensures fast and even mixing, water and cement are quickly mixed into a uniform slurry. The entire machine is installed in a container, the structure is compact, and the transportation is very convenient. Under the harsh work conditions in the wild, the container can protect the machine and bring a better experience.
► Application:
LMA2X300/1000 Container type cement grout mixer is used for making cement bentonite slurry, etc., which is applied to surface/underground construction, such as highway, railway, hydropower, construction, mining, etc.
► Features:
1. High speed vortex mixer ensures mix quickly and evenly.
2. Simple operation and easy maintenance.
3. The proportion of materials in the formula can be adjusted freely.
4. Less spare parts ensure low maintenance costs.
5. Compact structure.
6. Convenient transportation.
Name |
Data |
|
Model |
LMA2X300/1000 Container type cement grout mixer |
|
NO. 1 Mixer |
Capacity |
300L |
W/C ratio |
0.5~1 |
|
Rate Rev. |
1450 rpm |
|
Power |
7.5Kw |
|
NO. 2 Mixer |
Capacity |
300L |
W/C ratio |
0.5~1 |
|
Rate Rev. |
1450 rpm |
|
Power |
7.5Kw |
|
Agitator |
Capacity |
1000L |
Rate Rev. |
36 rpm |
|
Power |
3Kw |
|
Power requirements |
Voltage 3 Phase 380V, 60Hz |
|
Dimension |
5700×2170×2160mm |
|
Weight |
3250Kg |
|
We can also customize container type cement grout mixers according to your needs. |
