Your Position: Home > Products > Grout Mixer and Agitator

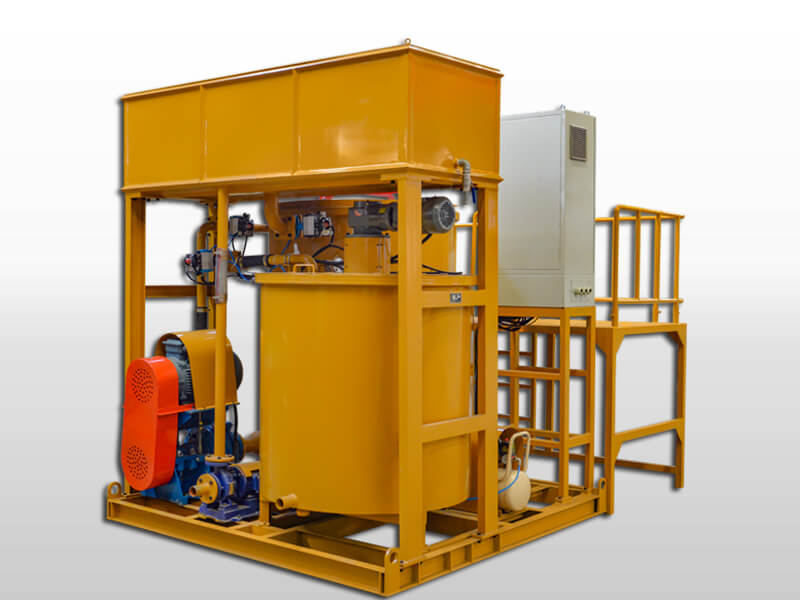

LMA1500-1200E Turbo mix cement slurry grout mixer

  • Model: LMA1500-1200E
  • Output: 15~18m3/h
  • Mixer Volume: 1500
  • Agitator Volume: 1200L
  • Motor Power: 15+3 Kw
  • Mixer Dimension: 2230×2340×2630mm

  • grout mixer for cement slurry
  • cement slurry colloidal grout mixer
  • cement slurry grout mixer
  • colloidal grout mixer for cement slurry
  • grout Turbo Mixer Agitator
  • turbo mix cement slurry grout mixer
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

Description:
LMA1500-1200E Turbo mix cement slurry grout mixer is a combination consist of a steel sheet cylindrical mixer tank heavy-duty slurry pump and agitator tank, set-up on a strong base frame. This  turbo mix cement slurry grout mixer is equipped with an automatic control system that can automatically control the operation of the equipment. The slurry is mixed through a high speed vortex produced by a special pump which, after sucking the material from the bottom of the mixer tank, sends it back tangentially into the same tank in order to get highest possible efficiency. By this process it is possible to obtain homogeneous colloidal and high quality mixtures within a very short period of time. After mixing, this mixtures are pumped into the agitator tank with slow speed mixing paddles by the above same pump.When all the mixture in the mixing tank is pumped out, press the discharge completion button to start the next cycle of pulping. We can supply many types cement slurry grout mixer for sale, any need you can contact us freely. Email address: sales@leadcrete.com

Application:
LMA1500-1200E cement slurry grout mixer is mainly used in the preparation of cement slurry. It can be used in combination with grouting pump, and can be used in tunnel, mining, culvert, subway, dam foundation, soil compaction, earth and rock grouting, waterproof, earth anchor, rock hydrant, enclosure, back tension and hydropower project, grouting excavation under under underground pressure, etc.


 Features:

1. This cement slurry colloidal grout mixer is simple structure, easy assemble.

2. Colloidal grout mixer and agitator switch by using butterfly valve, simple to operate.

3. Less spare parts of LMA1500-1200E turbo mixer, low maintenance, lower using cost.

4. High speed mixing and high efficiency to achieve continuous mixing, mixing time just about 1-2 minutes.

5. Such cement slurry mixers are most suitable for job sites with restricted access or limited depolyment space.

6. Automatic control, simple operation, saving labor, great reliability.

■Product Details
touch screen intelligent control equipment

Touch screen intelligent control equipment

intelligent control turbo mixer agitator

Intelligent control turbo mixer agitator

electric control cabinet of grout mixer

Electric control cabinet of grout mixer

electric control cabinet

Electric control cabine

turbo mixer and agitator

Turbo mixer and agitator

Large turbo mixer and agitator

Large turbo mixer and agitator

■Technical Parameters
Model LMA1500-1200E Turbo mix cement slurry grout mixer
Engine Electric motor powered
Output 15~18m3/h
Mixer Volume 1500L
Agitator Volume 1200L
Motor Power 15+3 Kw
Mixer/Agitator Dimension 2230×2340×2630mm
Weight 2230kg
Operating platform Dimension 2210×1200×2010mm
Weight 220kg
We reserve the right to change technical specifications without prior notice.
