Grout station plant for construction grouting

Grout plant is a combination of mixer, agitator and grout pump in one plant. The special mixing effect of cement or bentonite with water is archived in mixer by a high turbulence created in the pump casing. This turbulence with its high shear forces separates the cement or bentonite particles which results in a fully hydrated suspension.

As soon as the mixing process is over, the mixing is transferred into the agitator. The slow stirring paddle prevents the grout from settling out of suspension and removes any air bubbles from the mix. Each machine incorporates mixers and pumps of matched capacity which together with an agitated storage tank enable virtually continuous operation once work has commenced.

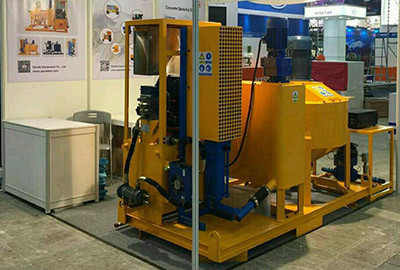

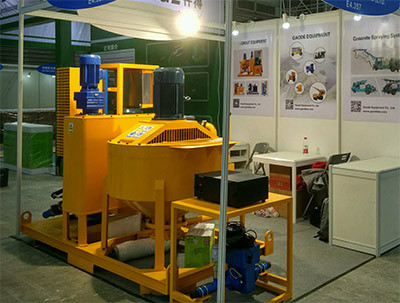

LGP300/300/75PI-E Grout Plant shown in Bauma China 2016 exhibition with a 300L mixer, 300L agitator (cuboid shape which saves much place), adjust flow and pressure (high-speed 0-75L/min, 0-50bar; low-speed 0-38L/min, 0-100bar).

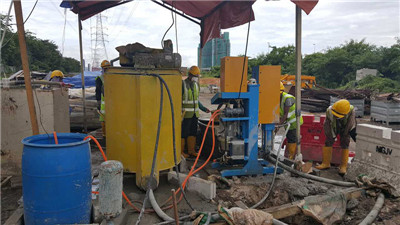

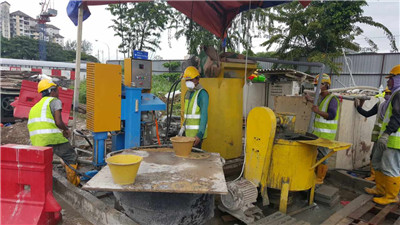

Large grout station and grout pump is widely for continuous cement mixing and grouting in ground and underground engineering, such as highway, railway, hydropower, construction, mining etc.

For more information high-quality and user-friendly grout equipment, please email us.
